Rear Fuse Block

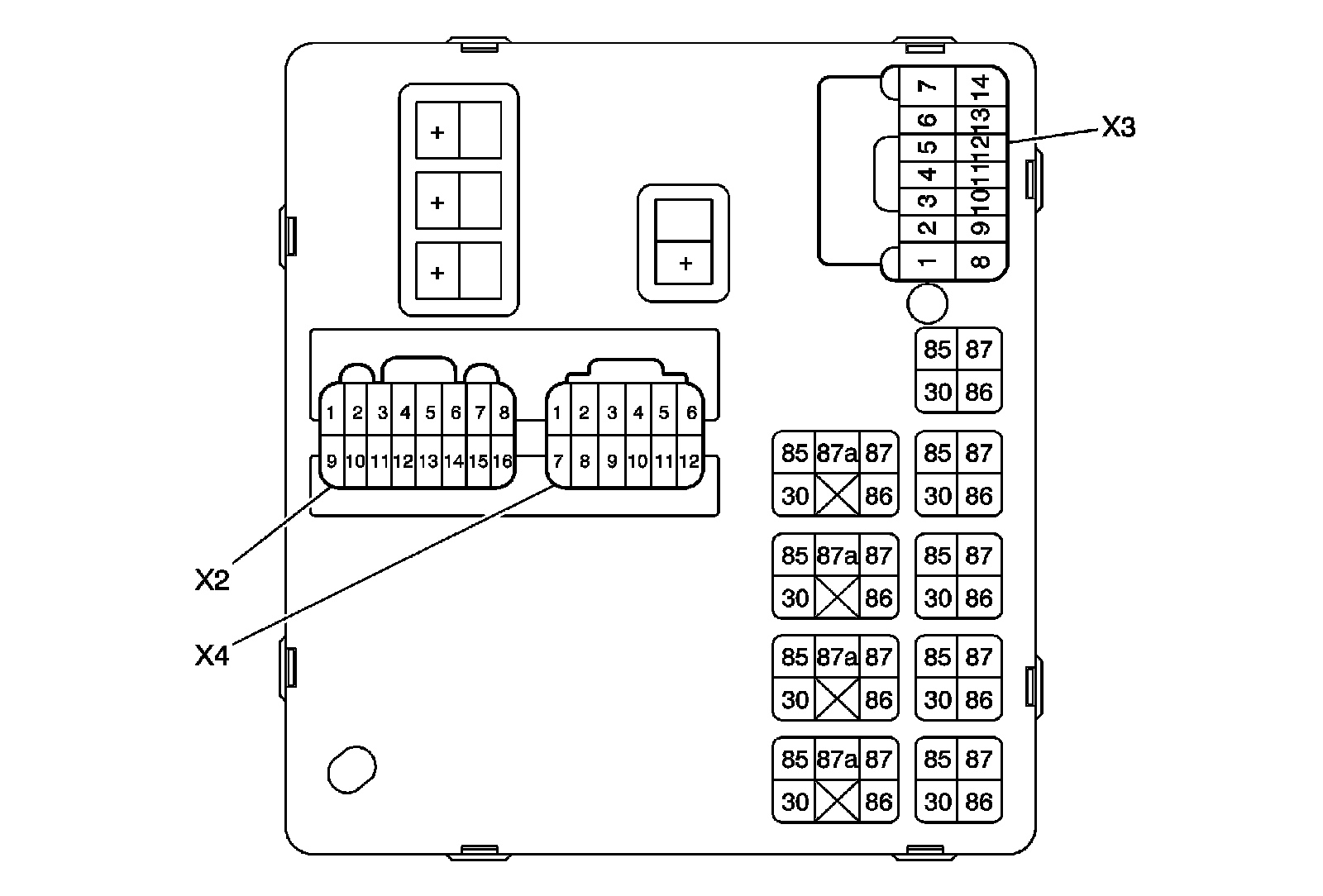

Electrical Center Identification Views

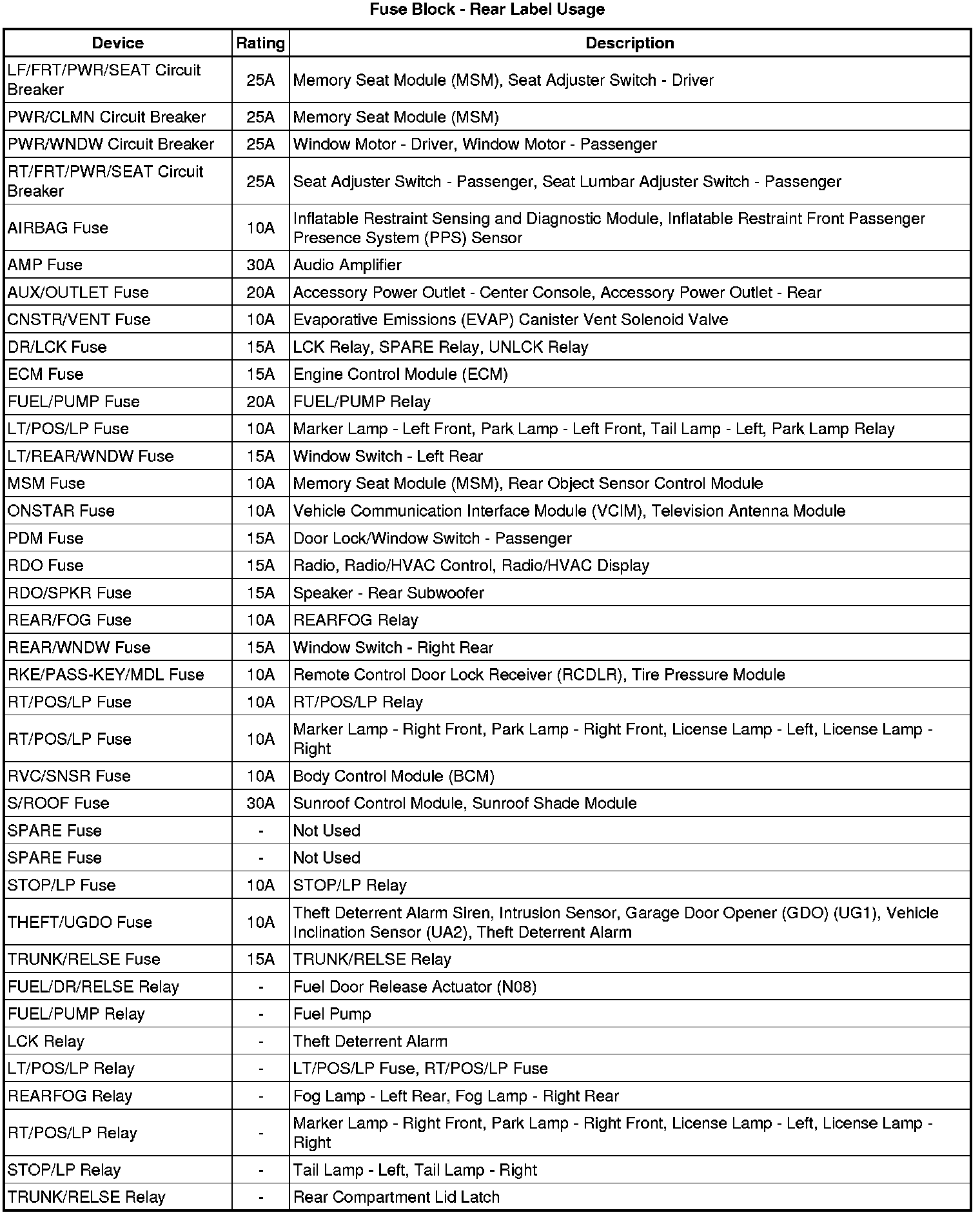

Fuse Block - Rear Label













Fuse Block - Rear Top View





Fuse Block - Rear Bottom View

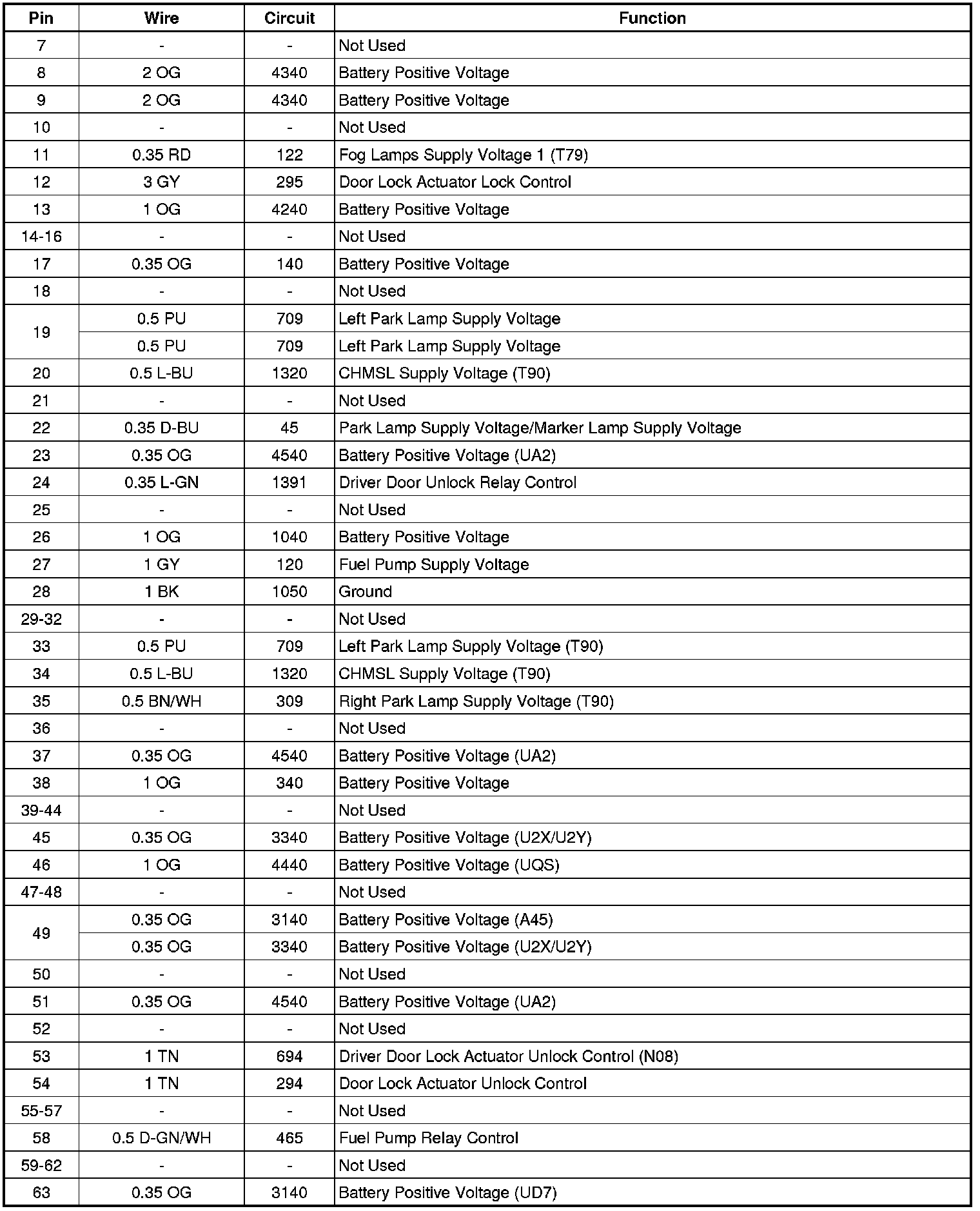

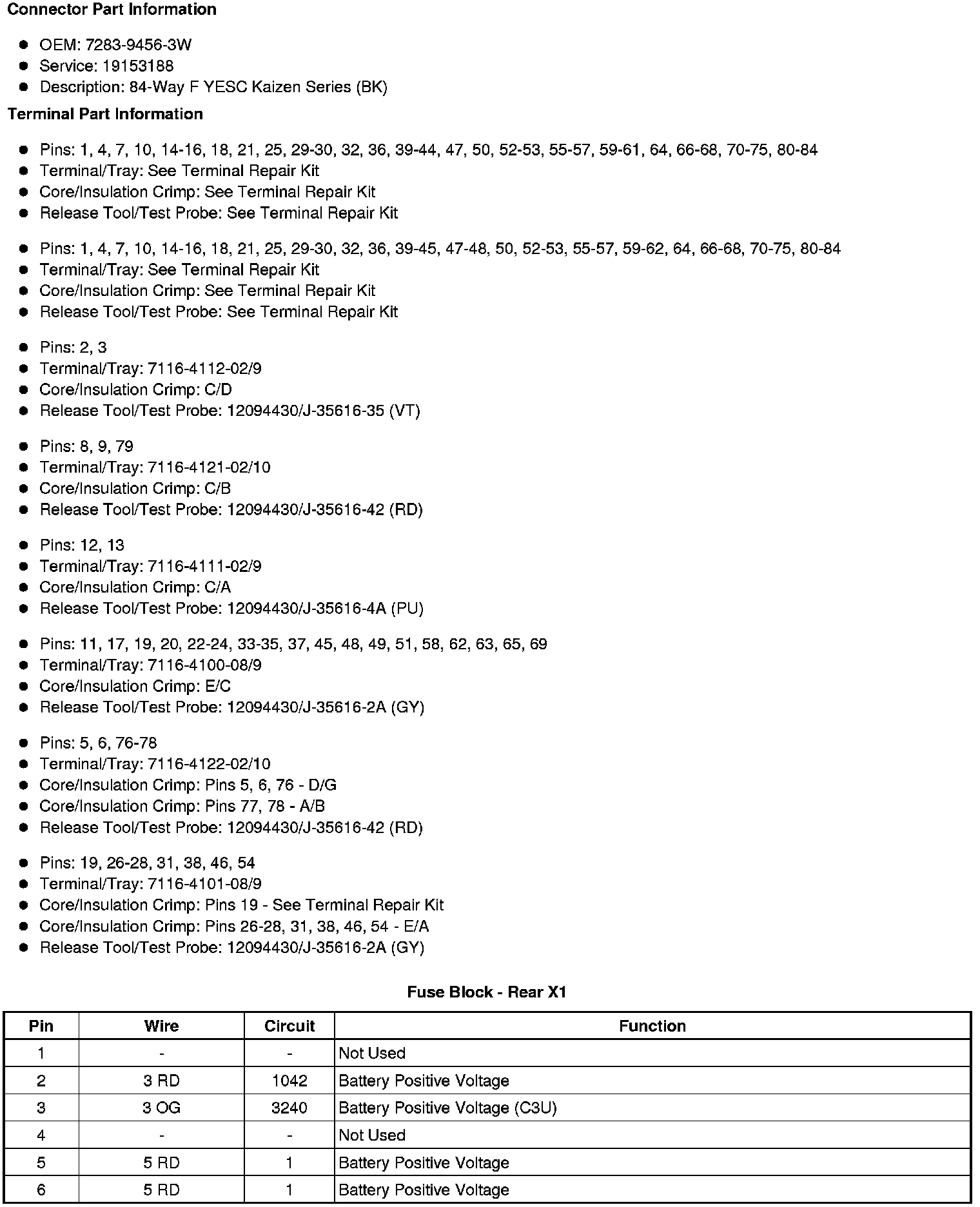

Fuse Block - Rear X1

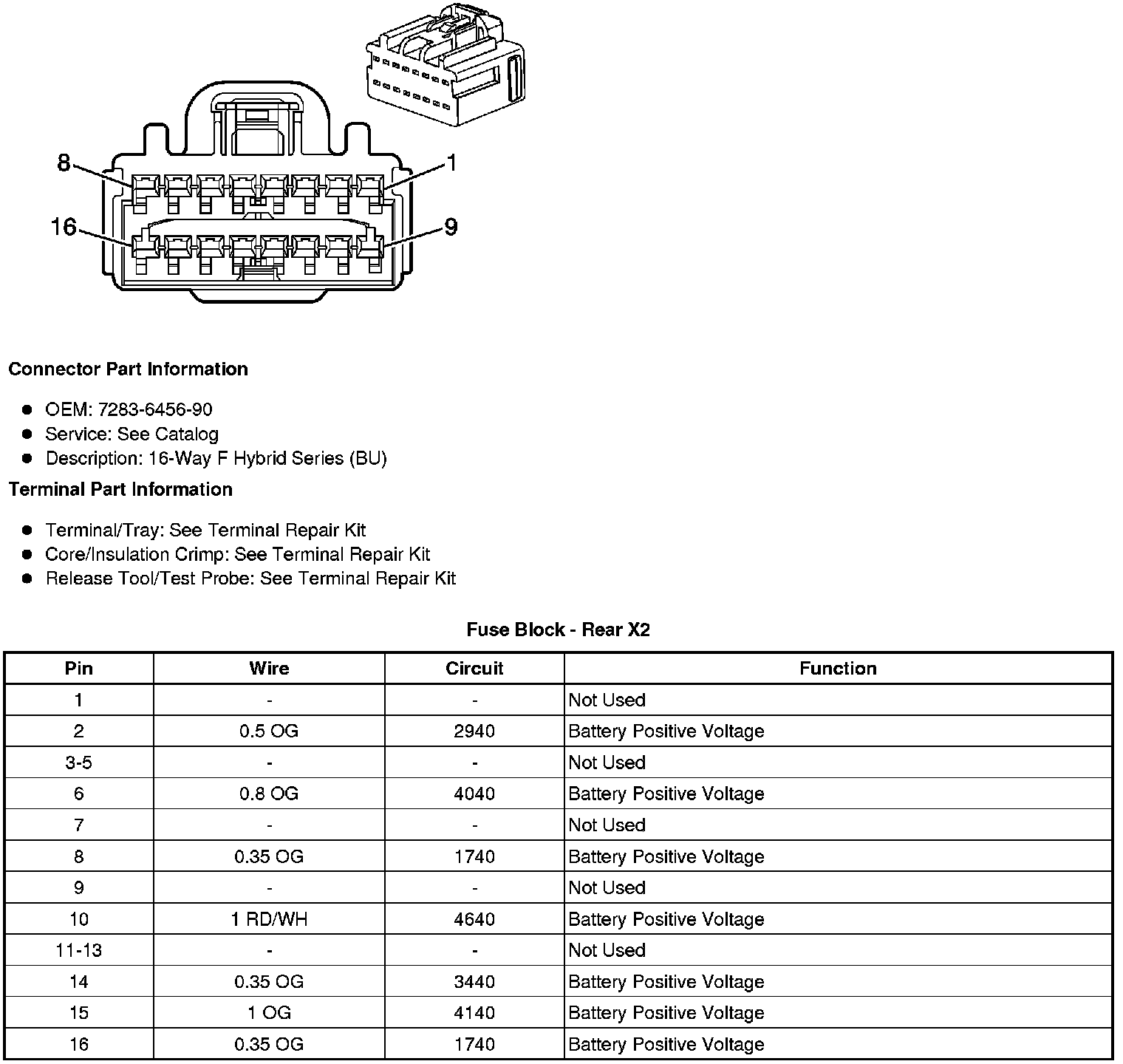

Fuse Block - Rear X2

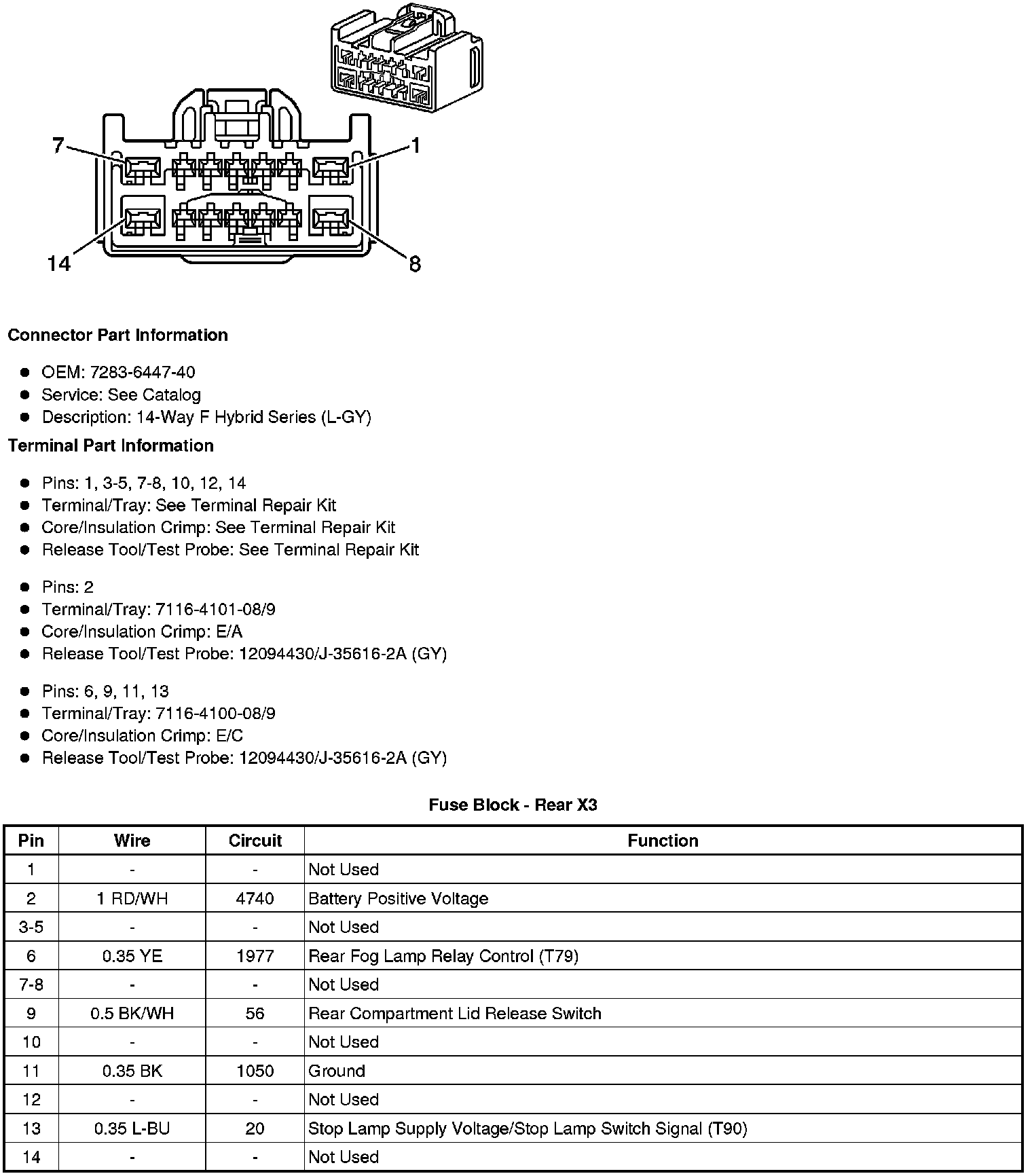

Fuse Block - Rear X3

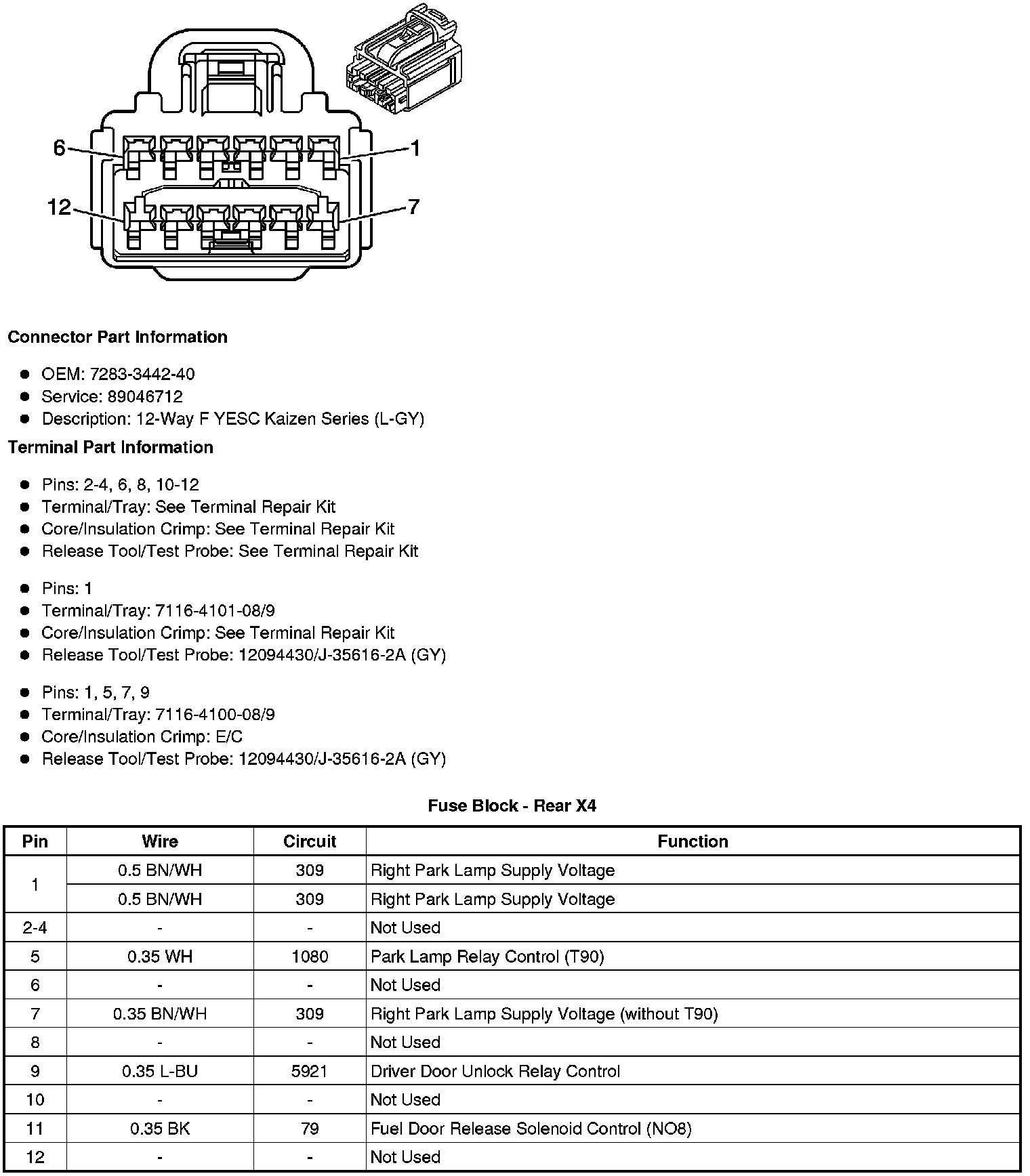

Fuse Block - Rear X4
