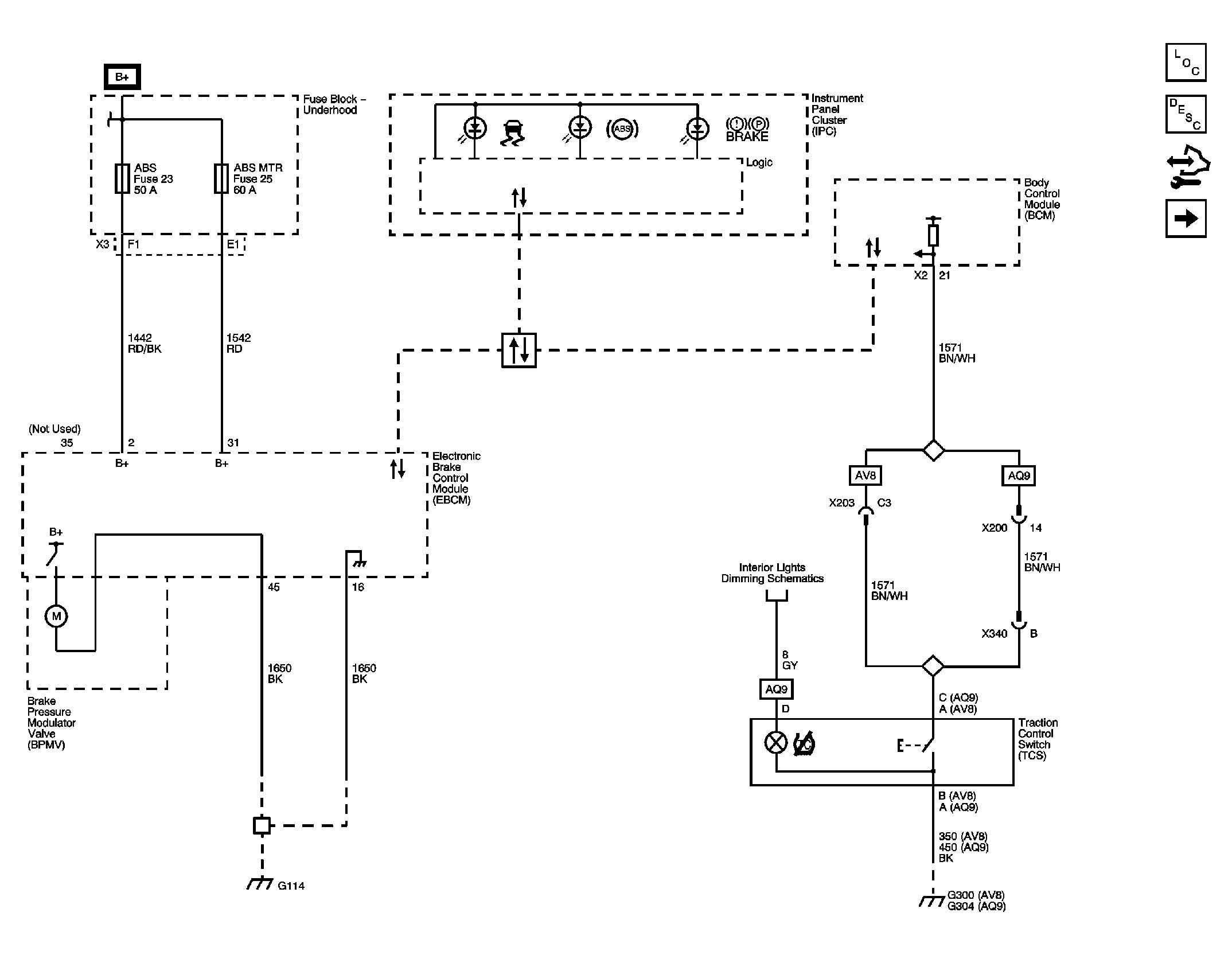

Fig 1: Power, Ground, and Communication
Courtesy of GENERAL MOTORS CORP.

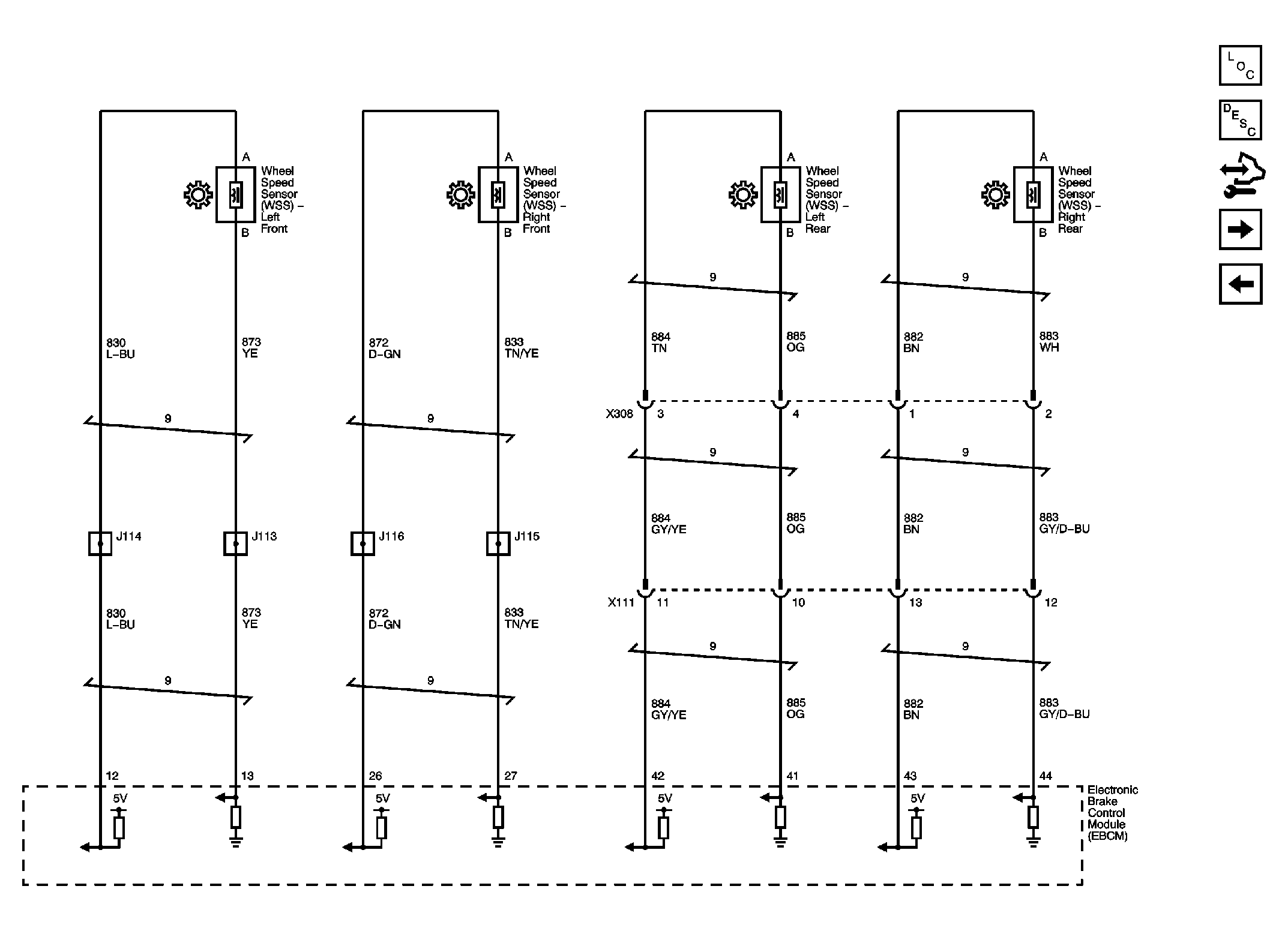

Fig 2: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

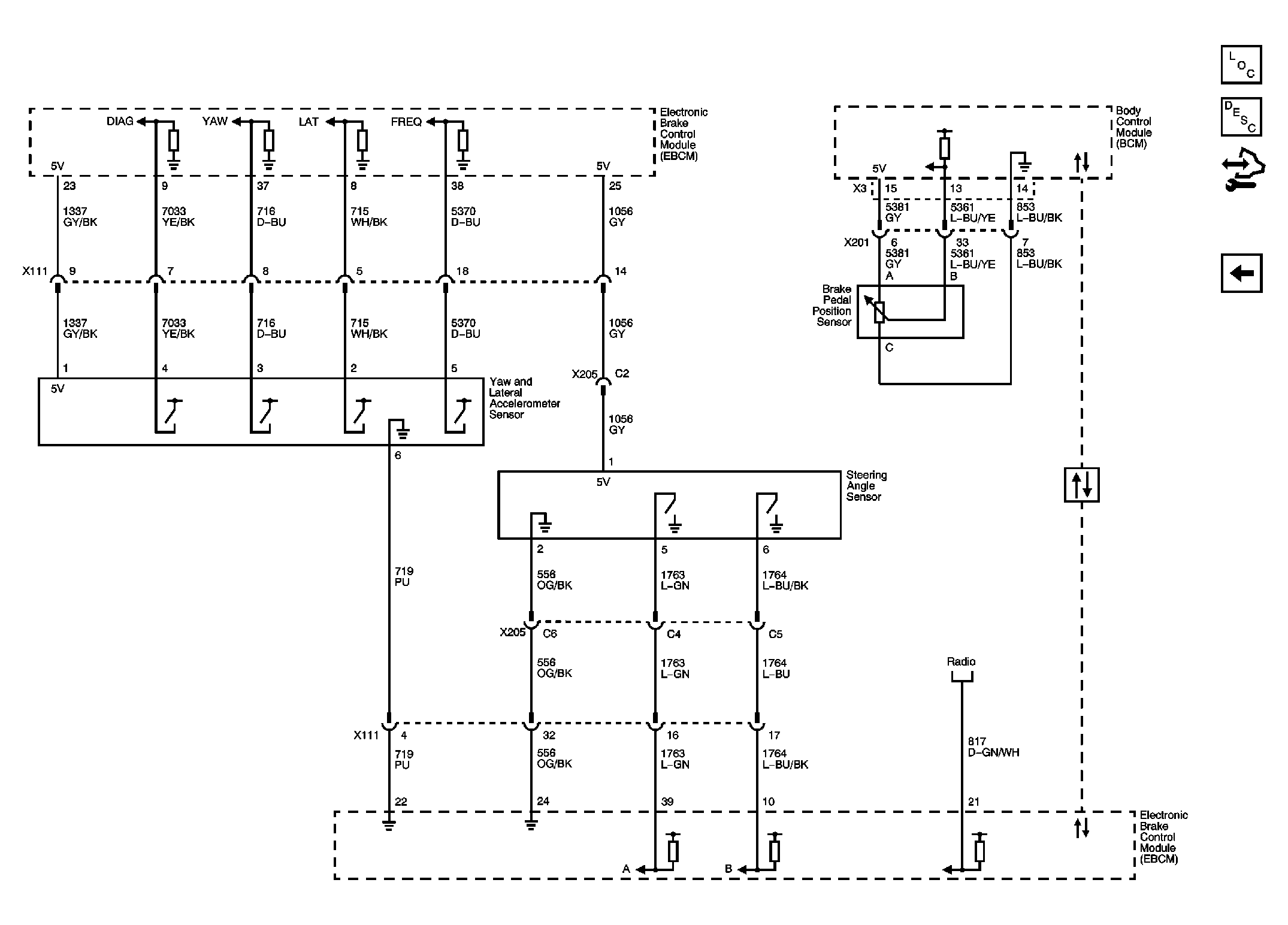

Fig 3: Yaw and Lateral Acceleration, and Steering Angle Sensors
