Rear Window Sunshade Control Module X2 (DE9)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

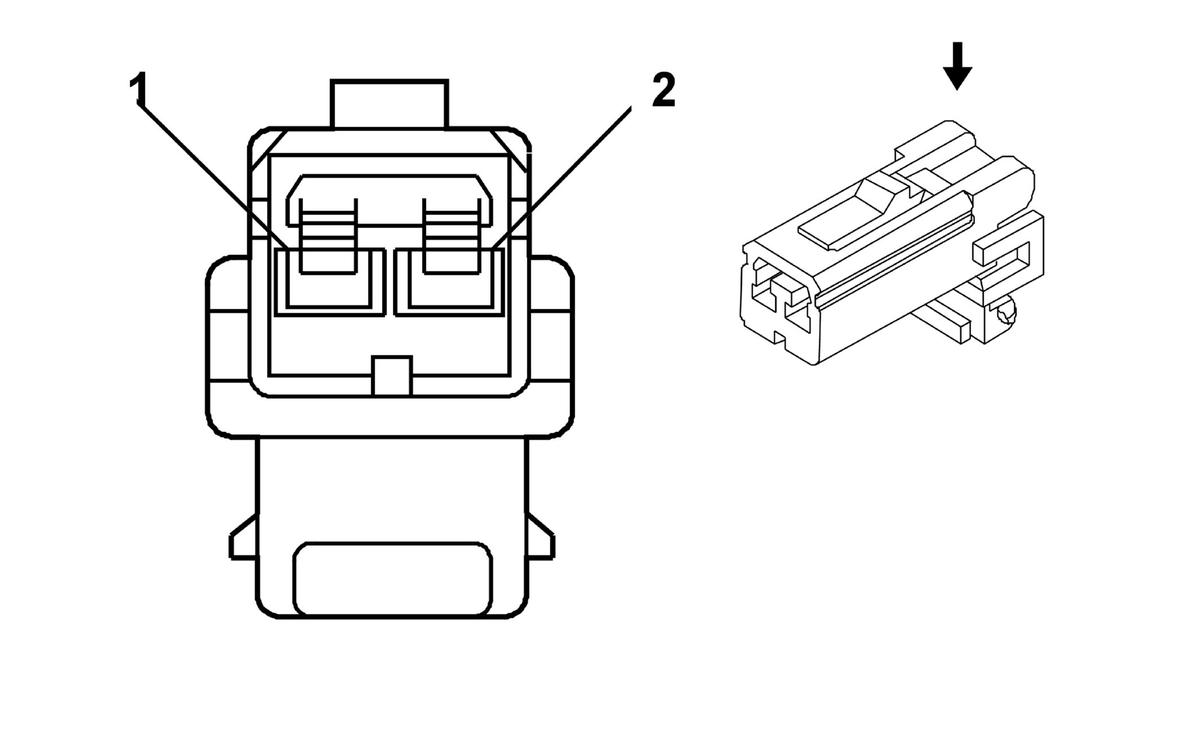

Fig 1: Rear Window Sunshade Control Module X2 (DE9) Connector End View
GM1466986Courtesy of GENERAL MOTORS COMPANY
Rear Window Sunshade Control Module X2 (DE9)

Pin Wire Circuit Function
1 0.8 BK 2328 Sunshade Actuator
2 0.8 D-BU 2327 Sunshade Actuator
Connector Part Information
  • Harness Type: Sunshade Jumper
  • OEM Connector: 174463
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 2-Way F 070 Series Multi-Lock (WH)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
