Seat Front Vertical Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

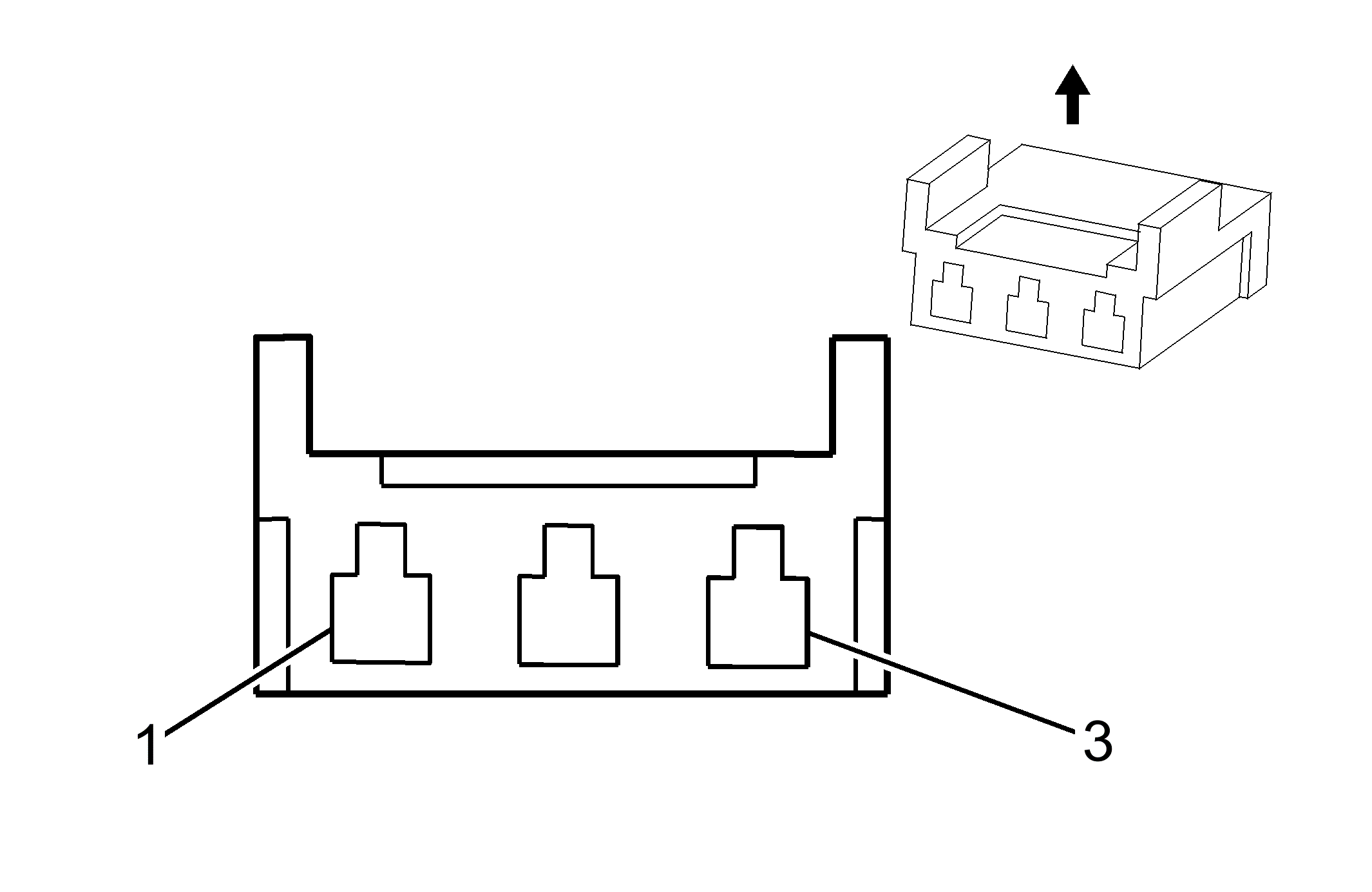

Fig 1: Seat Front Vertical Position Sensor - Driver (A45) Connector End View

Courtesy of GENERAL MOTORS COMPANY

Pin	Wire	Circuit	Function
1	0.35 BK	-	Memory Seat Sensor Low Reference
2	0.35 WH	-	Front Vertical Seat Motor Position Sensor Signal
3	0.35 RD	-	5-Volt Reference

Connector Part Information

Harness Type: Left Front Seat
OEM Connector: See Catalog
Service Connector: Service by Harness - See Part Catalog
Description: 3-Way F (WH)

Terminal Part Information

Terminated Lead: Service by Harness - See Part Catalog
Release Tool: Not Available
Diagnostic Test Probe: Not Available
Terminal/Tray: Not Available
Core/Insulation Crimp: Not Available
