Windshield Washer Fluid Pump

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

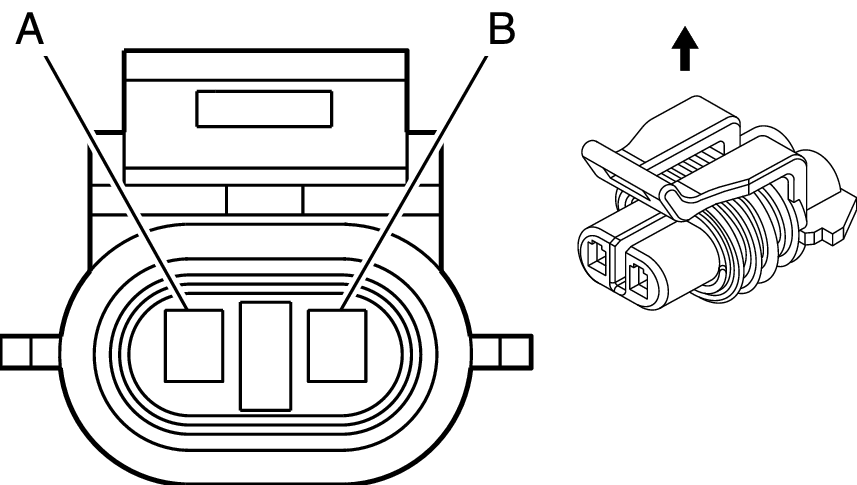

Fig 1: Windshield Washer Fluid Pump Connector End View
GM1676627Courtesy of GENERAL MOTORS COMPANY
Windshield Washer Fluid Pump

Pin Wire Circuit Function
A 0.5 OG 228 Windshield Washer Pump Control
B 0.8 BK 250 Ground
Connector Part Information
  • Harness Type: Forward Lamp
  • OEM Connector: 12186685
  • Service Connector: 12102747
  • Description: 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminated Lead: 13575427
  • Release Tool: J-38125-12A
  • Diagnostic Test Probe: J-35616-14 (GN)
  • Terminal/Tray: 12048074/2
  • Core/Insulation Crimp: E/1
