Engine Cooling Fan - Left

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

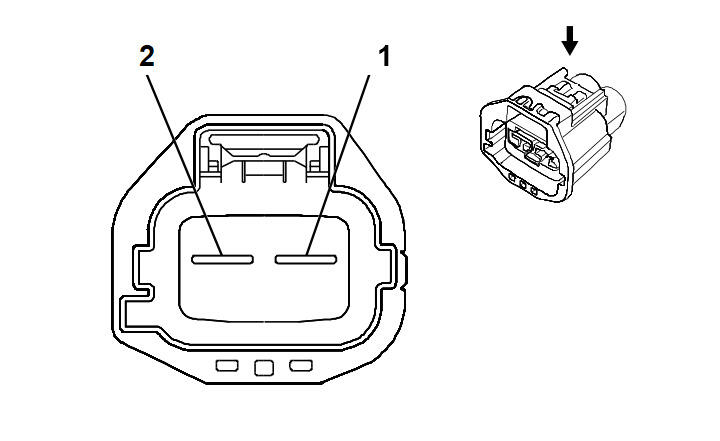

Fig 1: Engine Cooling Fan - Left Connector End View
GM811182Courtesy of GENERAL MOTORS COMPANY
Engine Cooling Fan - Left

Pin Wire Circuit Function
1 3 WH 504 Cooling Fan Low Reference
2 3 GY 532 Cooling Fan Motor Supply Voltage
Connector Part Information
  • Harness Type: Forward Lamp
  • OEM Connector: 7283-5596-10
  • Service Connector: 88953307
  • Description: 2-Way F YESC/USCAR Class III (D-GY)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-42 (RD)
  • Terminal/Tray: 7116-4142-02/10
  • Core/Insulation Crimp: A/3
