Footwell Lamp - Left Front (C97)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

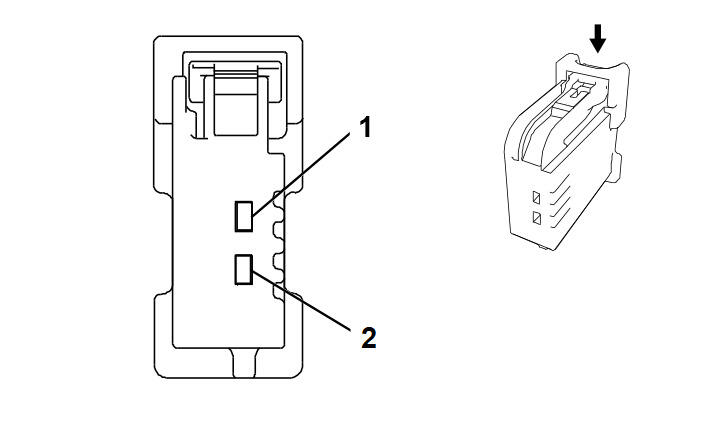

Fig 1: Footwell Lamp - Left Front (C97) Connector End View
GM2173586Courtesy of GENERAL MOTORS COMPANY
Footwell Lamp - Left Front (C97)

Pin Wire Circuit Function
1 0.35 D-GN 957 Backlight Lamp Signal
2 0.35 BK 350 Ground
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 6098-5510
  • Service Connector: 19179373
  • Description: 2-Way F 0.64 Series (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: E/C
