Mode Actuator

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

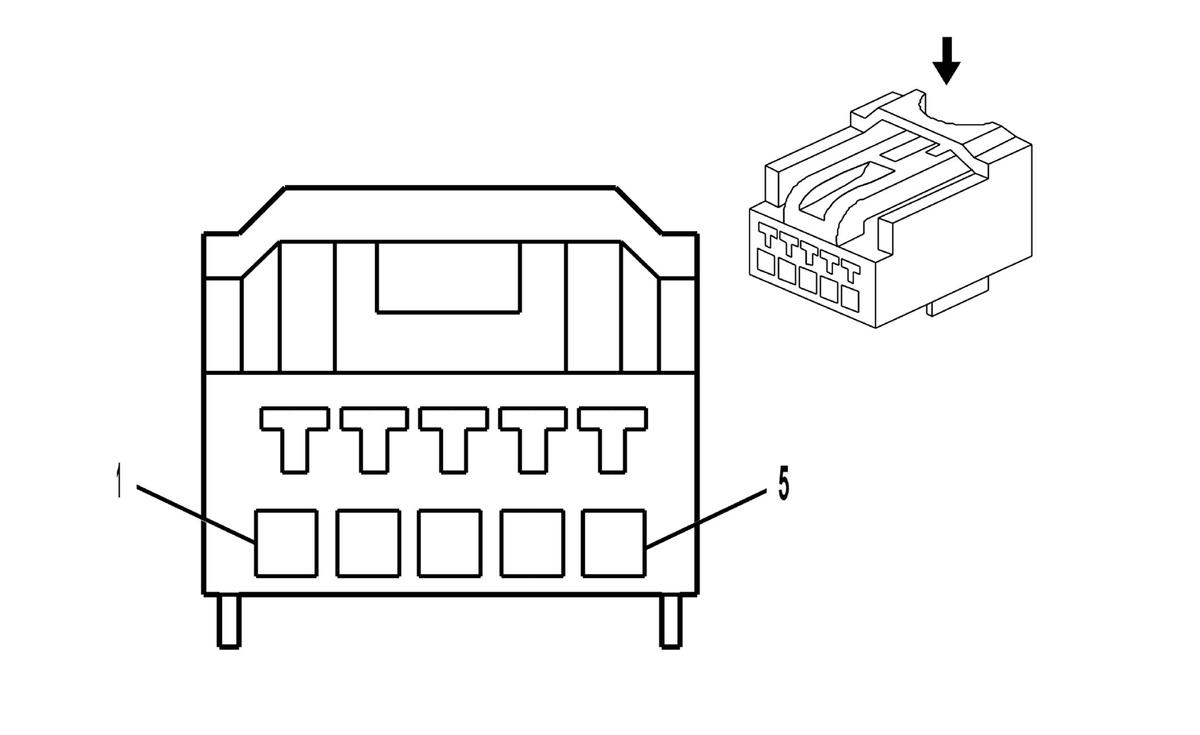

Fig 1: Mode Actuator Connector End View
GM861682Courtesy of GENERAL MOTORS COMPANY
Mode Actuator

Pin Wire Circuit Function
1 0.35 GY 598 5-Volt Reference
2 0.35 GY/BK 1798 Low Reference
3 0.35 YE/BK 1814 Lower Mode Door Position Signal
4 0.35 OG/WH 2273 Mode Door Control A
5 0.35 YE 1318 Lower Mode Door Control B
Connector Part Information
  • Harness Type: HVAC
  • OEM Connector: 7283-5830-30
  • Service Connector: 89046839
  • Description: 5-Way F (BK)
Terminal Part Information
  • Terminated Lead: Service by Harness- See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
