Outside Rearview Mirror Glass - Driver X2
WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

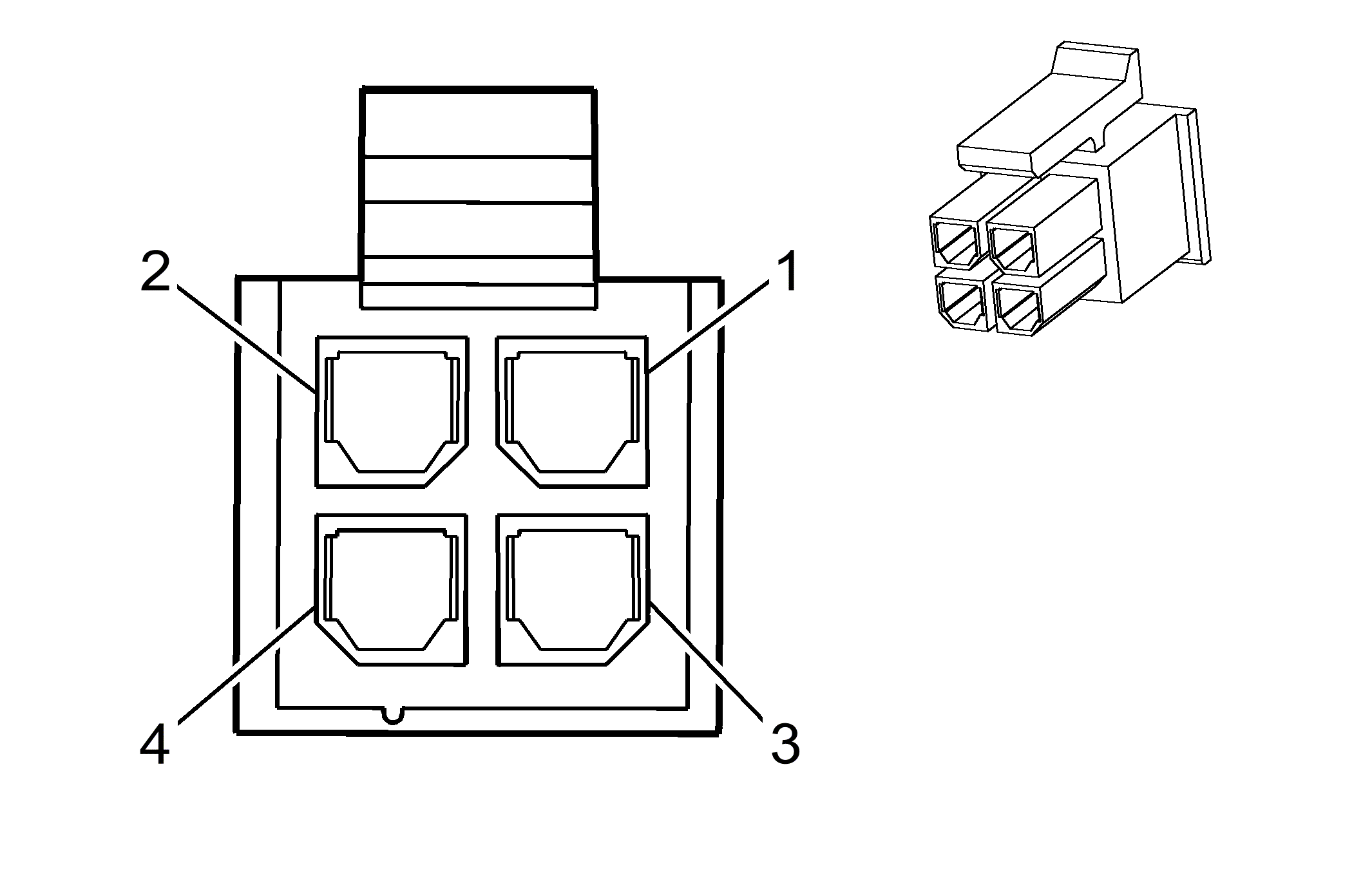

Outside Rearview Mirror Glass - Driver X2
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | GY | - | Turn Signal Lamp Low Reference |
| 2 | - | - | Not Used |
| 3 | D-BU | - | Turn Signal Lamp Supply Voltage |
| 4 | - | - | Not Used |
Connector Part Information
|
Terminal Part Information
|
