Transmission Temperature Sensor/Switch, A/T

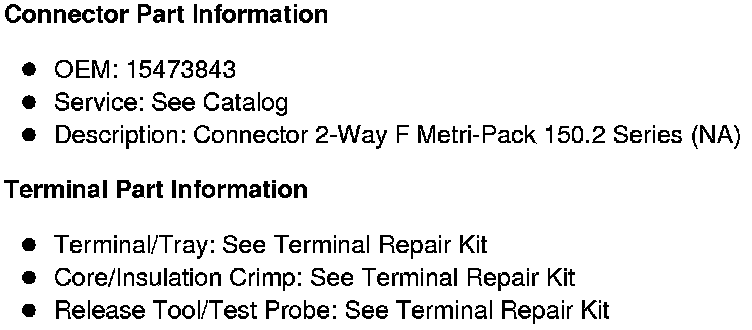

Component Connector End Views

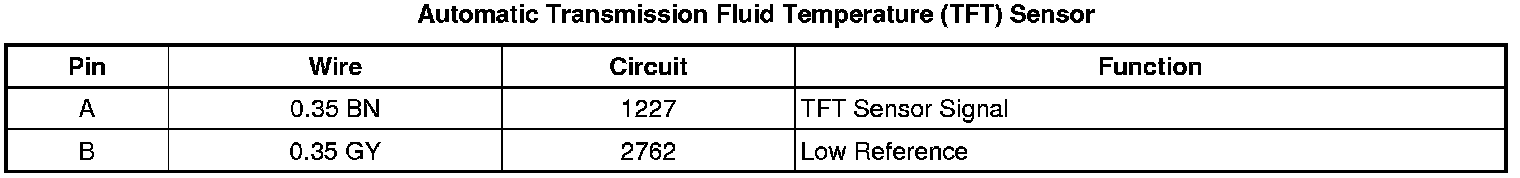

Automatic Transmission Fluid Temperature (TFT) Sensor

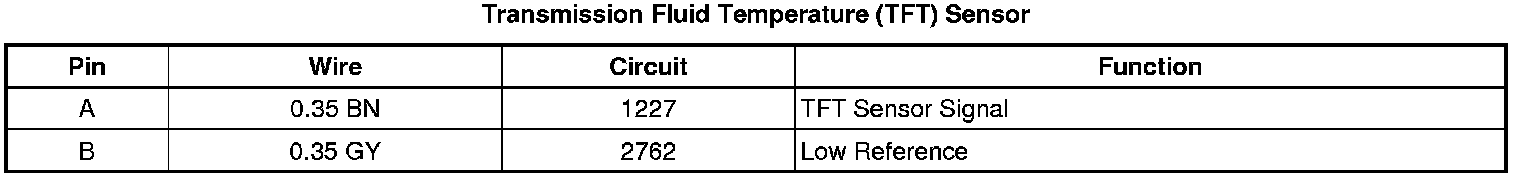

Transmission Fluid Temperature (TFT) Sensor
