Electronic Brake Control Module




Component Connector End Views

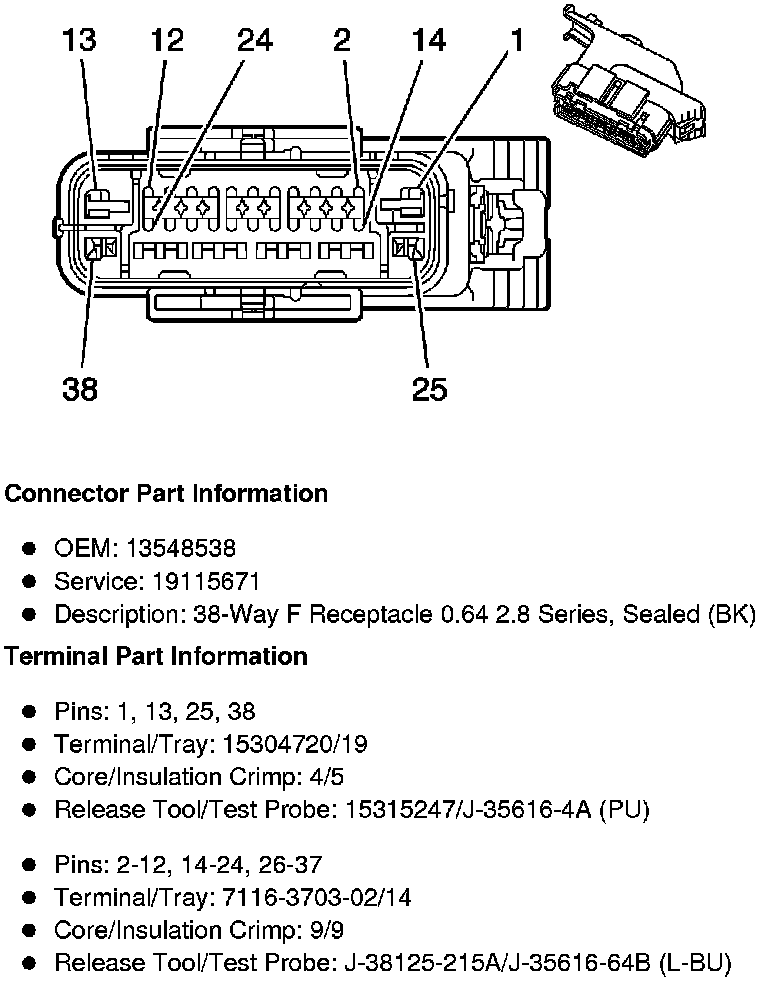

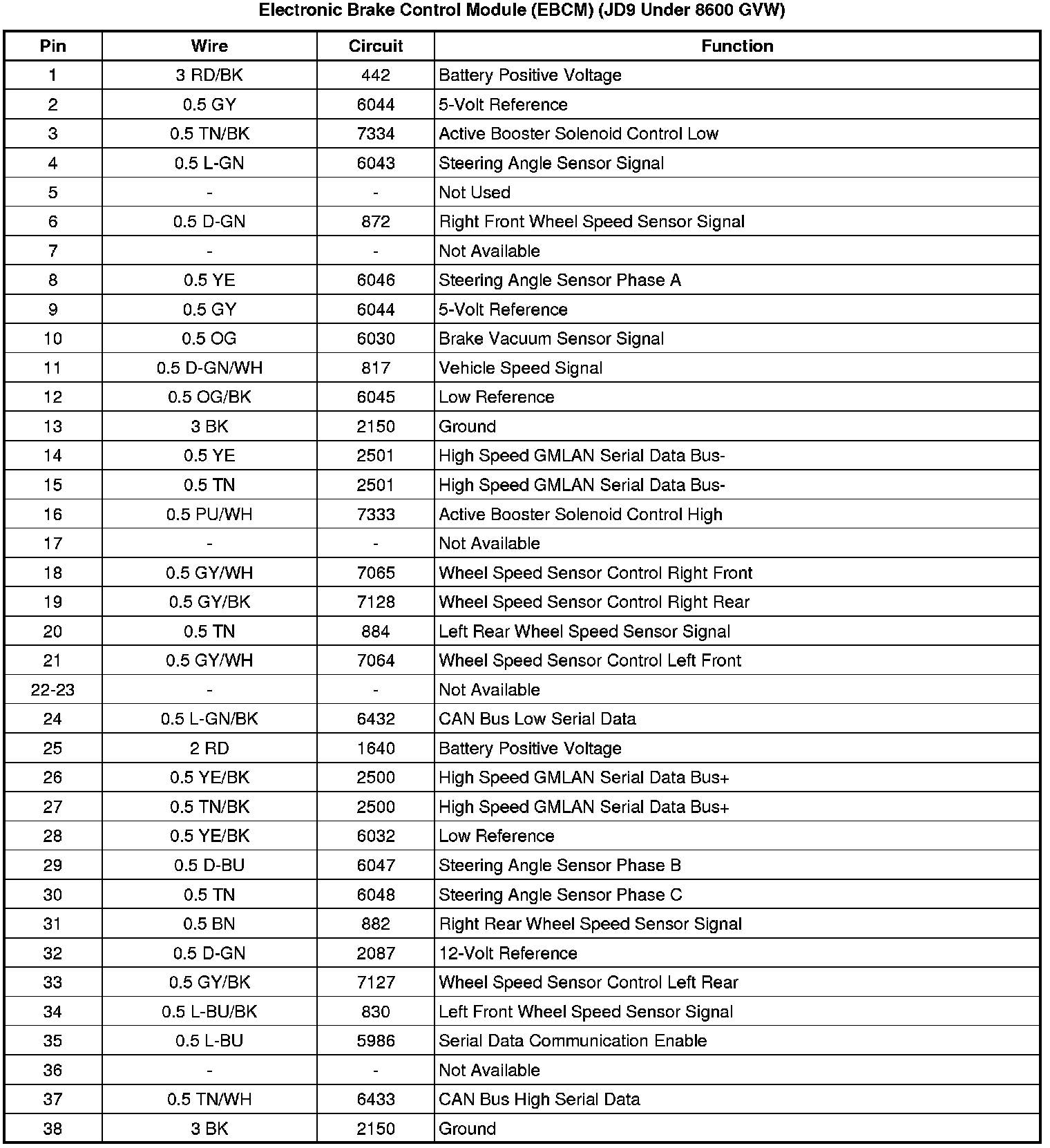

Electronic Brake Control Module (EBCM) (JD9 Under 8600 GVW)

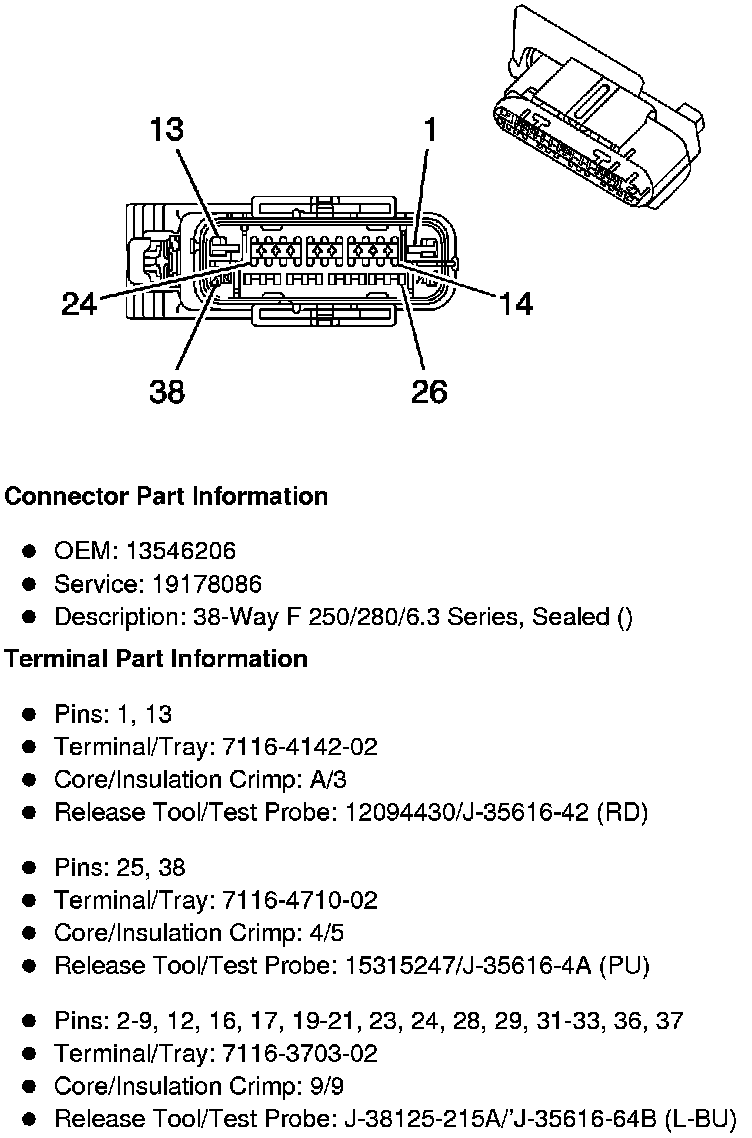

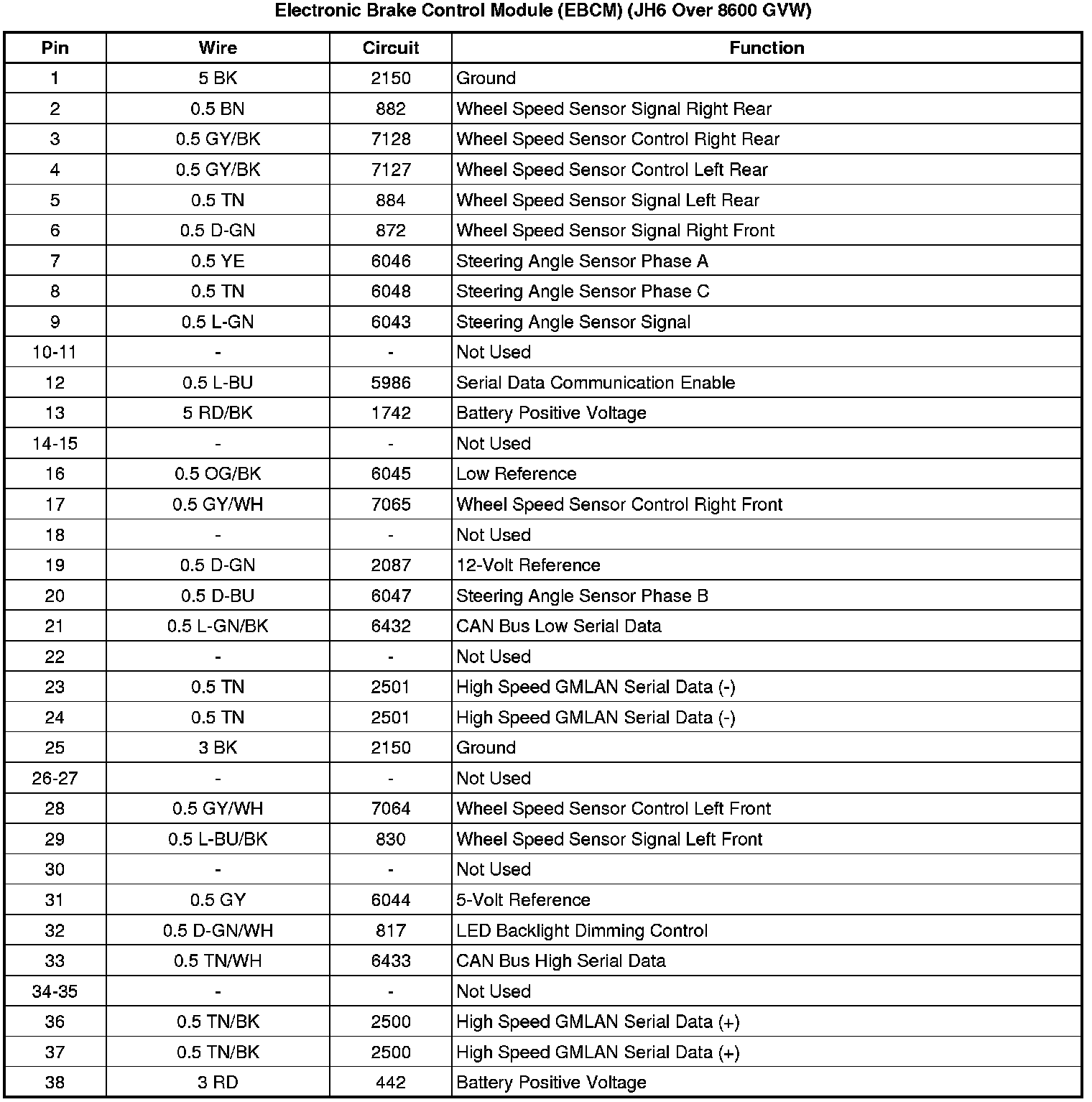

Electronic Brake Control Module (EBCM) (JH6 Over 8600 GVW)
