Parking Assist Control Module




Component Connector End Views

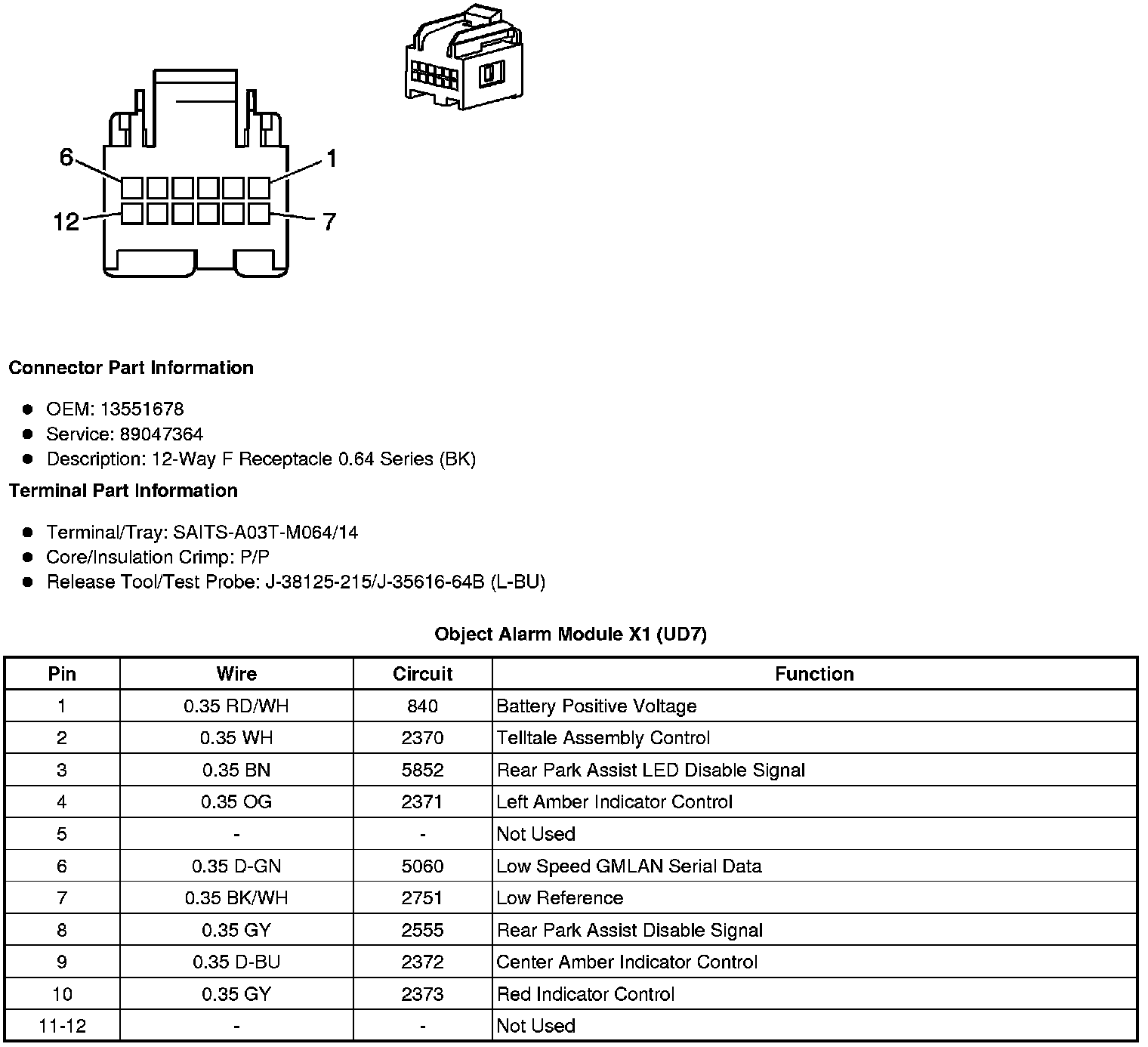

Object Alarm Module X1 (UD7)

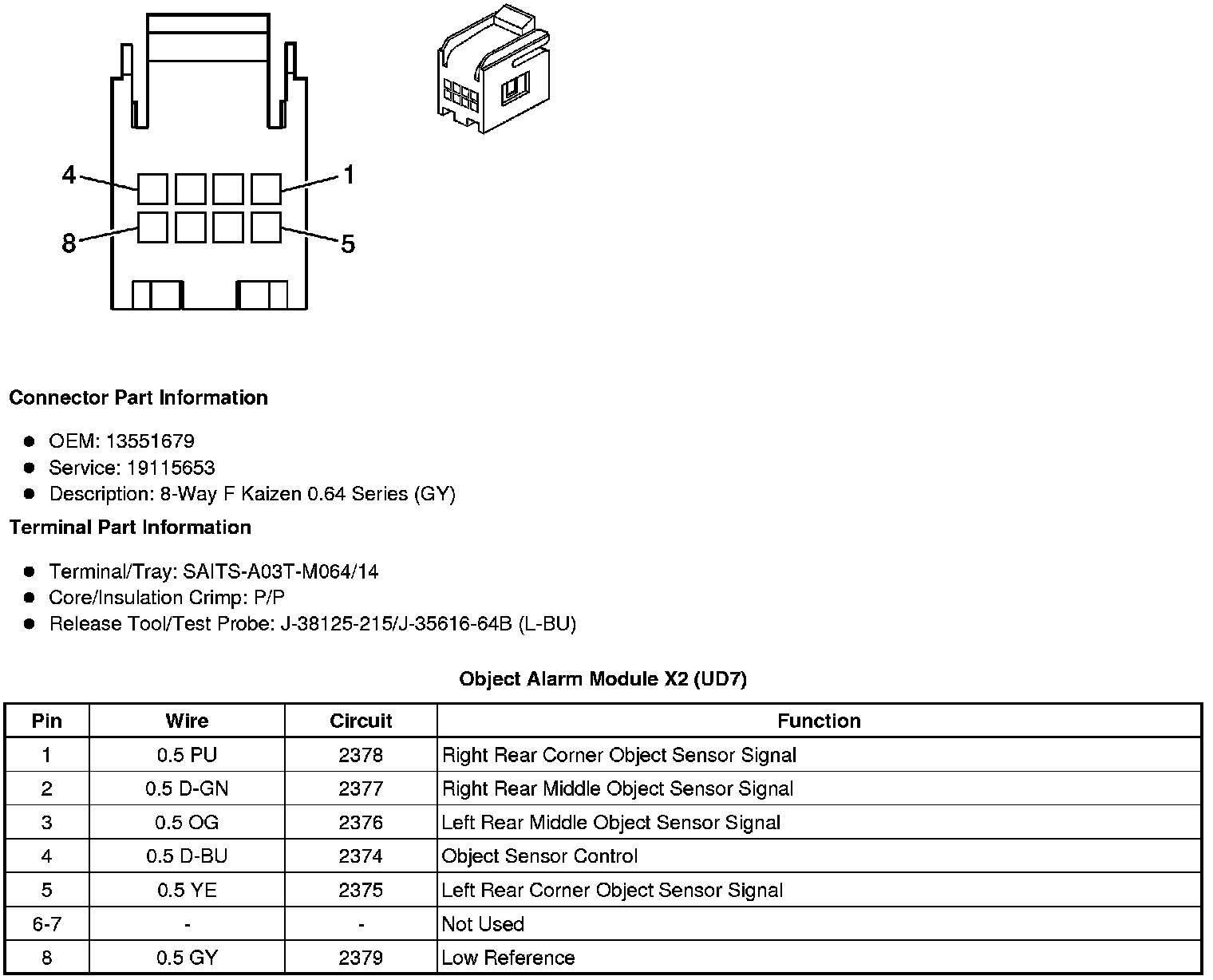

Object Alarm Module X2 (UD7)
