Air Flow Meter/Sensor: Locations

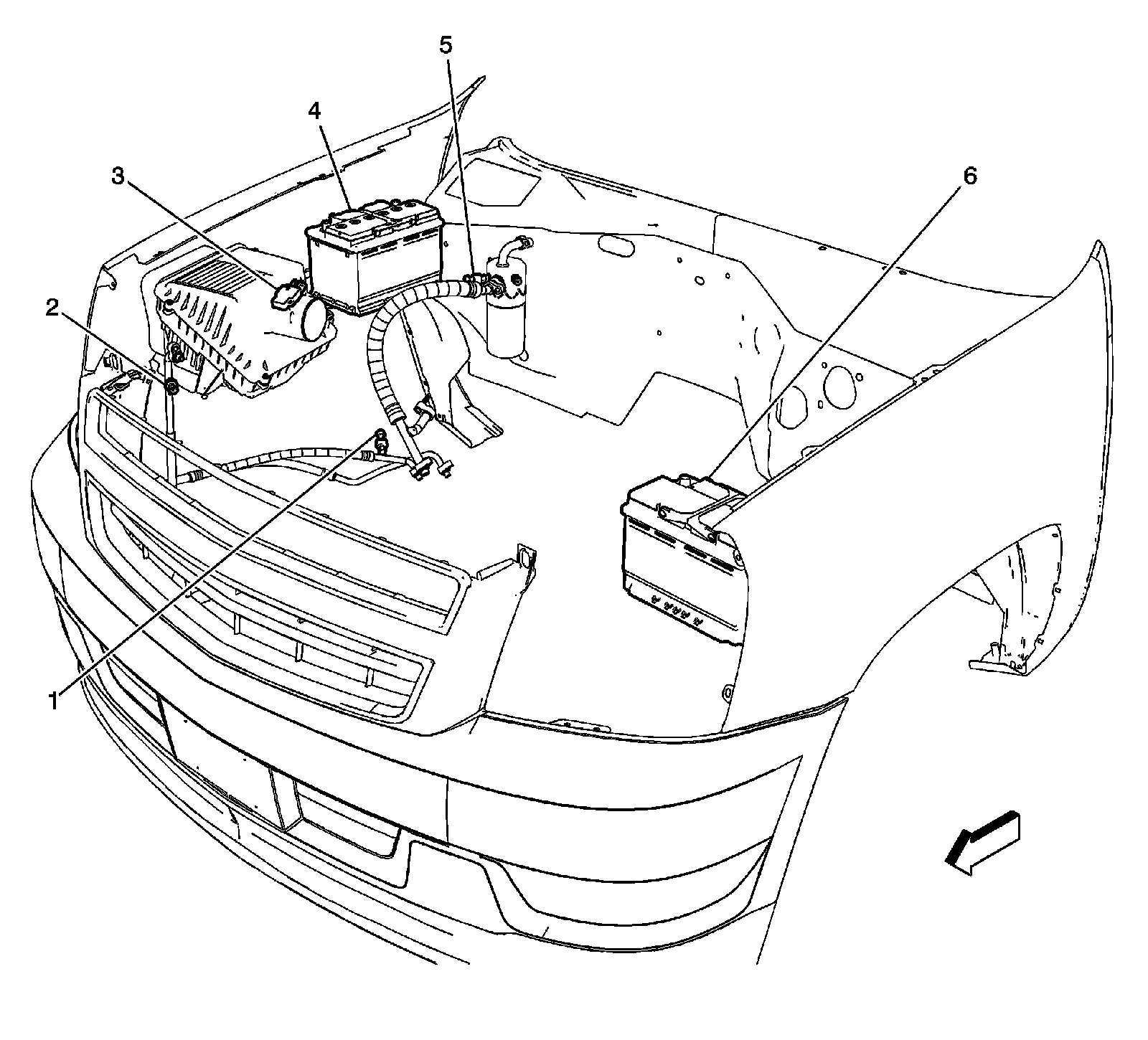

Front of Vehicle/Engine Compartment Component Views

Engine Compartment




1 - A/C Refrigerant Pressure Sensor (Except HP2)
2 - A/C Refrigerant Pressure Sensor (HP2)
3 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
4 - Battery (Except HP2)
5 - A/C Low Pressure Switch (except HP2)
6 - Battery (HP2)
