Information Bus: Locations

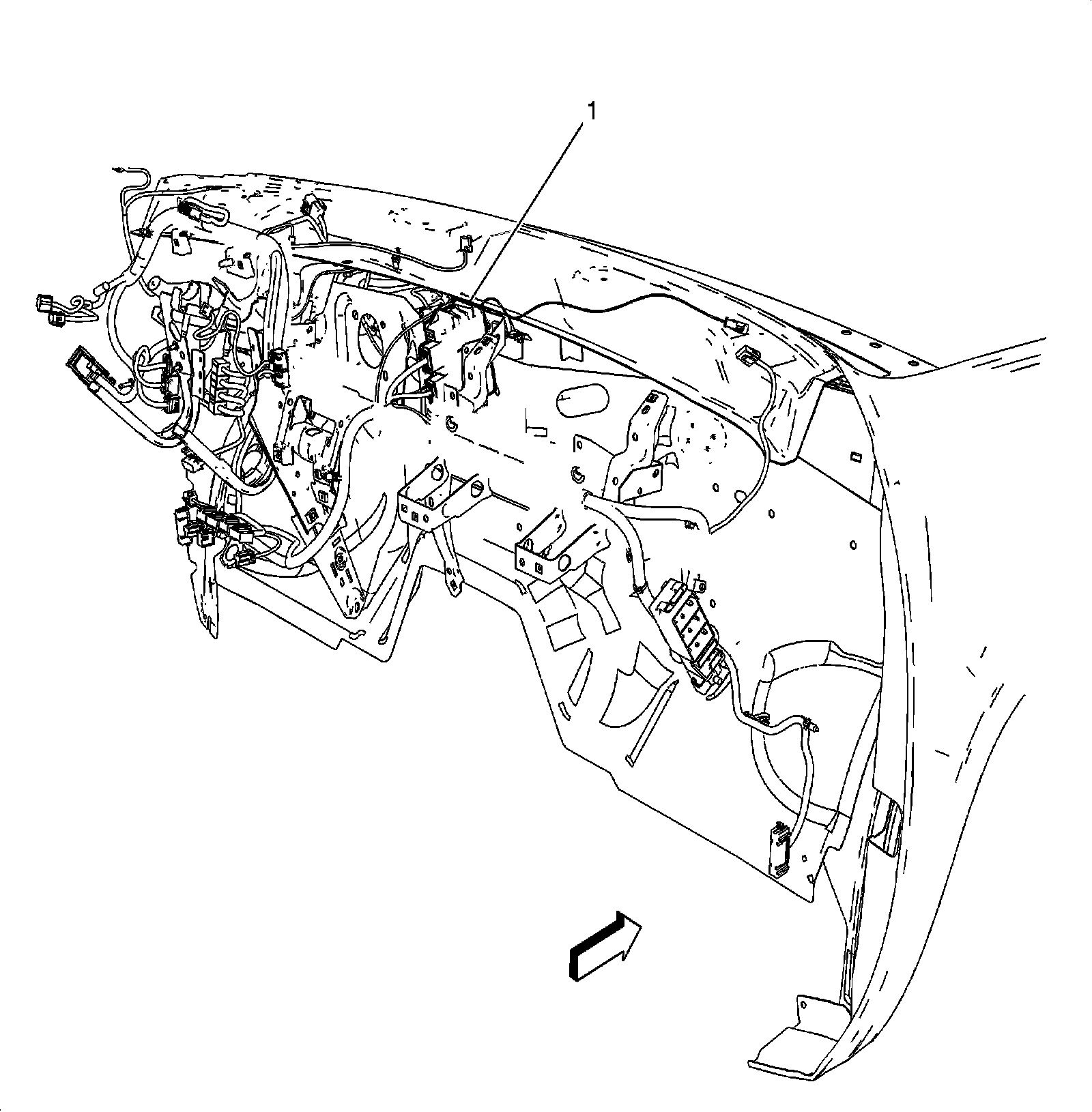

Instrument Panel/Center Console Component Views

Serial Data Gateway (SDG) Module (HP2)




1 - Serial Data Gateway (SDG) Module
