Power Trunk / Liftgate Control Module: Locations

Luggage Compartment/Rear of Vehicle Component Views

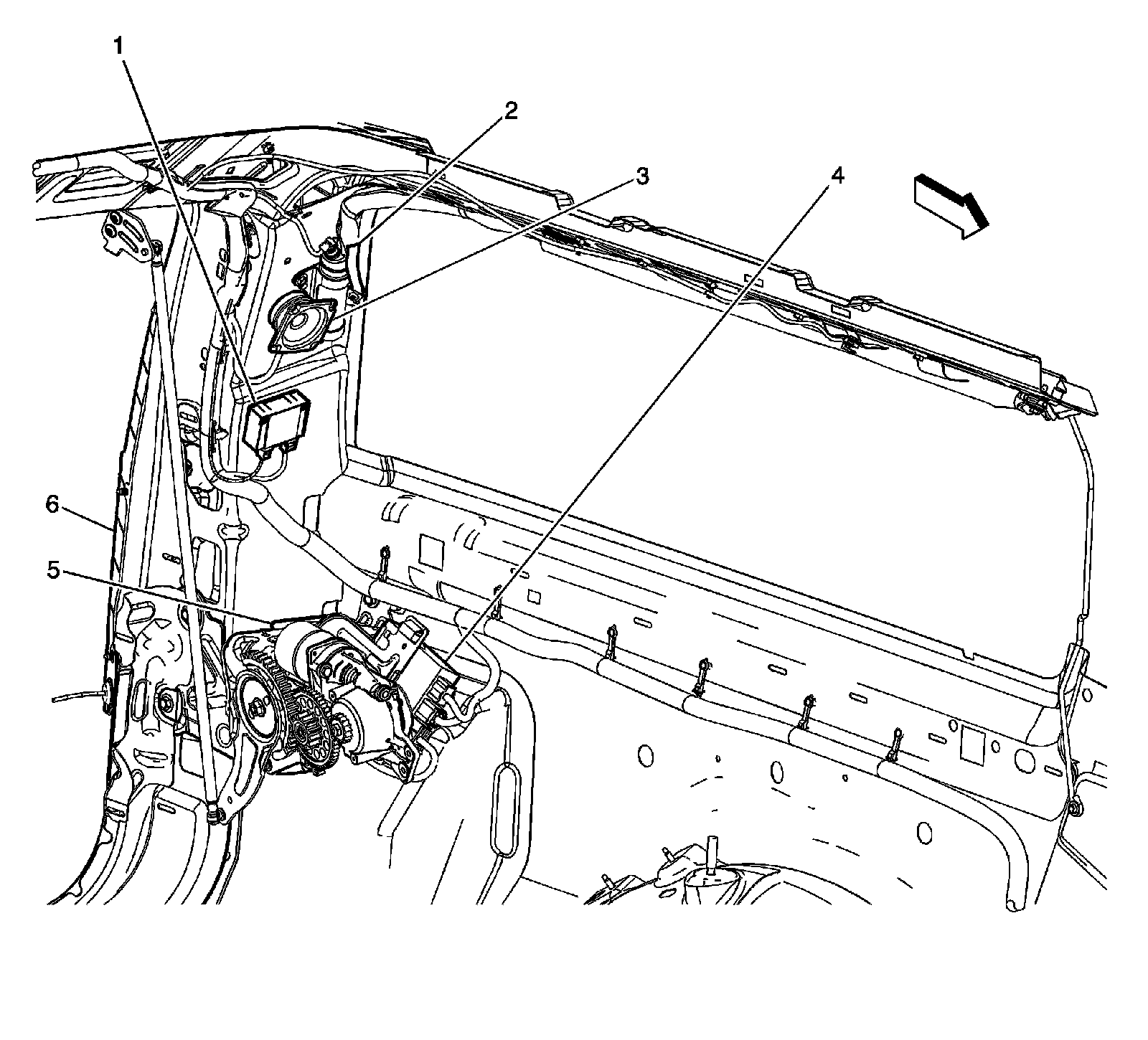

Left Rear of the Cargo Area Components (E52)




1 - Remote Control Door Lock Receiver (RCDLR) (AP3 or AP8)
2 - Inflatable Restraint Roof Rail Module - Left Rear (E52 with ASF)
3 - Speaker - Left D-Pillar
4 - Liftgate Module
5 - Liftgate Motor Assembly
6 - Liftgate Object Sensor - Left

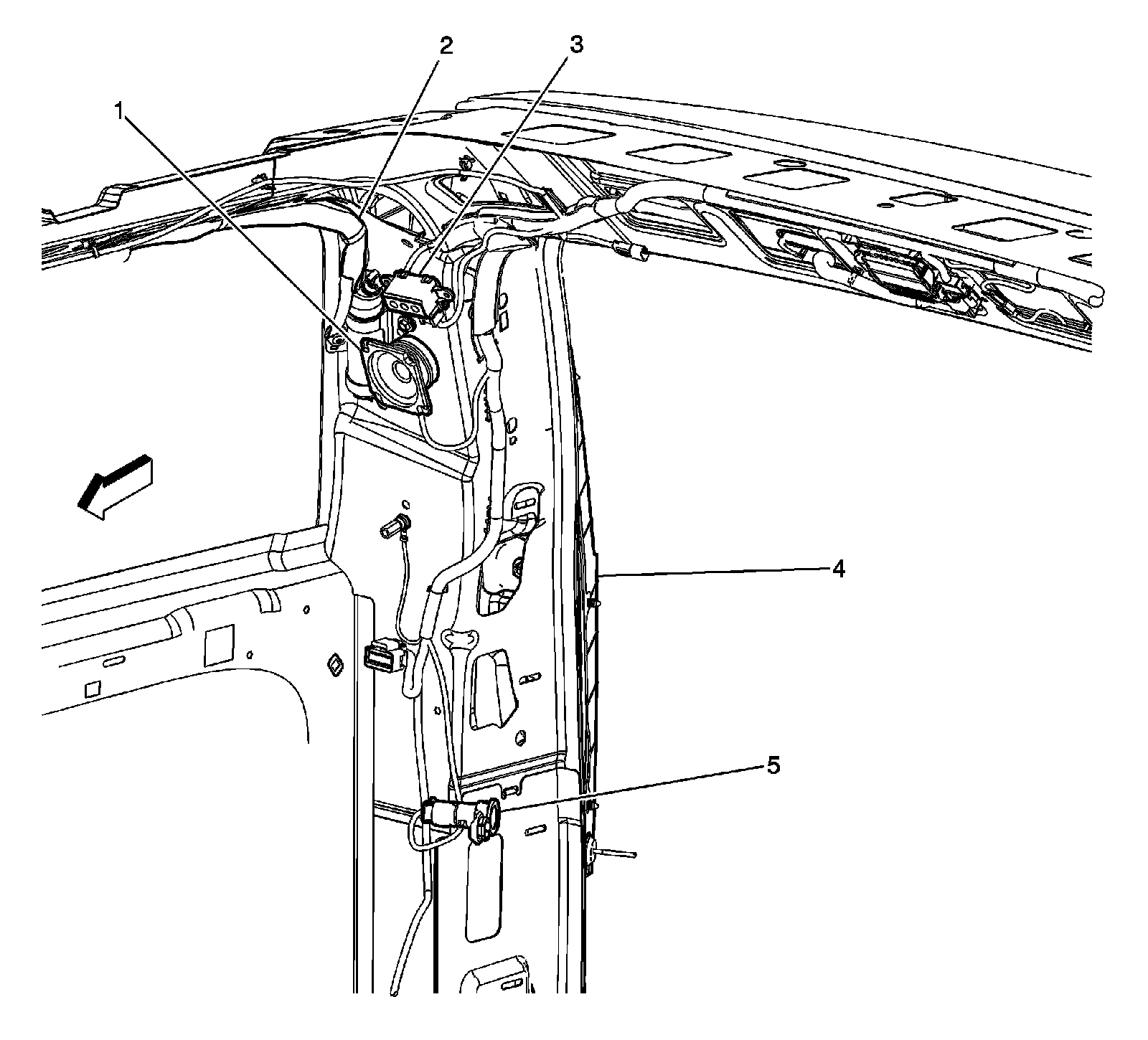

Right Rear of the Cargo Area Components (E52)




1 - Speaker - Right D-Pillar
2 - Inflatable Restraint Roof Rail Module - Right Rear (E52 with ASF)
3 - Information Center Telltale Assembly (UD7)
4 - Liftgate Object Sensor - Right
5 - Accessory Power Outlet - Rear
