Transmission Temperature Sensor/Switch, A/T




4L60-E/4L65-E/4L70-E - Automatic Transmission

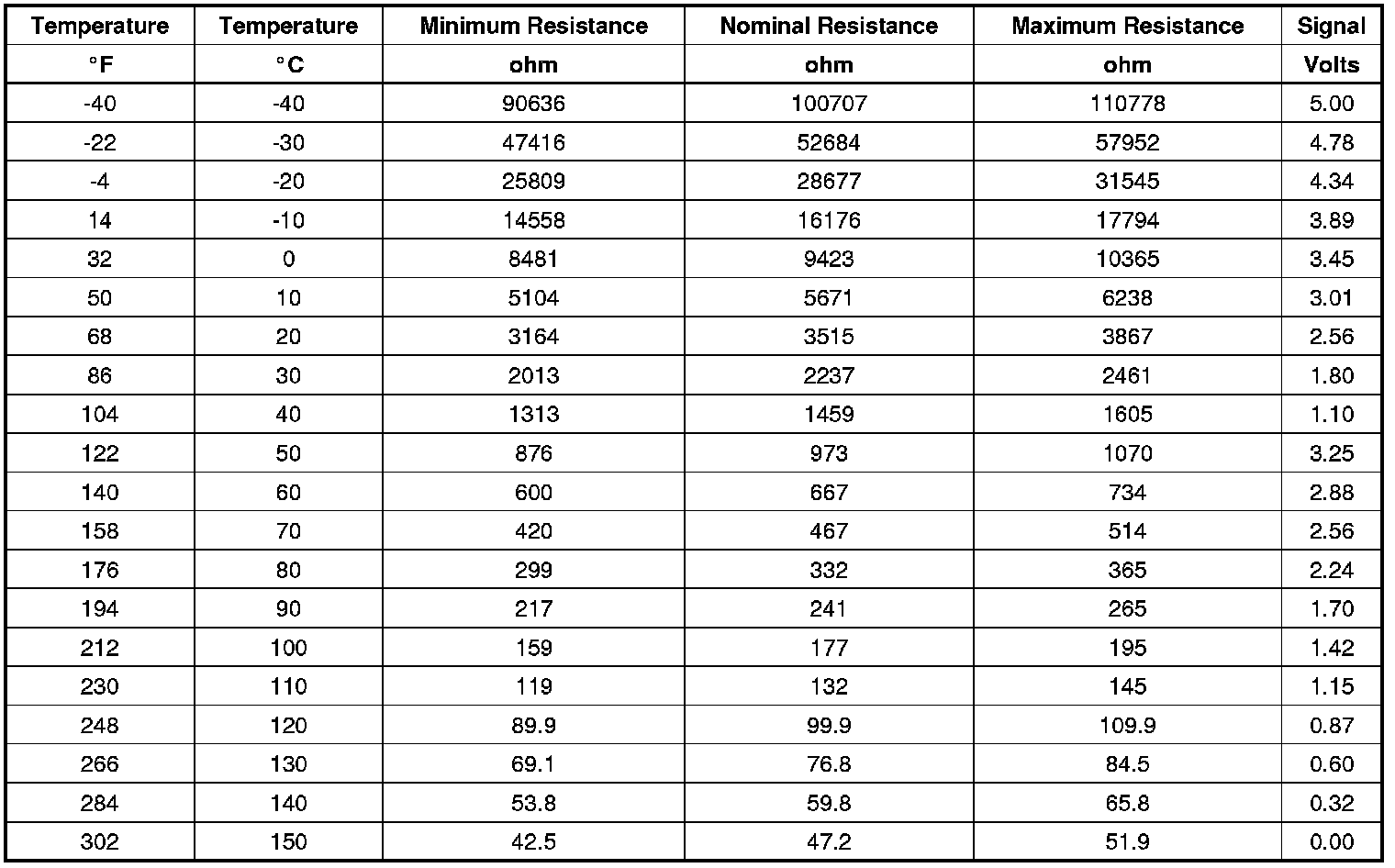

Transmission Fluid Temperature Sensor Specifications
