Driver Seat Adjuster Memory Switch Replacement
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 GMC Yukon XL, 2010 GMC Yukon, 2010 Chevrolet Tahoe, 2010 Chevrolet Suburban, and 2010 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

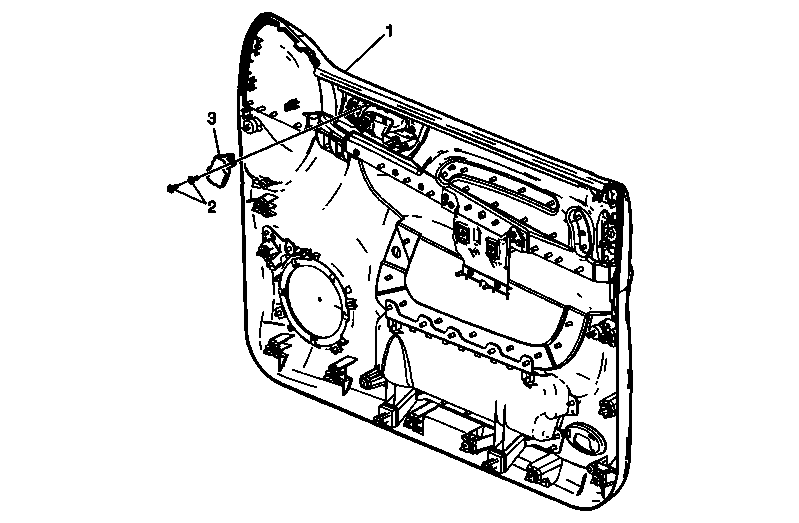

| Callout | Component Name |
|---|---|
| 1 | Front Side Door Trim Panel Refer to Front Side Door Trim Panel Replacement . |
| 2 | Front Memory Seat Switch Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 3 | Front Memory Seat Switch Assembly Tip: Disconnect the electrical connector. |
