Trailer Connector/Provision Schematics

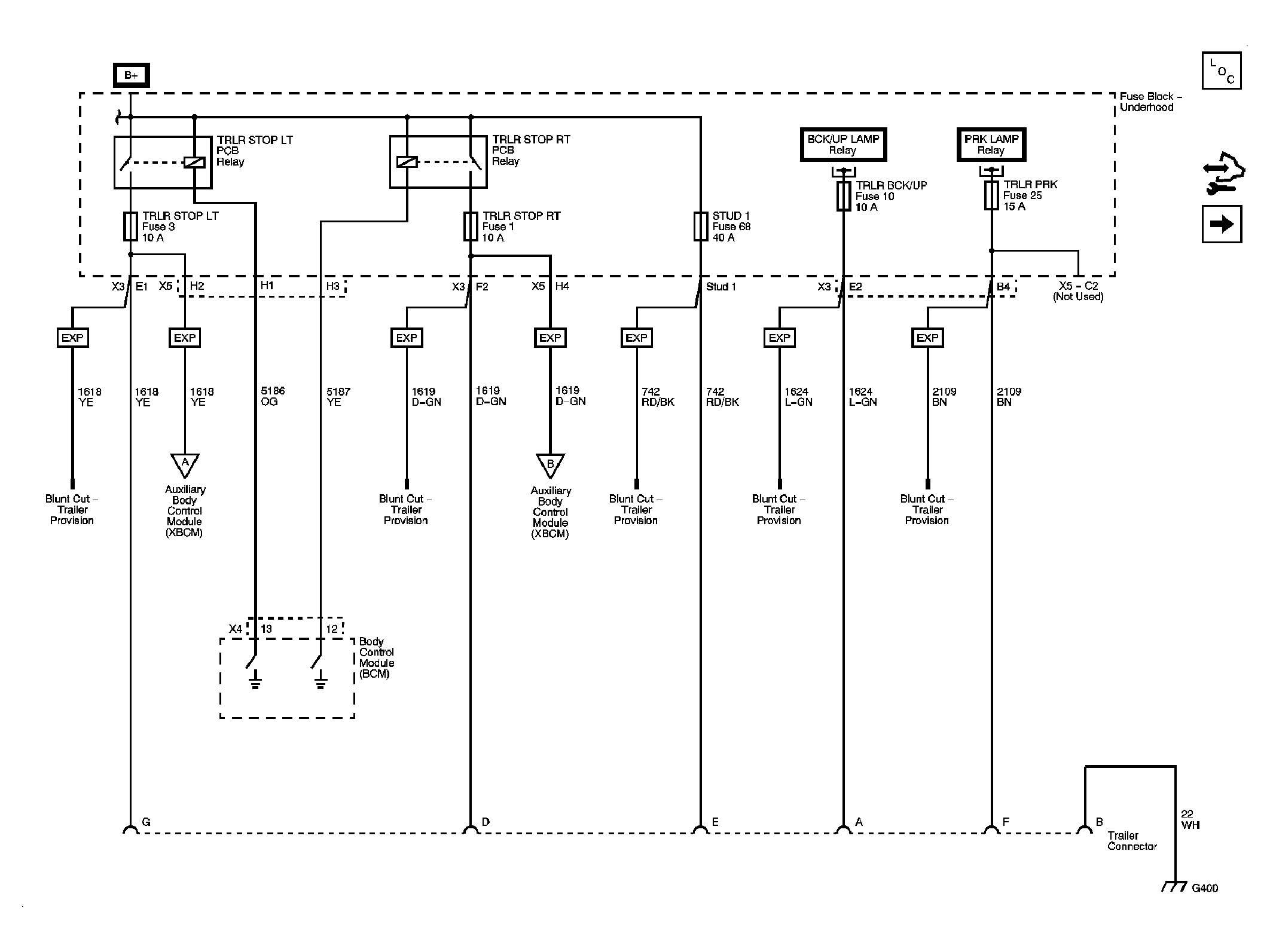

Fig 1: Trailer Lighting Control - Export 1 of 2 and all Domestic
GM2075722Courtesy of GENERAL MOTORS CORP.

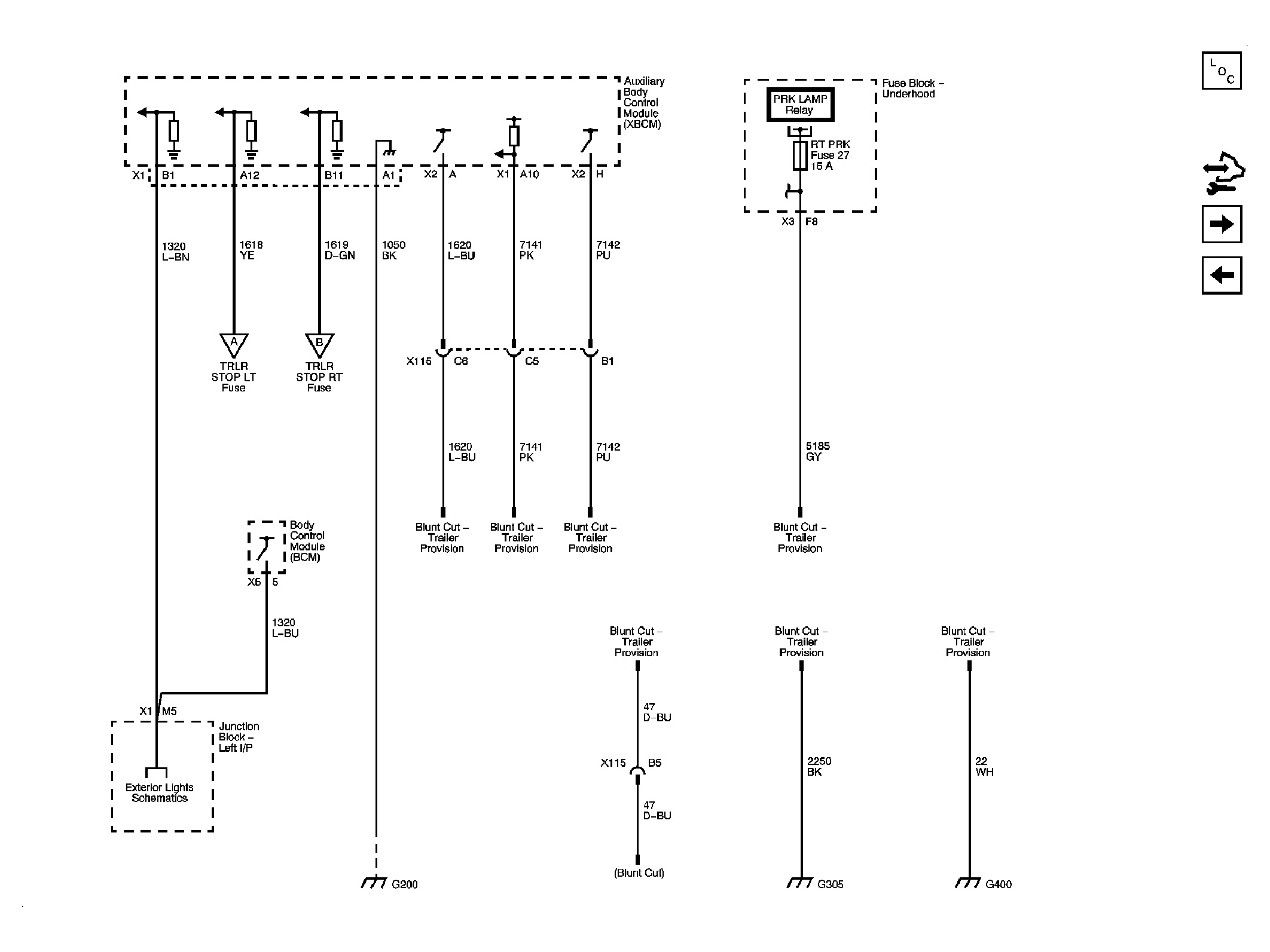

Fig 2: Export Trailer Wiring - 2 of 2
GM2075724Courtesy of GENERAL MOTORS CORP.

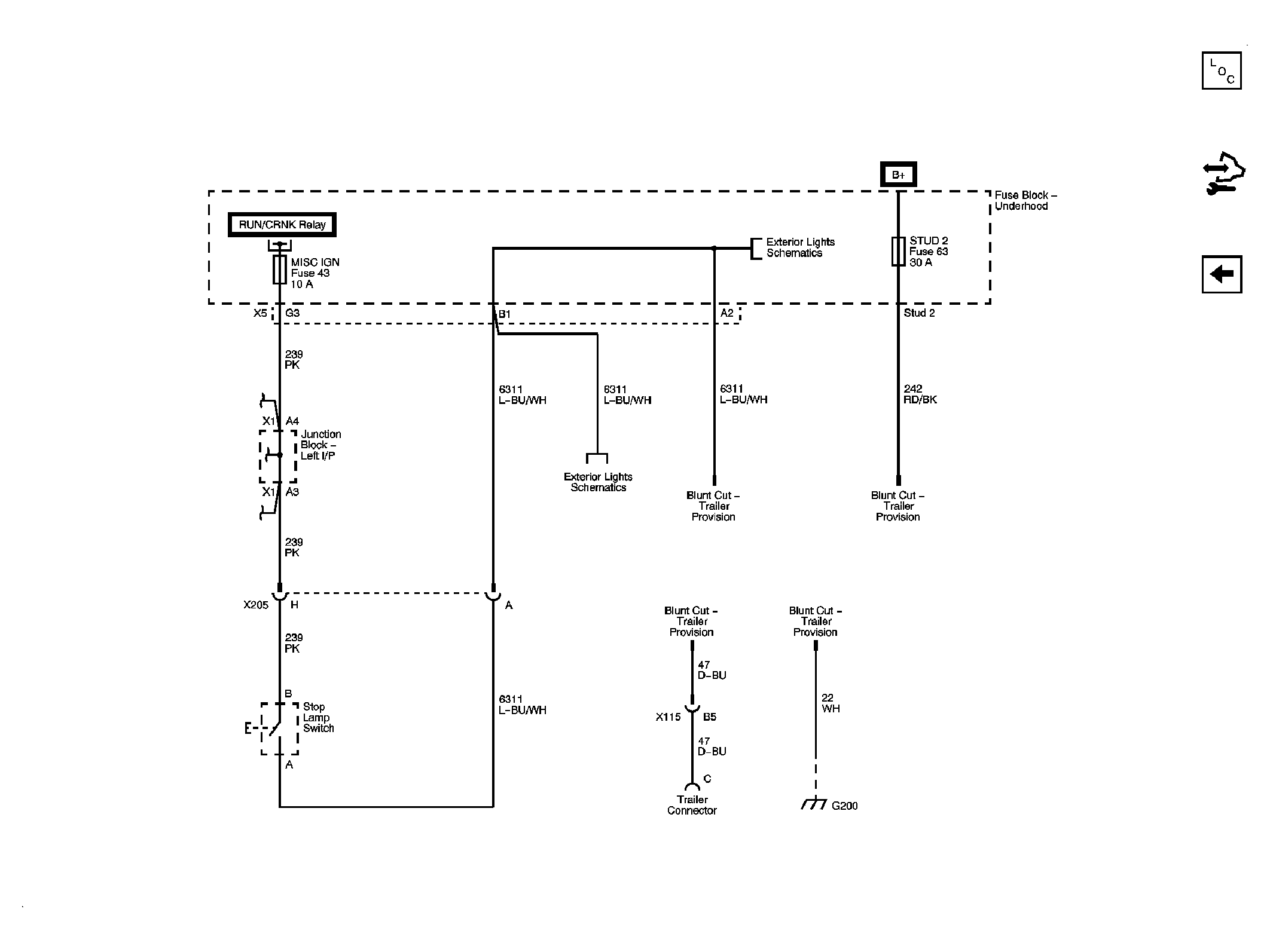

Fig 3: Trailer Brake Control - Domestic
GM2075726Courtesy of GENERAL MOTORS CORP.
