Repair and Diagnosis
>>
Body & Frame
>>
Towing Systems
>>
Trailer Brake Control System
>>
Schematic and Routing Diagrams
>>
Trailer Brake Control Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Trailer Brake Control Schematics

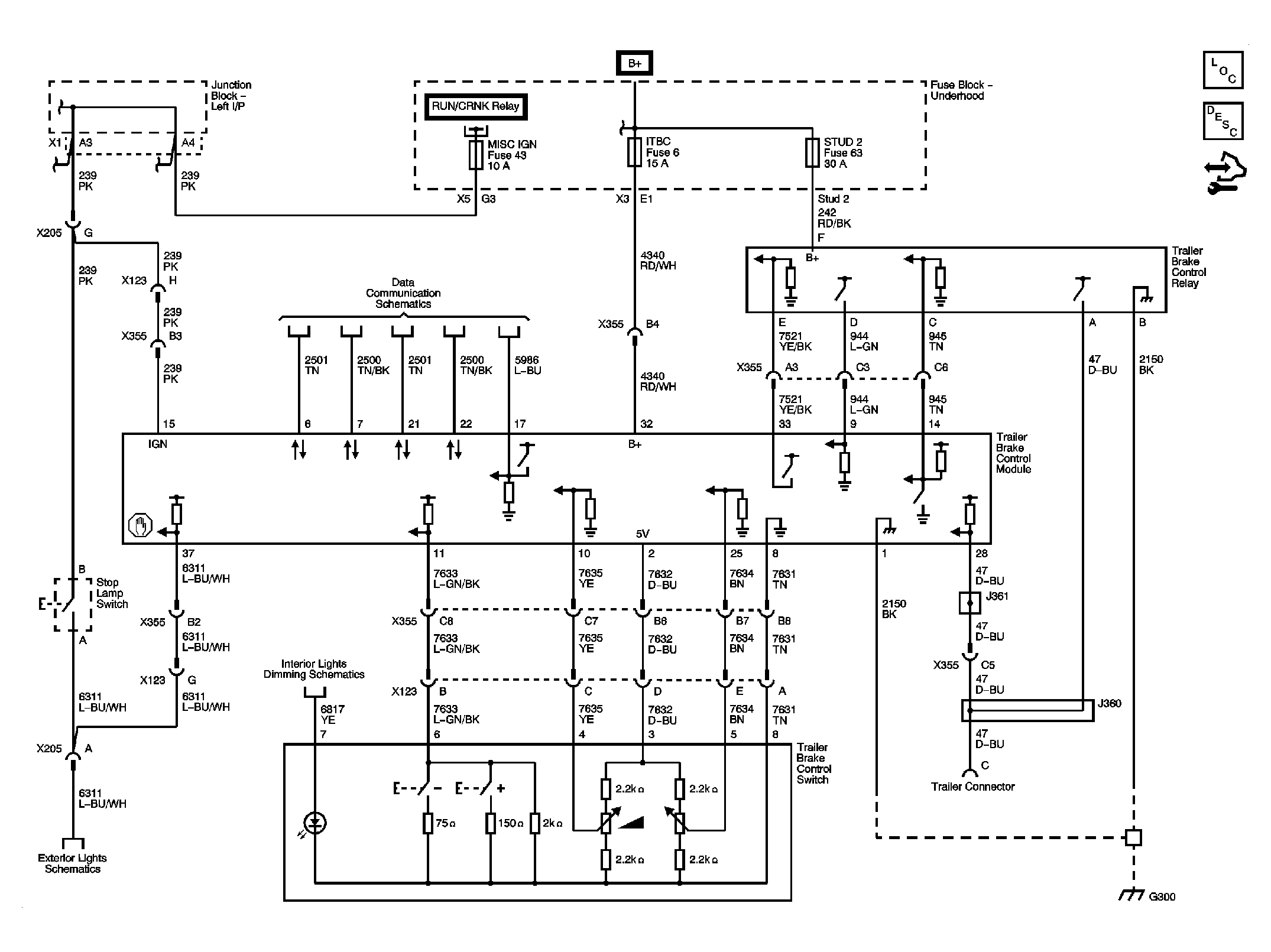

Fig 1: Trailer Brake Control System - E52
Courtesy of GENERAL MOTORS CORP.

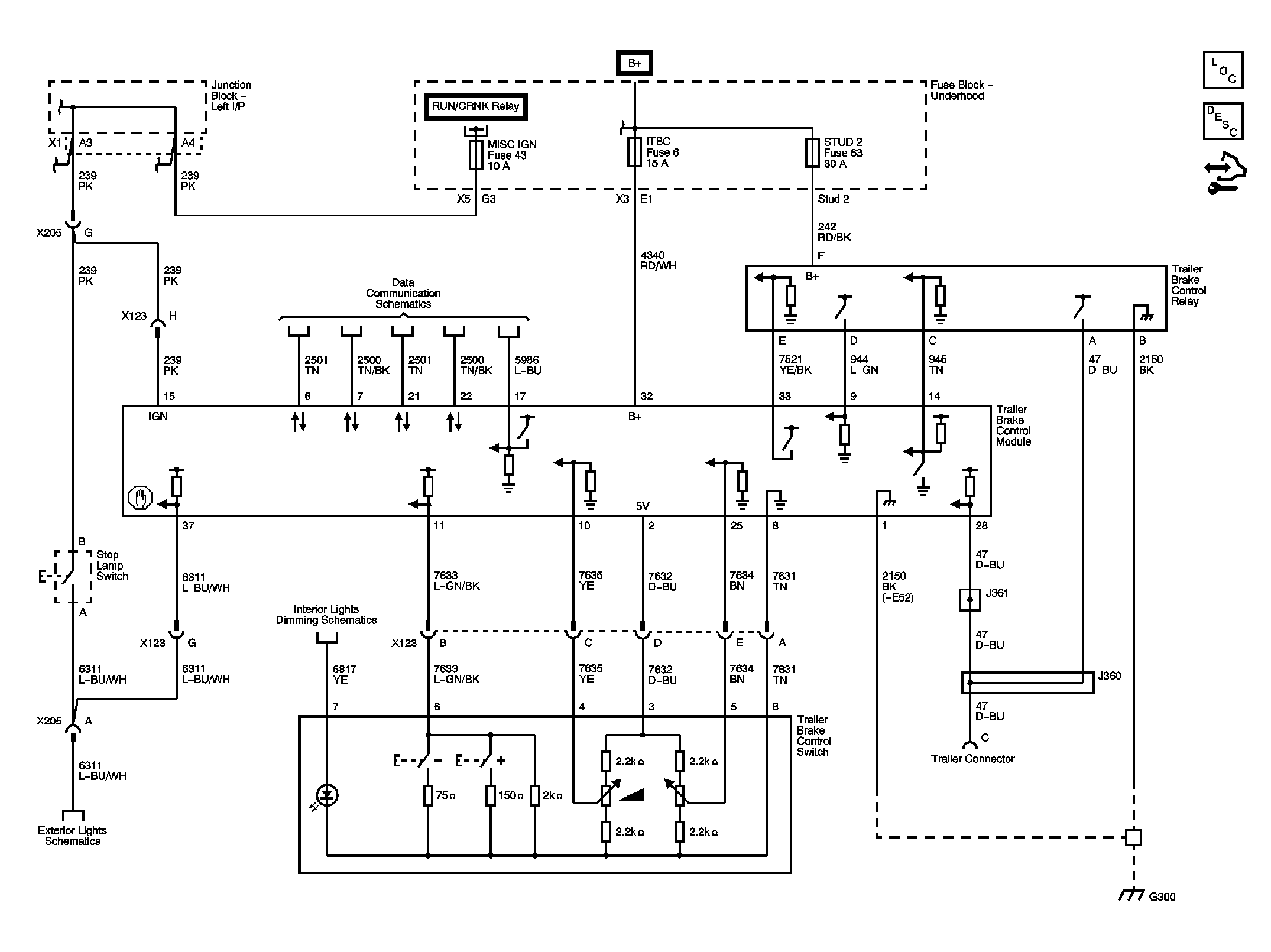

Fig 2: Trailer Brake Control System - without E52
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
