Washer Solvent Container Level Sensor Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

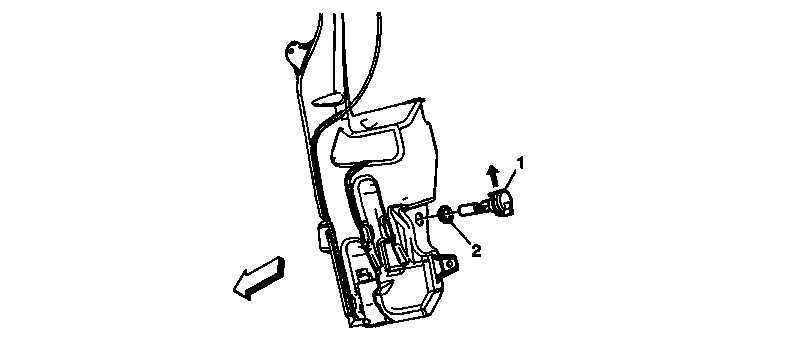

Fig 1: View Of Windshield Washer Solvent Level Indicator & Grommet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the windshield washer container. Refer to Washer Solvent Container Replacement (Chevrolet/GMC) . Using 2 flat-bladed tools, gently pry the windshield washer solvent level indicator from the side of the washer container. Discard the old windshield washer solvent level indicator grommet.
1	Windshield Washer Solvent Level Indicator Tip: Ensure the square edge faces upward upon installation of the new level indicator.
2	Windshield Washer Solvent Level Indicator Grommet Tip: Discard the old grommet and use the new grommet in the kit.

Callout

Component Name

Preliminary Procedures

Remove the windshield washer container. Refer to Washer Solvent Container Replacement (Chevrolet/GMC) .
Using 2 flat-bladed tools, gently pry the windshield washer solvent level indicator from the side of the washer container.
Discard the old windshield washer solvent level indicator grommet.

Windshield Washer Solvent Level Indicator
Tip: Ensure the square edge faces upward upon installation of the new level indicator.

Windshield Washer Solvent Level Indicator Grommet
Tip: Discard the old grommet and use the new grommet in the kit.
