Rearview Camera Replacement (Endgate)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 GMC Yukon XL, 2010 GMC Yukon, 2010 Chevrolet Tahoe, 2010 Chevrolet Suburban, and 2010 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

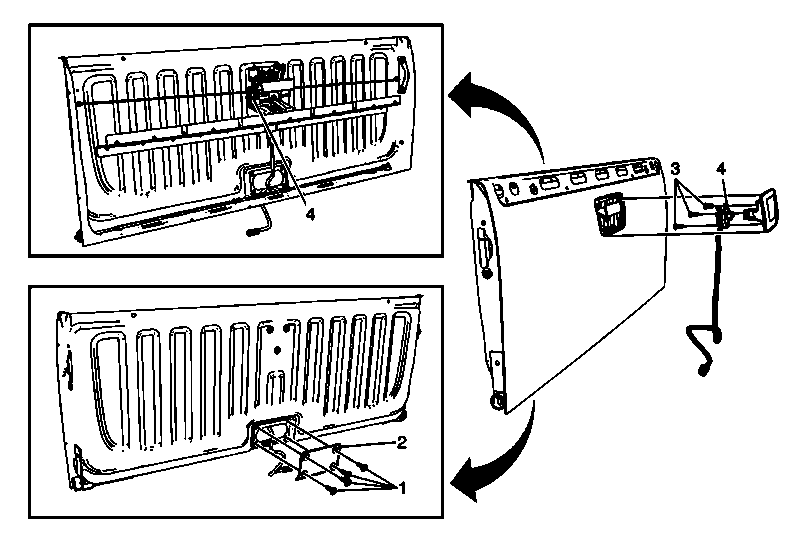

Fig 1: Rearview Camera Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the endgate latch handle bezel. Refer to Pickup Box Endgate Latch Handle Bezel Replacement (Pickup) .
1	Endgate Access Panel Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Endgate Access Panel
3	Rearview Camera Screw (Qty: 3)
4	Rearview Camera Procedure Route the electrical harness through the guide. Disconnect the electrical connector.
