Steering Column Disassembled View (Manual Tilt)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 GMC Yukon XL, 2010 GMC Yukon, 2010 Chevrolet Tahoe, 2010 Chevrolet Suburban, and 2010 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

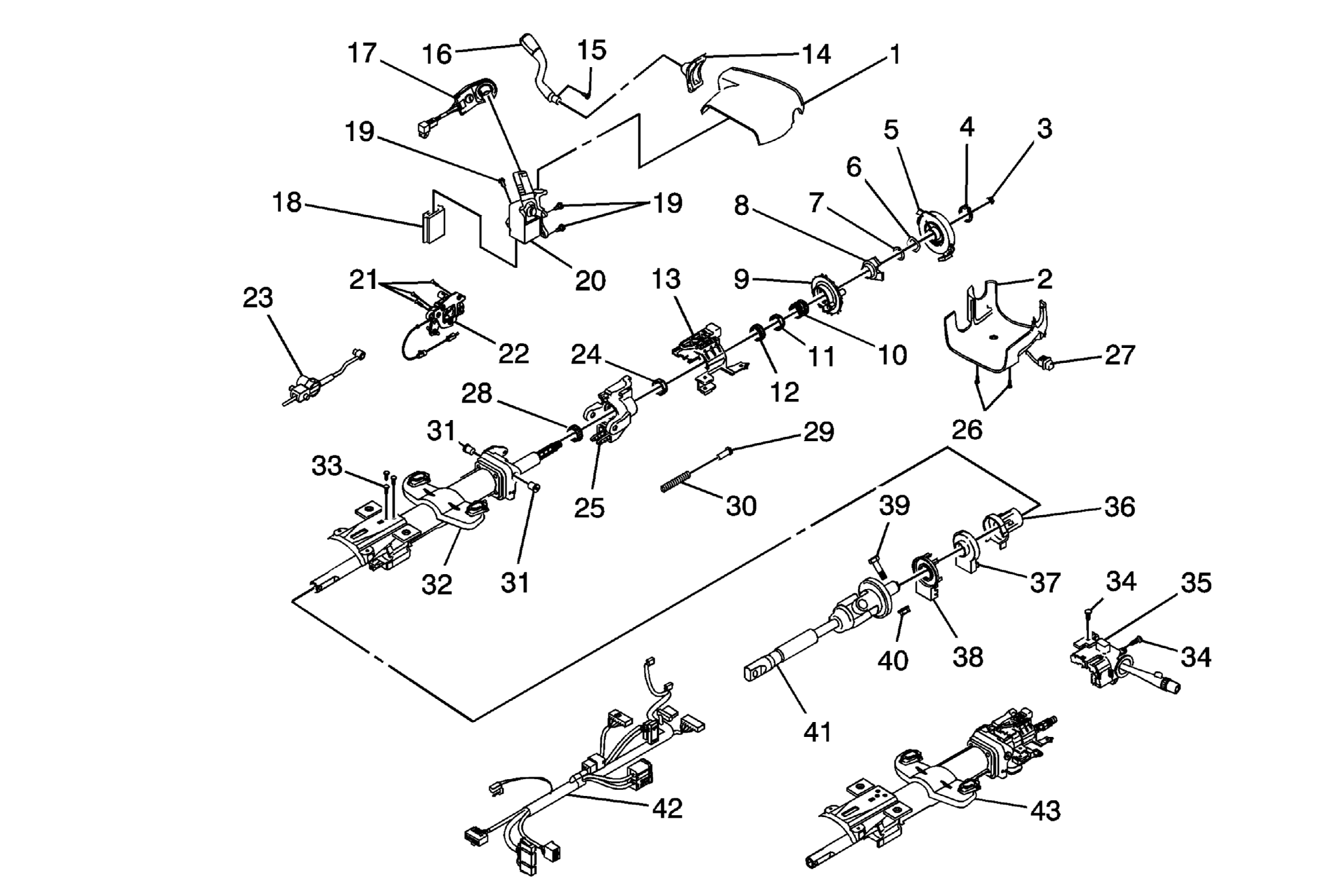

Fig 1: Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Steering Column Shroud
2	Lower Steering Column Shroud
3	Steering Wheel Nut
4	Inflatable Restraint Steering Wheel Module Coil Retaining Ring
5	Inflatable Restraint Steering Wheel Module Coil
6	Inflatable Restraint Steering Wheel Module Coil Wave Washer
7	Steering Shaft Lock Plate Retaining Ring
8	Turn Signal Switch Cancel Cam Position Plate
9	Turn Signal Switch Cancel Cam
10	Steering Shaft Upper Bearing Spring
11	Steering Shaft Upper Bearing Inner Race Seat
12	Steering Shaft Upper Bearing Inner Race
13	Turn Signal Multifunction Switch Bracket
14	Shift Lever Seal
15	Shift Lever Bolt
16	Shift Lever
17	Theft Deterrent Module
18	Ignition and Start Switch
19	Ignition Lock Cylinder Case Bolt
20	Ignition Lock Cylinder Case
21	Transmission Control Bolt
22	Transmission Control
23	Automatic Transmission Shift Lock Control Actuator
24	Steering Shaft Upper Bearing
25	Steering Column Tilt Head Assembly
26	Lower Steering Column Shroud Bolt
27	Tilt Lever
28	Steering Shaft Upper Bearing
29	Steering Column Tilt Spring Guide
30	Steering Column Tilt Spring
31	Pivot Pin
32	Steering Column Support and Upper Jacket Assembly
33	Steering Column Bracket Screw
34	Turn Signal Multifunction Switch Bolt
35	Turn Signal Multifunction Switch
36	Steering Shaft Lower Bearing
37	Steering Wheel Position Sensor
38	Steering Wheel Position Sensor Retaining Clip
39	Steering Shaft Coupling Bolt
40	Steering Shaft Coupling Nut
41	Upper Intermediate Steering Shaft
42	Steering Column Electrical Harness
43	Service Steering Column
