Radio C2 (Except Y91)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Radio C2 (Except Y91) Connector Parts Information
Connector Part Information
|
Terminal Part Information
|

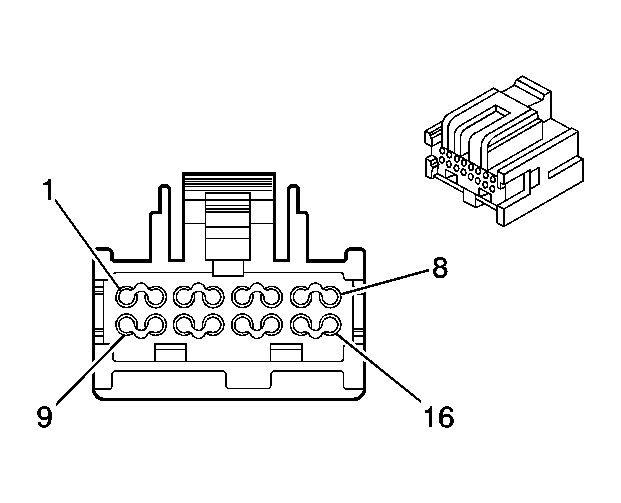

Radio C2 (Except Y91) Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | BN/WH | 367 | Remote Radio Left Audio Signal |
| 2 | D-GN/WH | 368 | Remote Radio Right Audio Signal |
| 3 | Bare | 2099 | Drain Wire |
| 4 | - | - | Not Used |
| 5 | BN | 199 | Left Rear Speaker Output (+) |
| BN/WH | 599 | Left Rear Low Level Audio Signal (+) | |
| 6 | D-BU | 46 | Right Rear Speaker Output (+) |
| D-BU | 546 | Right Rear Low Level Audio Signal (+) | |
| 7 | D-BU | 658 | Cellular Telephone Voice Signal |
| 8 | OG | 6978 | Amplifier Control |
| 9 | TN/WH | 372 | Remote Radio Audio Output (-) |
| 10 | GY | 388 | Remote Radio Right Audio Signal |
| 11 | Bare | 1573 | Drain Wire |
| 12 | - | - | Not Used |
| 13 | YE | 116 | Left Rear Speaker Output (-) |
| BN | 1999 | Left Rear Low Level Audio Signal (-) | |
| 14 | L-BU | 115 | Right Rear Speaker Output (-) |
| TN | 1946 | Right Rear Low Level Audio Signal (-) | |
| 15 | L-BU/BK | 659 | Cellular Telephone Voice Low Reference |
| 16 | - | - | Not Used |
