Rear Seat Audio (RSA) Controller C2 (UQ3)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

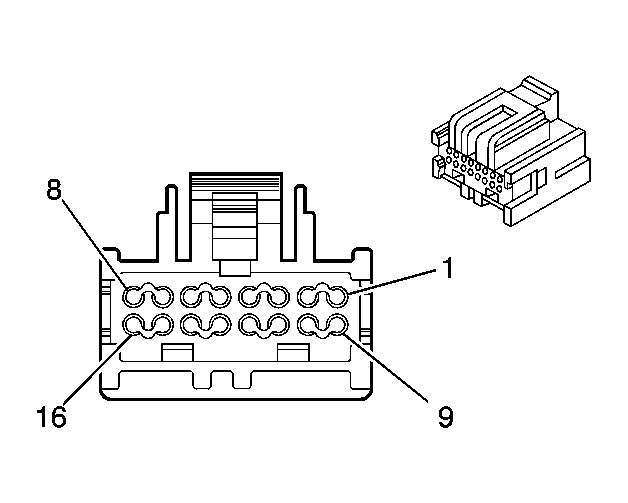

Fig 1: Rear Seat Audio (RSA) Controller C2 (UQ3) Connector End View

Courtesy of GENERAL MOTORS CORP.

Rear Seat Audio (RSA) Controller C2 (UQ3) Connector Parts Information

Connector Part Information

OEM: 15394152
Service: 19115676
Description: 16-Way F Micro 64 Series (GN)

Terminal Part Information

Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Rear Seat Audio (RSA) Controller C2 (UQ3) Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	BN	199	Left Rear Speaker Output (+)
2	YE	116	Left Rear Speaker Output (-)
3	D-BU	46	Right Rear Speaker Output (+)
4	L-BU	115	Right Rear Speaker Output (-)
5	Bare	2099	Drain Wire
6-8	-	-	Not Used
9	BN	199	Left Rear Speaker Output (+)
10	YE	116	Left Rear Speaker Output (-)
11	D-BU	46	Right Rear Speaker Output (+)
12	L-BU	115	Right Rear Speaker Output (-)
13	Bare	2099	Drain Wire
14-16	-	-	Not Used
