Stub Shaft Housing Replacement

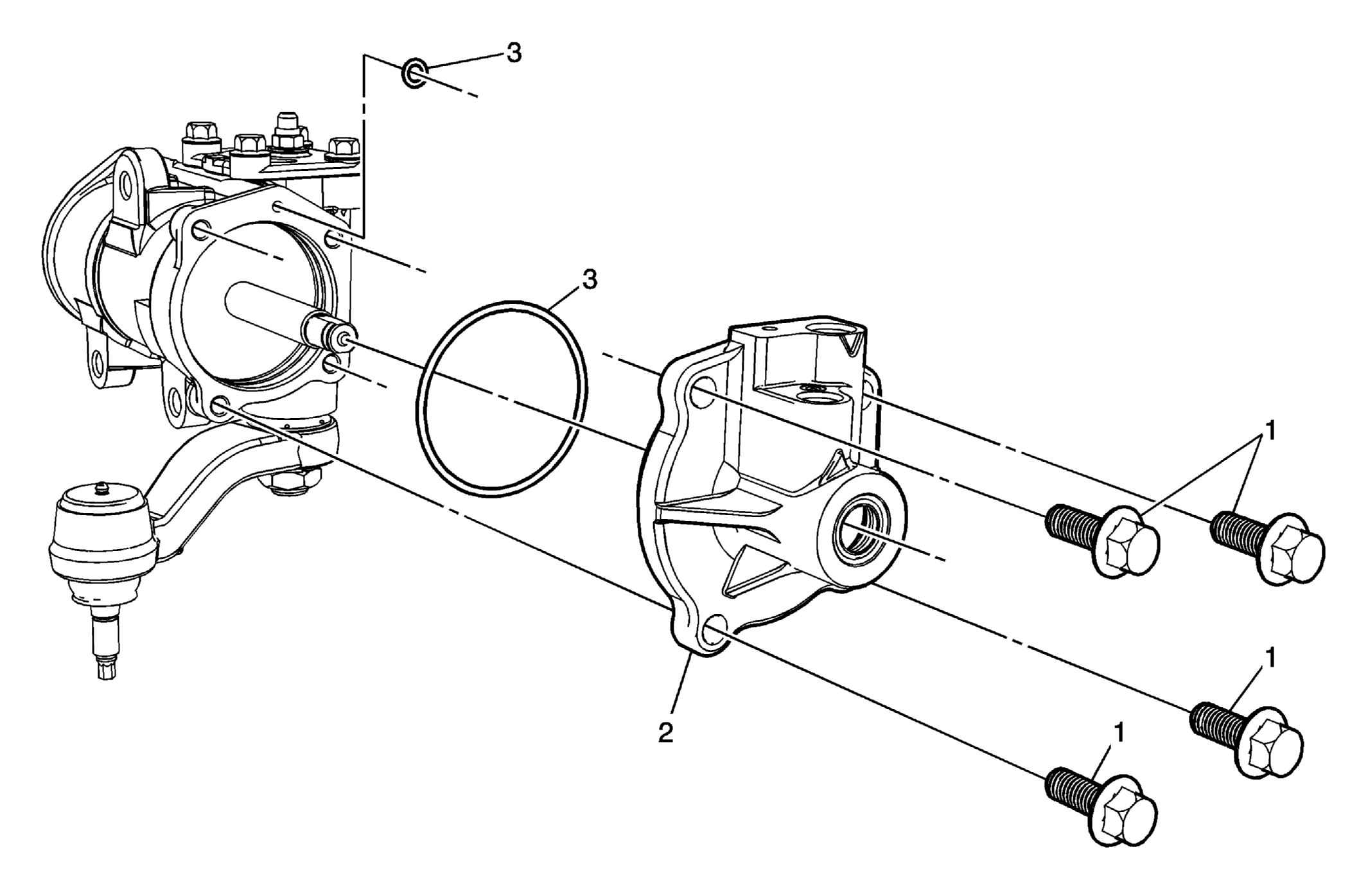

Fig 1: View Of Stub Shaft Housing, O-Ring & Bolt

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the power steering gear. Refer to Steering Gear Replacement (Non-Rack and Pinion) or Steering Gear Replacement (Rack and Pinion) or Steering Gear Replacement (Two Mode Hybrid) .
1	Stub Shaft Housing Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 62 N.m (46 lb ft)
2	Stub Shaft Housing
3	Stub Shaft Housing O-Ring (Qty: 2) Tip: Grease the stub shaft housing O-Rings with the special grease supplied in the service kit.
