Power Steering Schematics

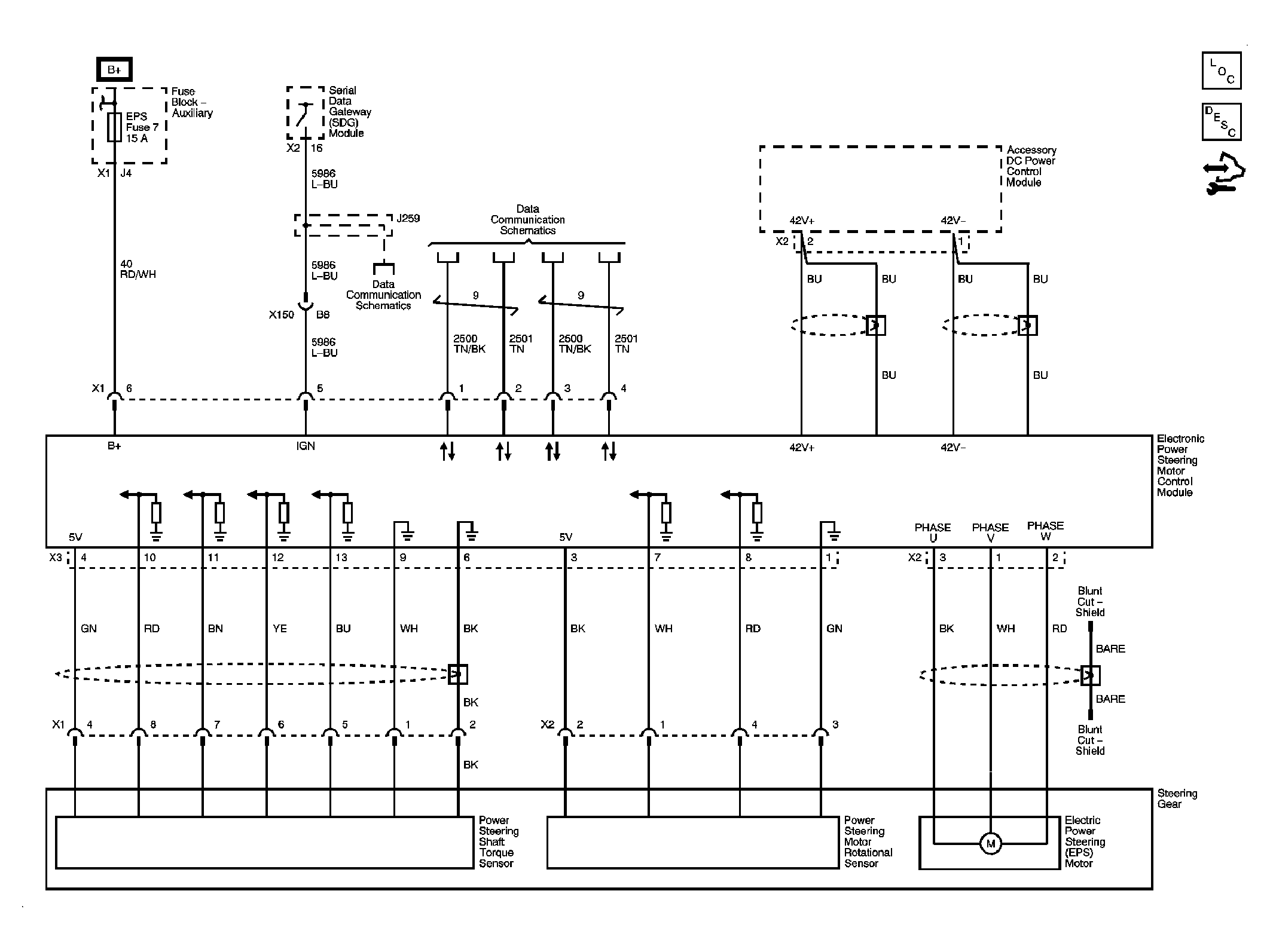

Fig 1: Hybrid Power Steering System
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
