Repair and Diagnosis
>>
Accessories & Equipment
>>
Collision/Avoidance
>>
Object Detection System
>>
Schematic and Routing Diagrams
>>
Object Detection Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Object Detection Schematics

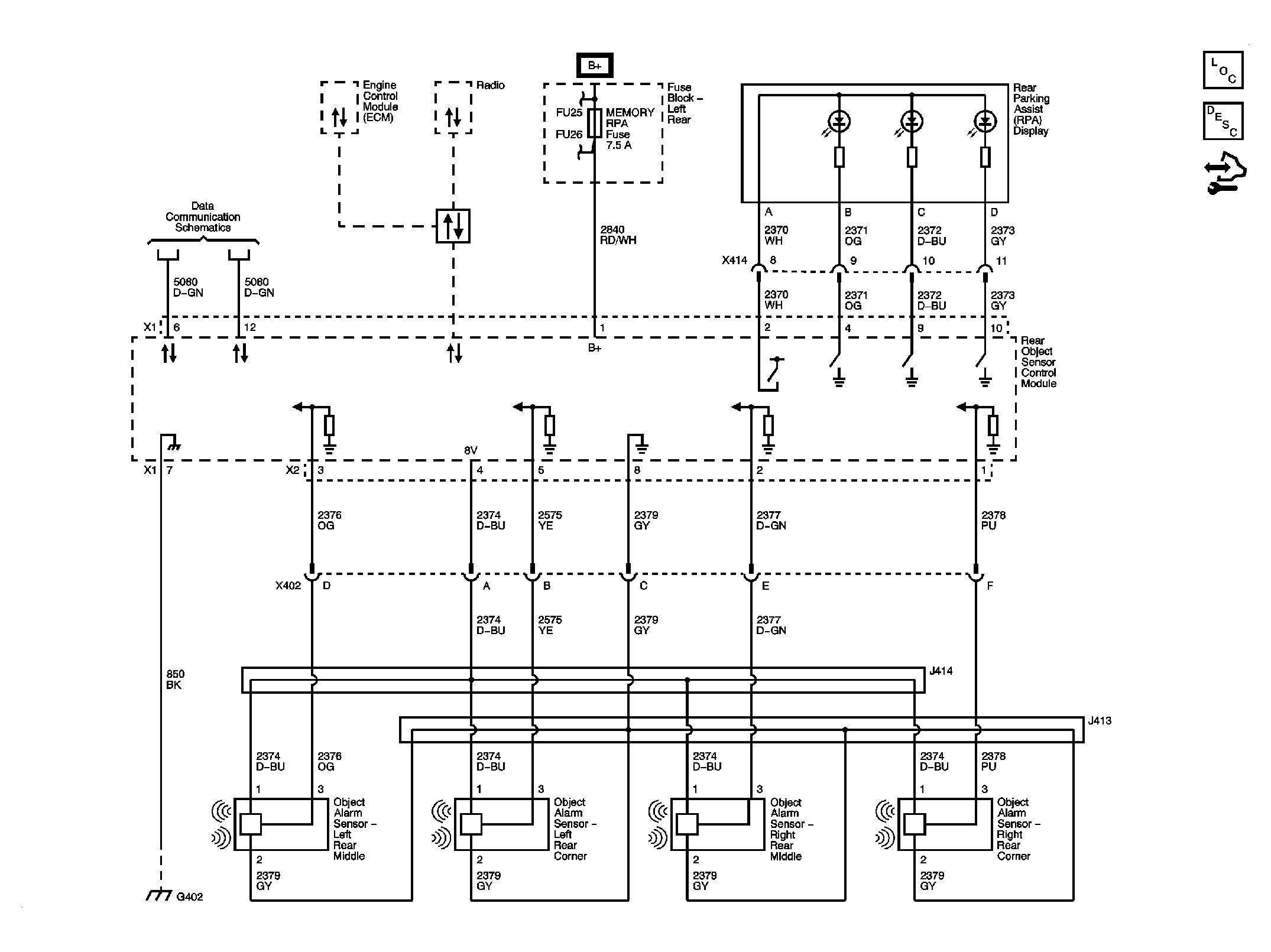

Fig 1: Object Detection Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
