Remote Function Schematics

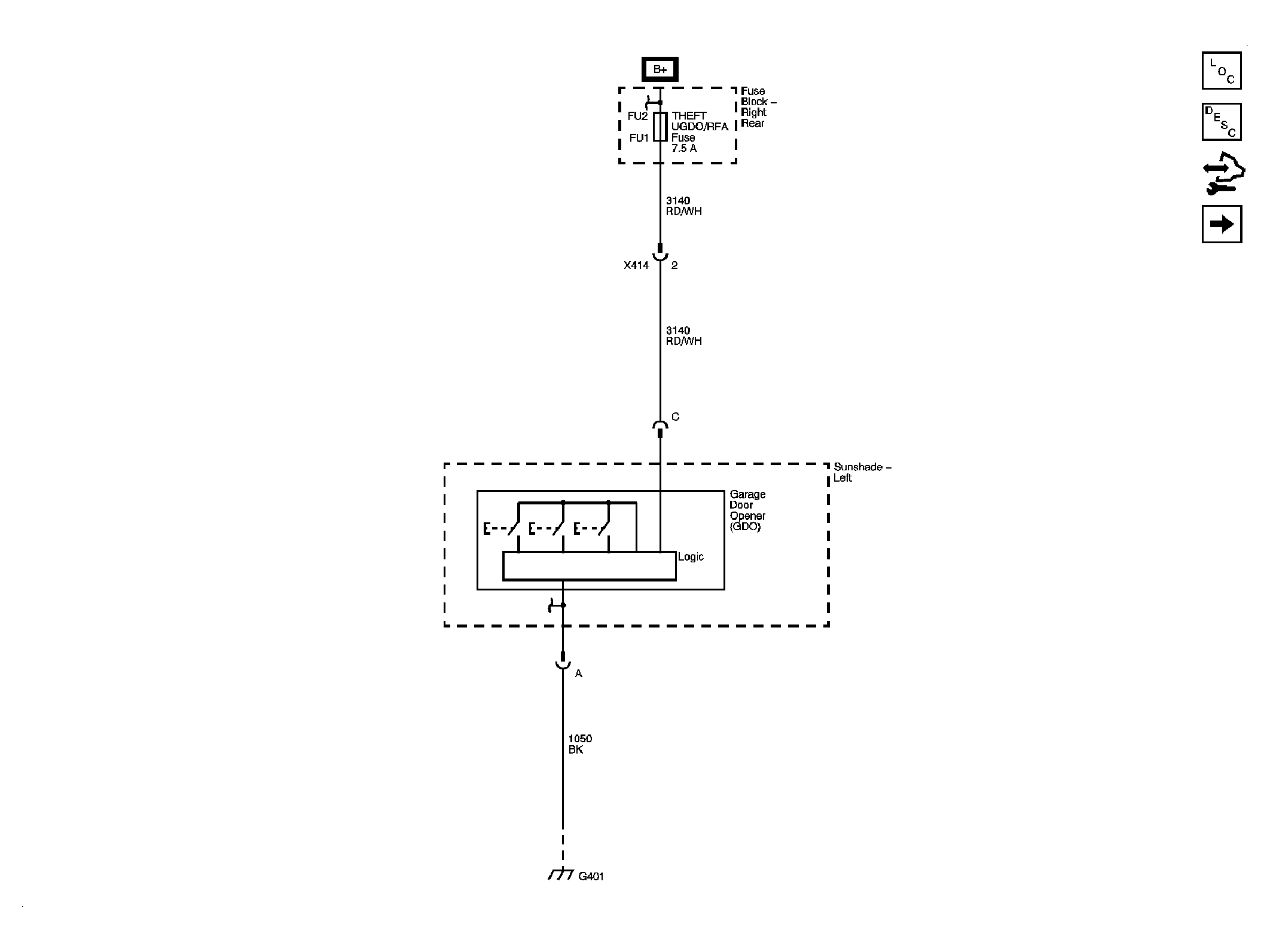

Fig 1: Garage Door Opener Schematic
GM2062752Courtesy of GENERAL MOTORS CORP.

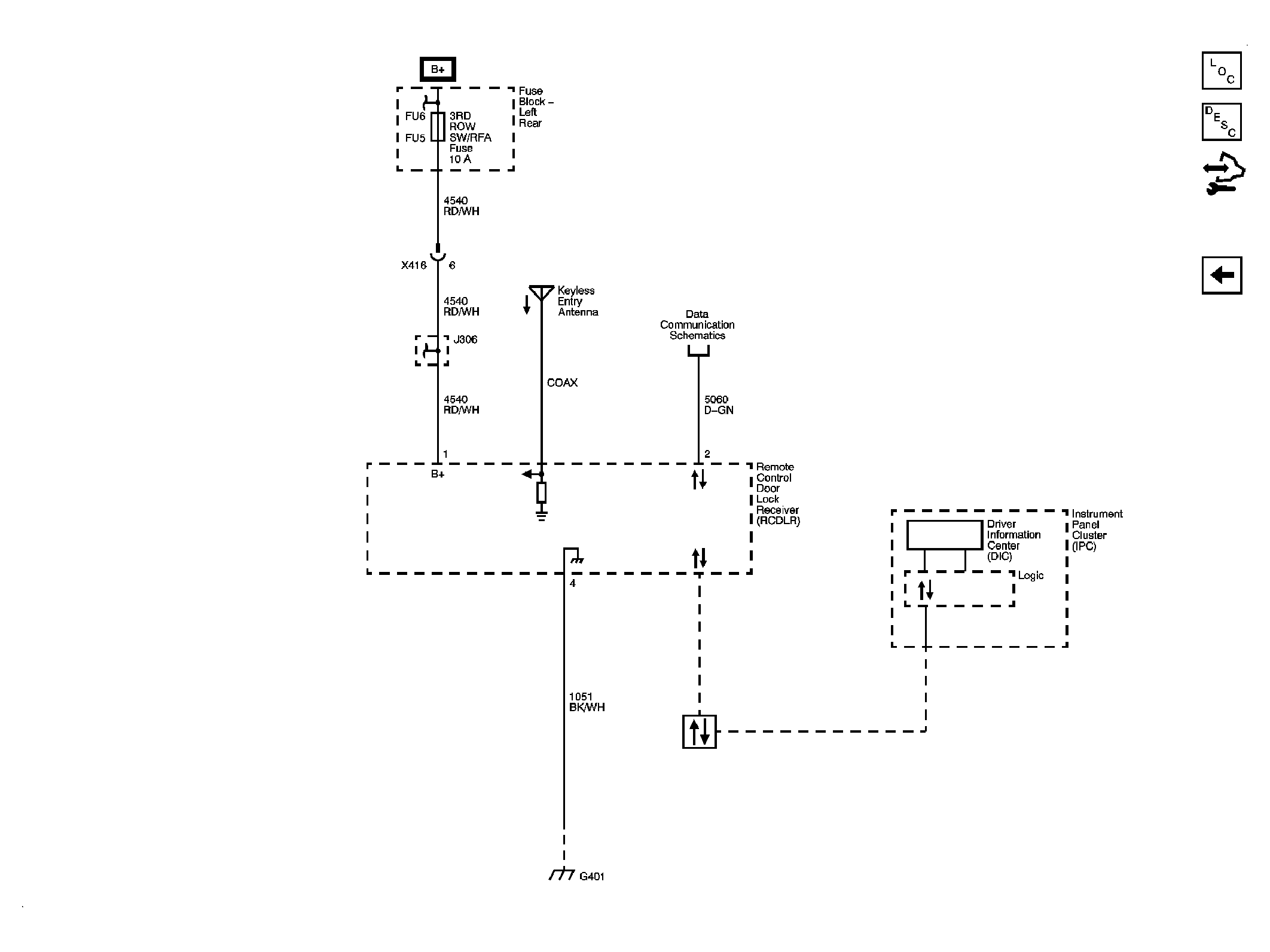

Fig 2: Keyless Entry Schematic
GM2062758Courtesy of GENERAL MOTORS CORP.
