Body Control Module Replacement (Right Hand Drive)

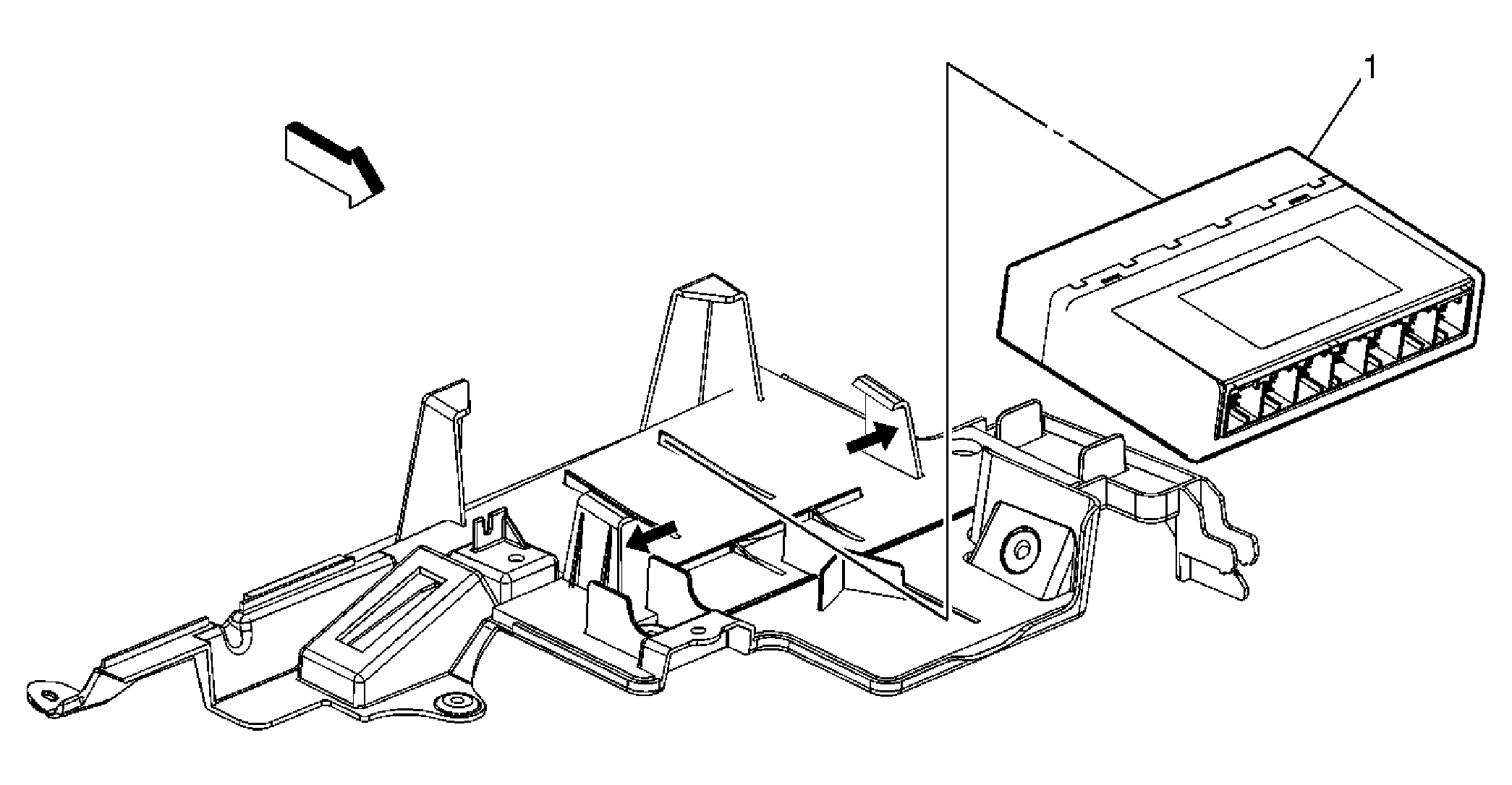

Fig 1: Body Control Module Replacement (Right Hand Drive) Component View

GM1850831

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure:
Remove the right closeout/insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side (Right Hand Drive) or Instrument Panel Insulator Panel Replacement - Right Side (Left Hand Drive) .

1

Body Control Module

Procedure

Disconnect the electrical connectors.
Push outward on the 2 tabs to release the body control module from the bracket.
If a replacement module is installed, program the module. Refer to Control Module References .
