Engine Controls Schematics

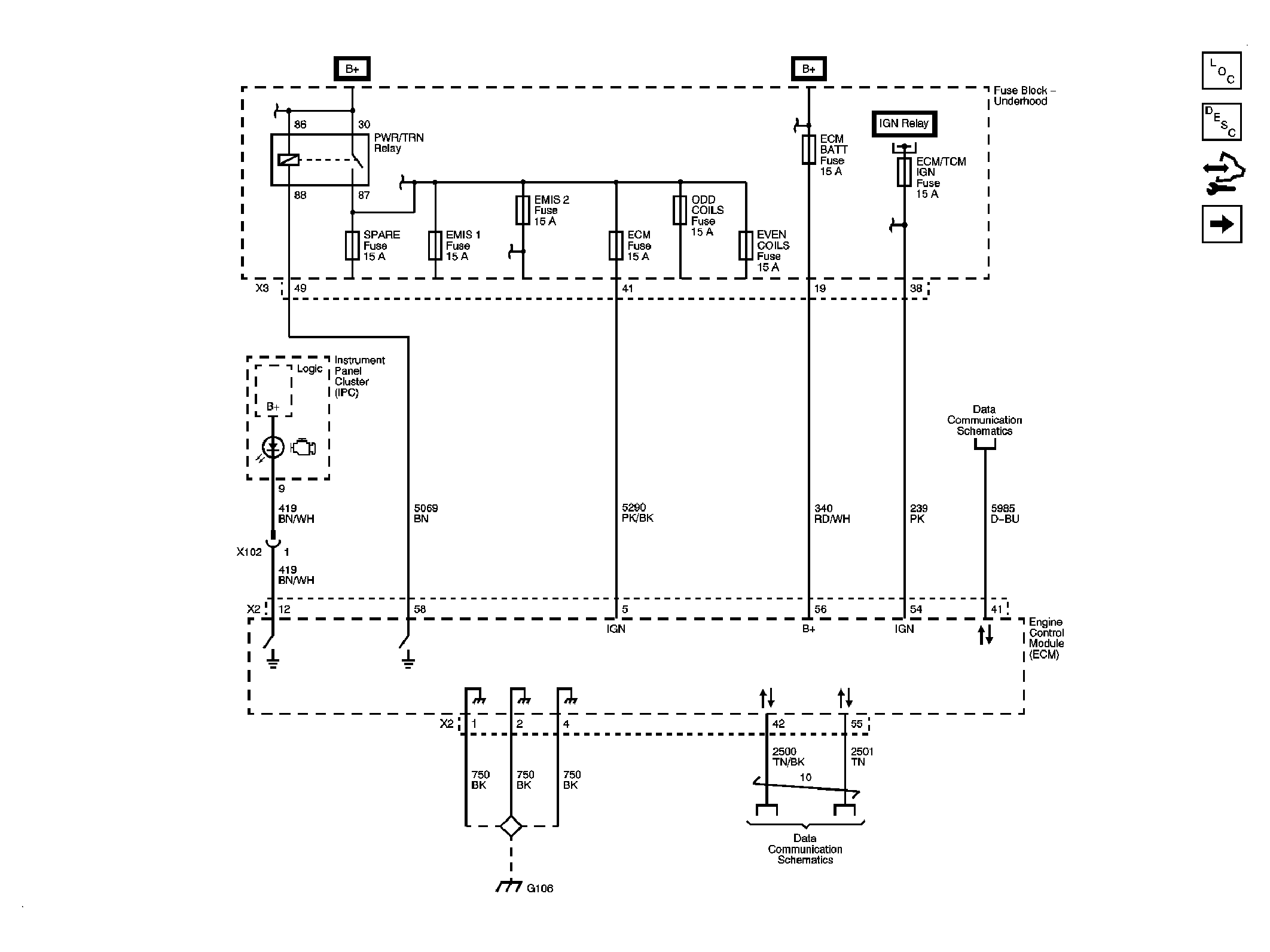

Fig 1: Module Power, Ground, Serial Data and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

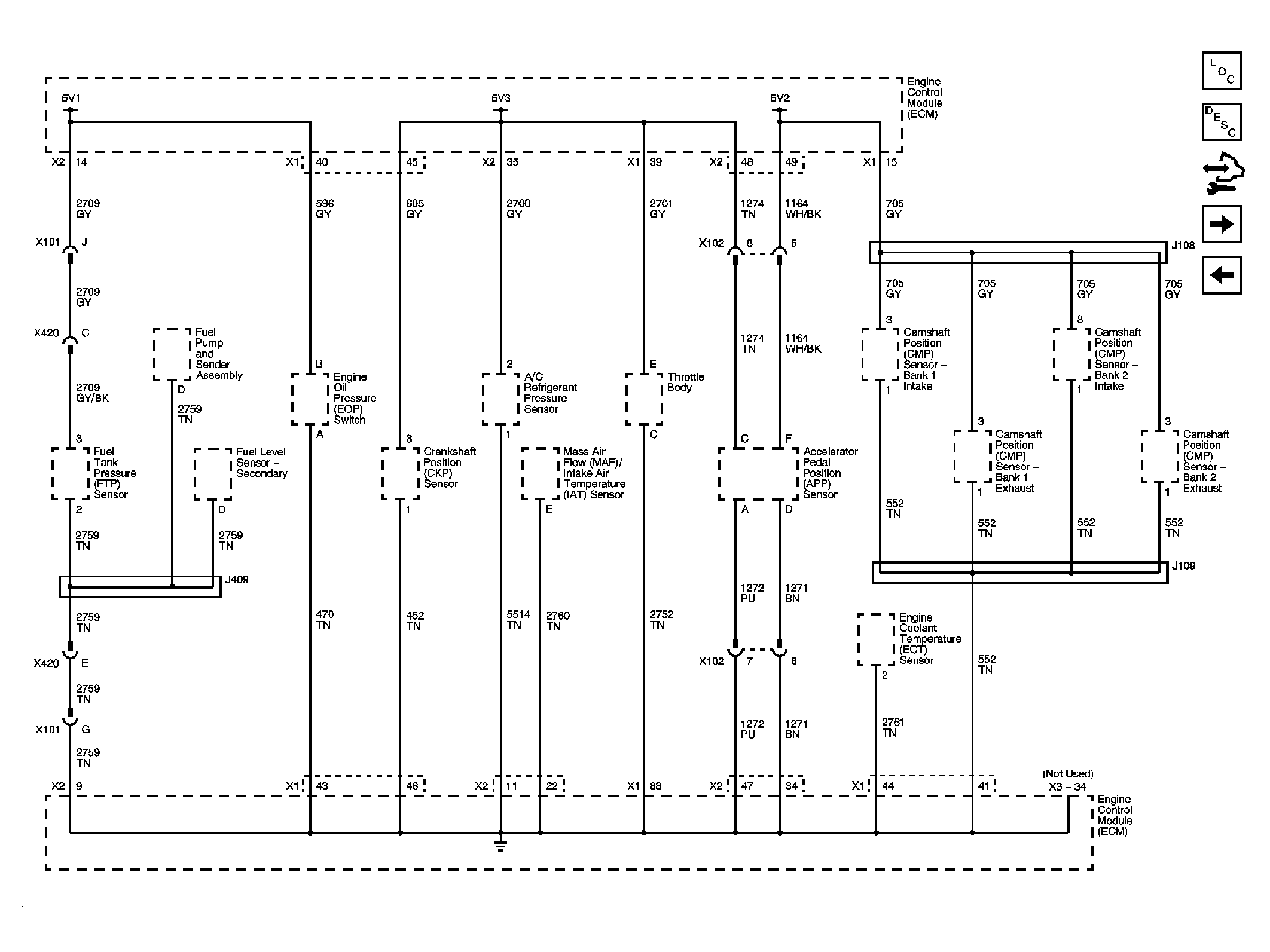

Fig 2: Engine Data Sensors - 5-Volt Reference Schematic

Courtesy of GENERAL MOTORS CORP.

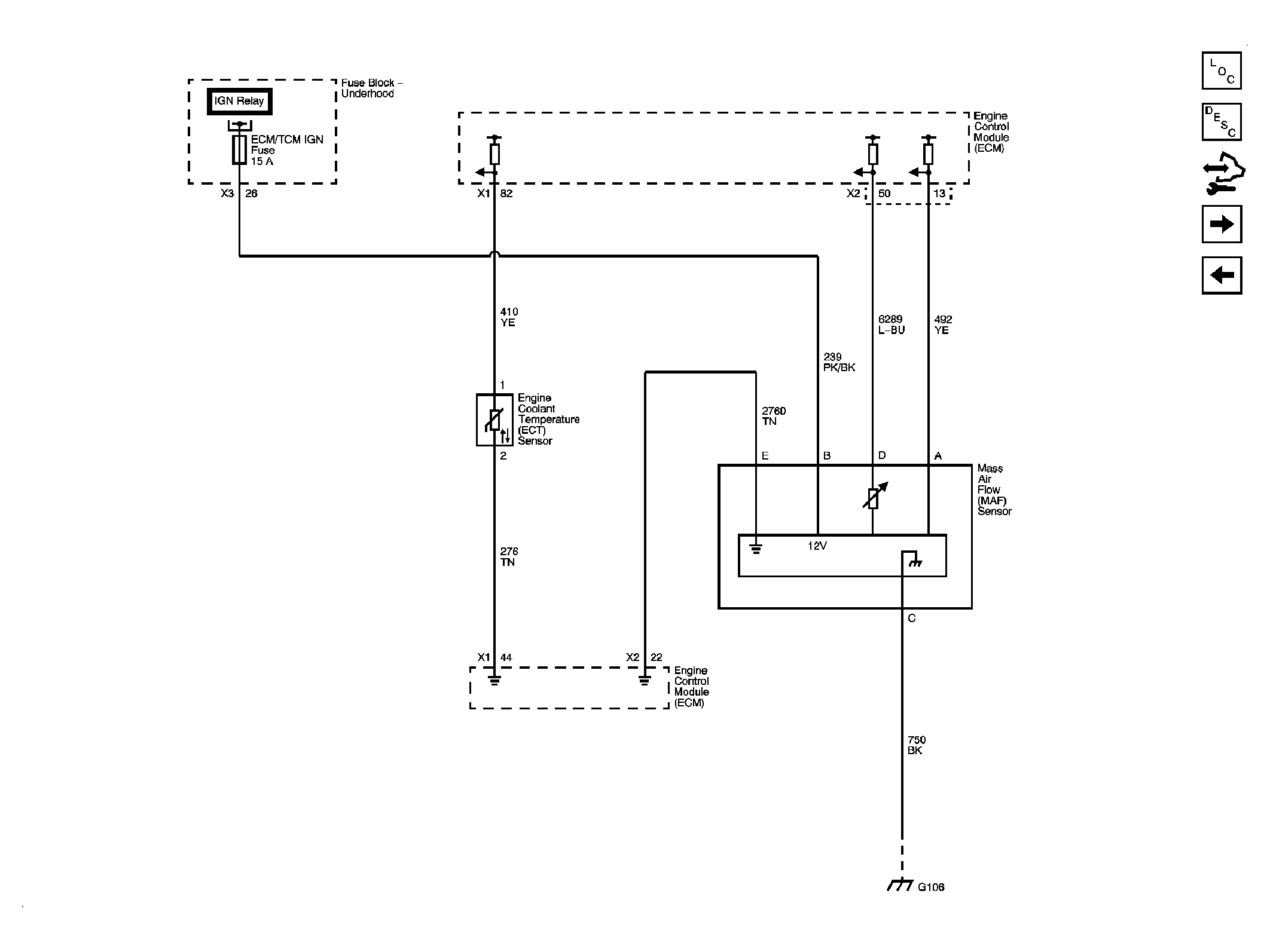

Fig 3: Engine Data Sensors - MAF and Engine Coolant Temperature Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

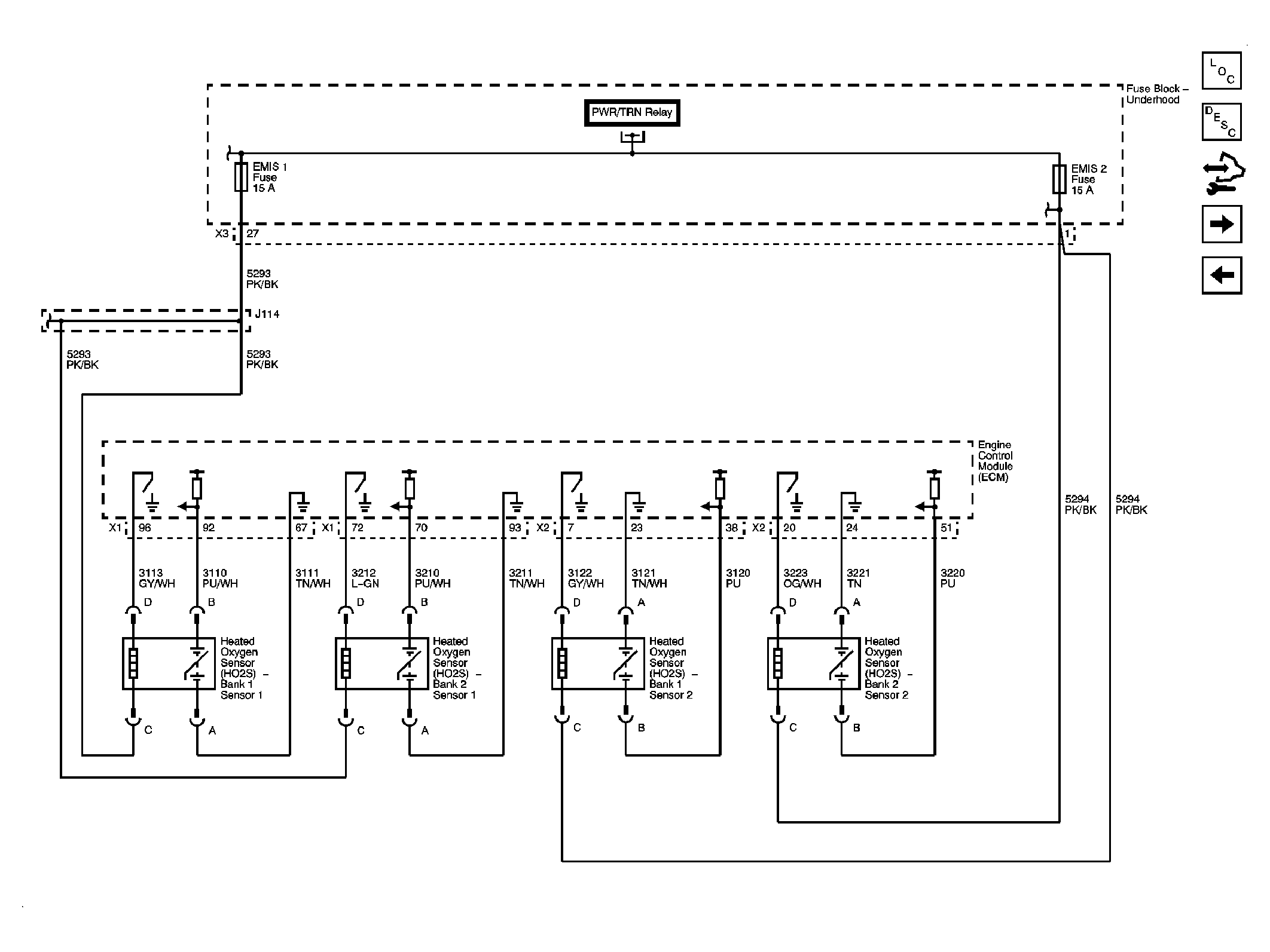

Fig 4: Engine Data Sensors - Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

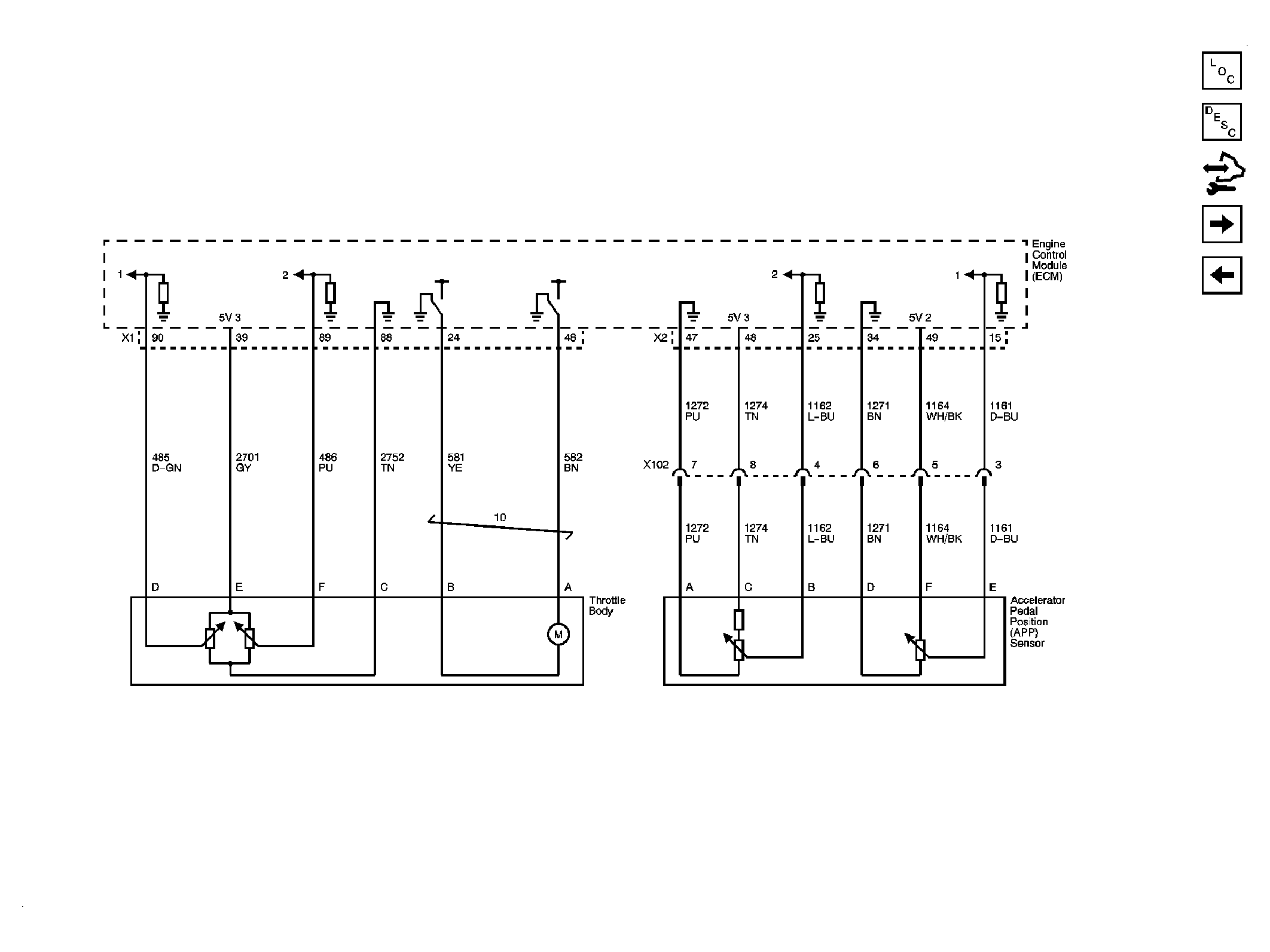

Fig 5: Engine Data Sensors - Throttle Body Schematic

Courtesy of GENERAL MOTORS CORP.

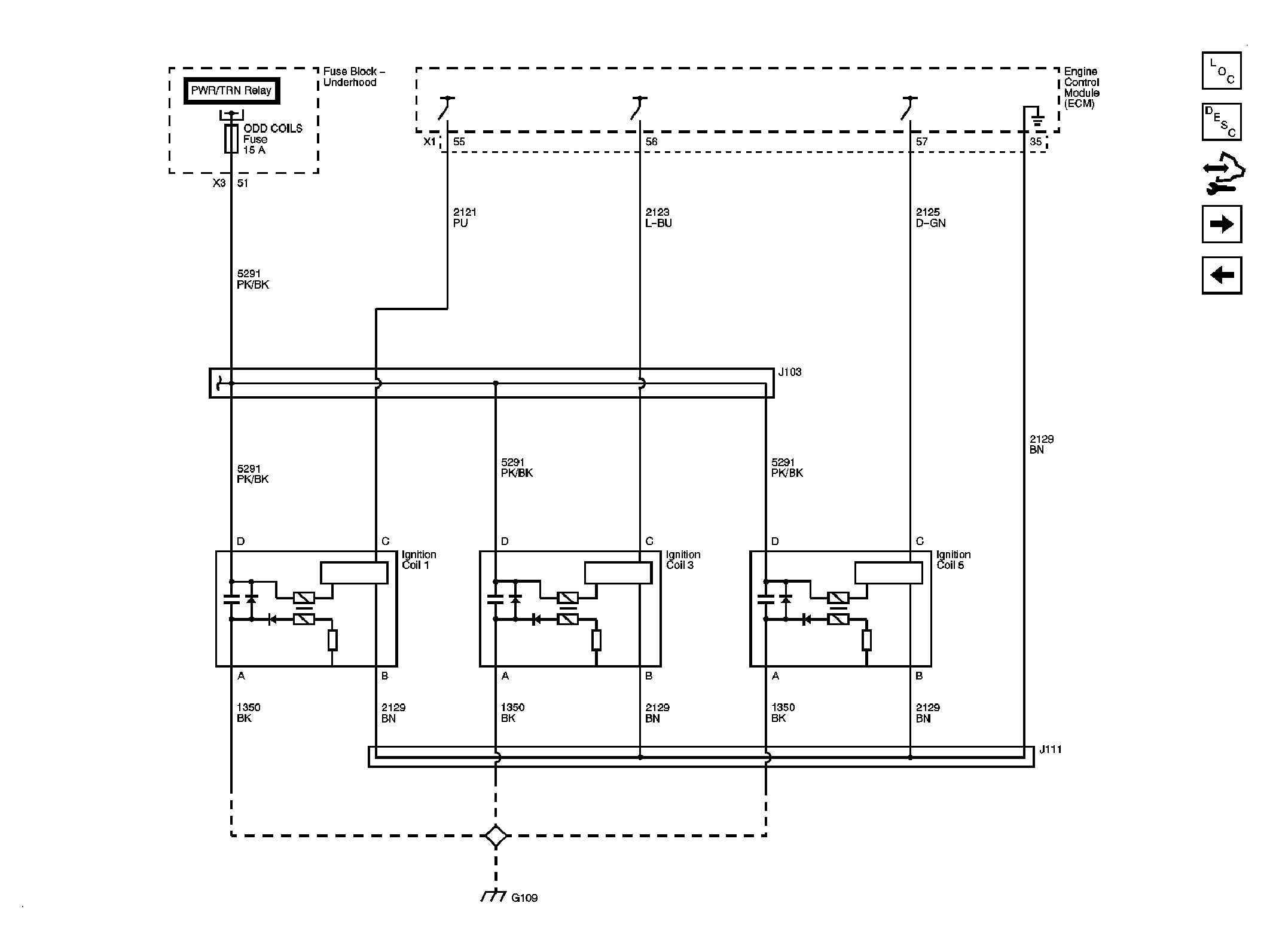

Fig 6: Ignition Controls - Bank 1 Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

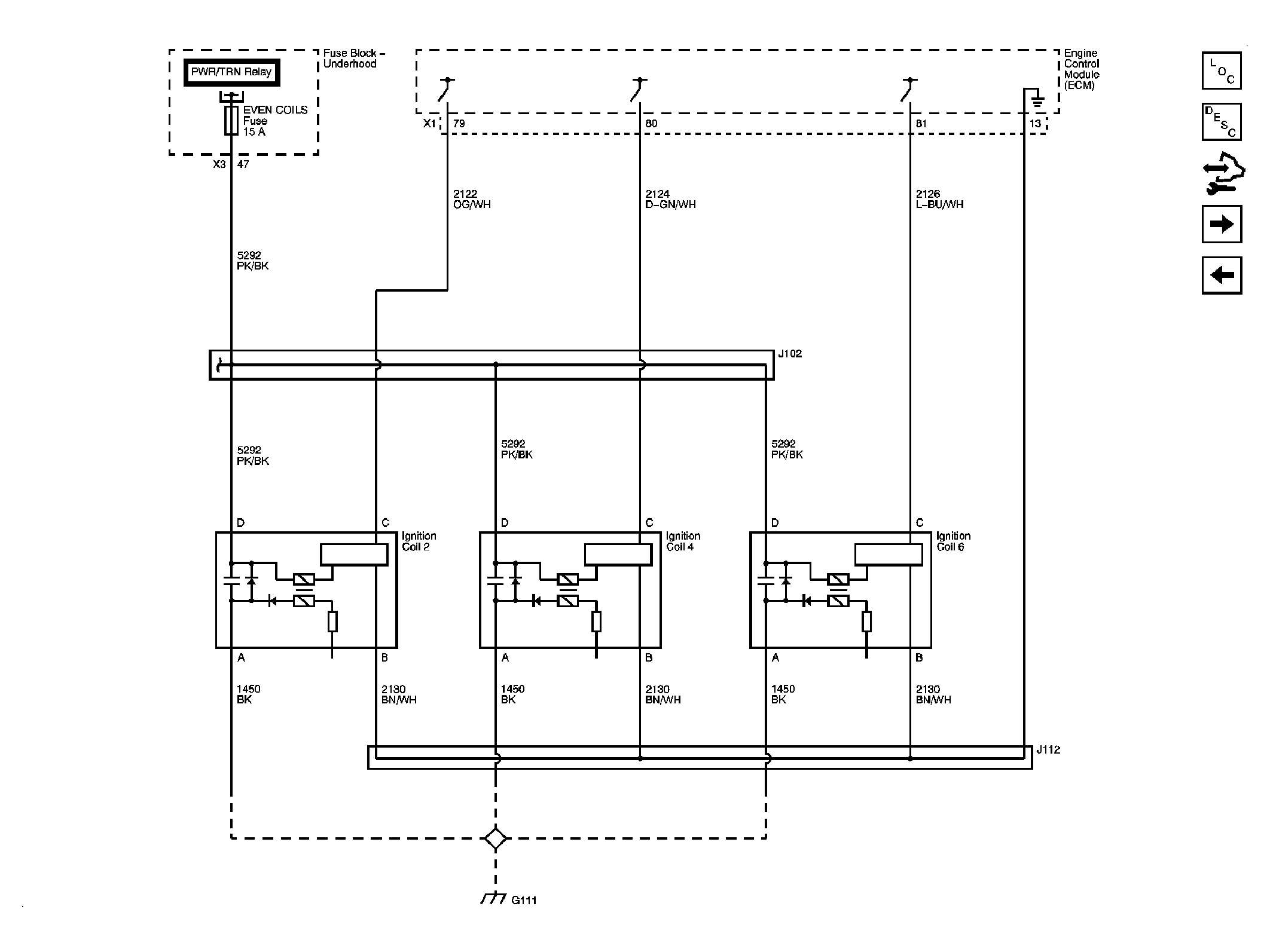

Fig 7: Ignition Controls - Bank 2 Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

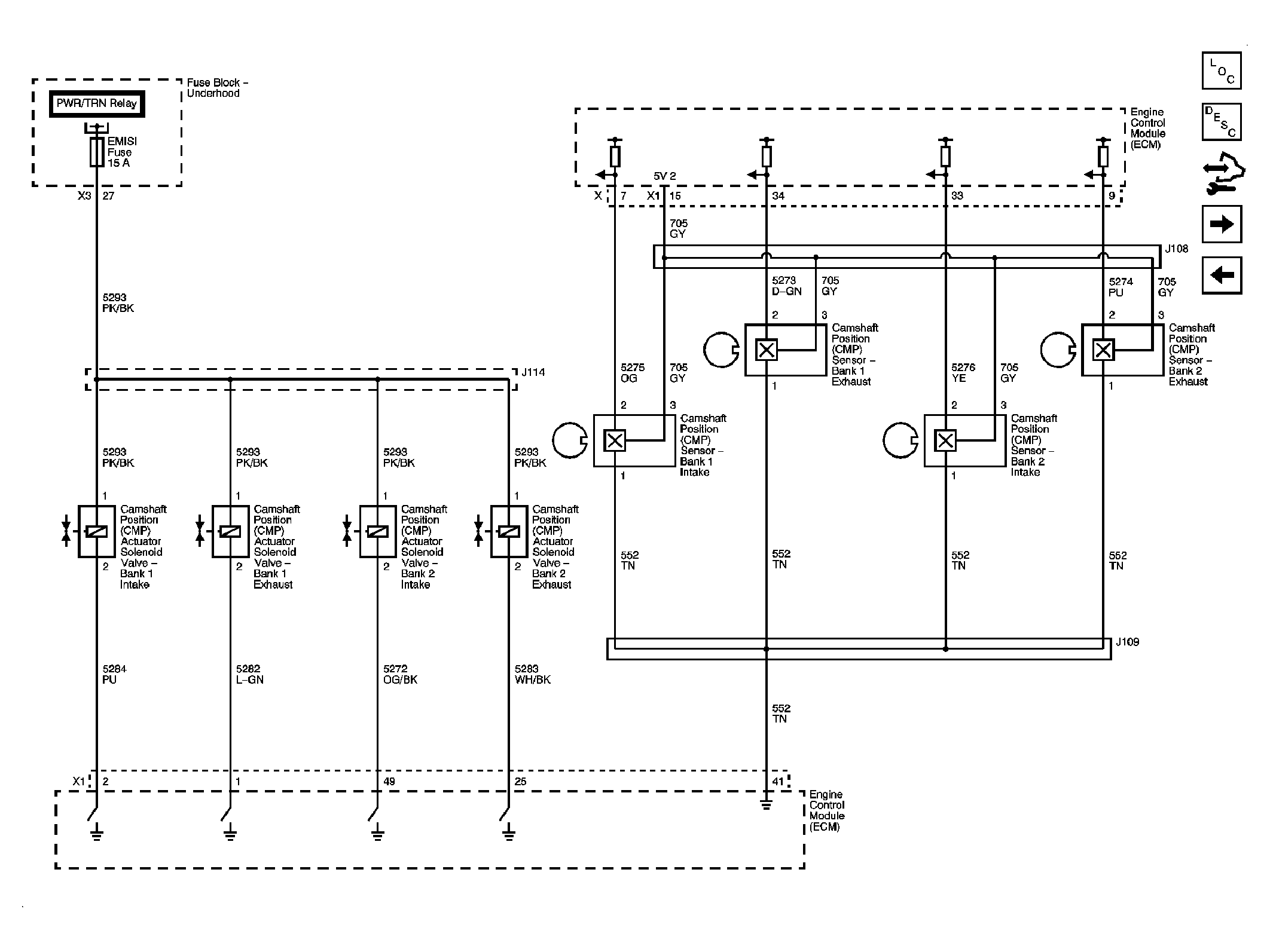

Fig 8: Ignition Controls - CMP Sensors and Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

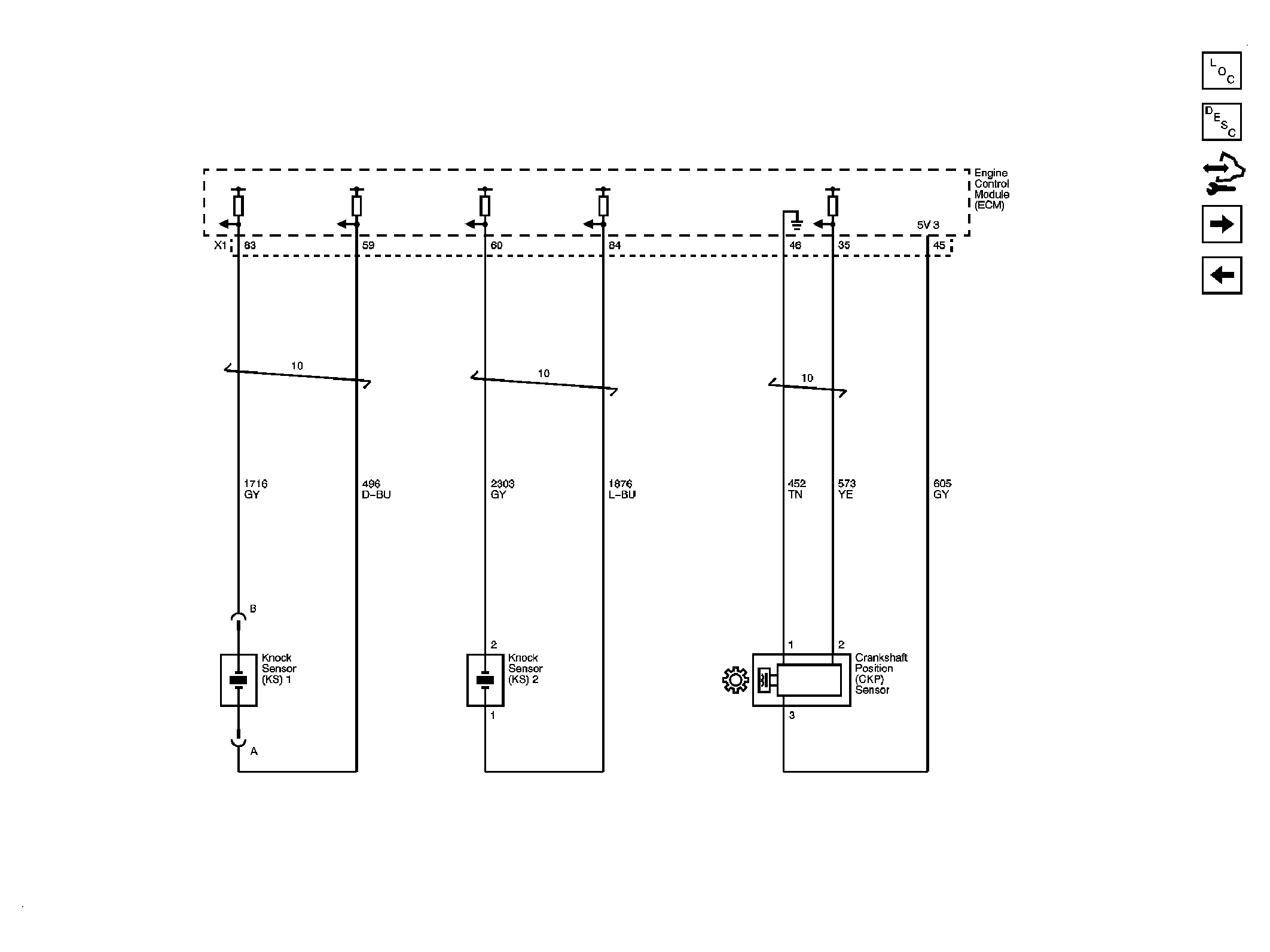

Fig 9: Ignition Controls - Crankshaft Position (CKP) and Knock Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

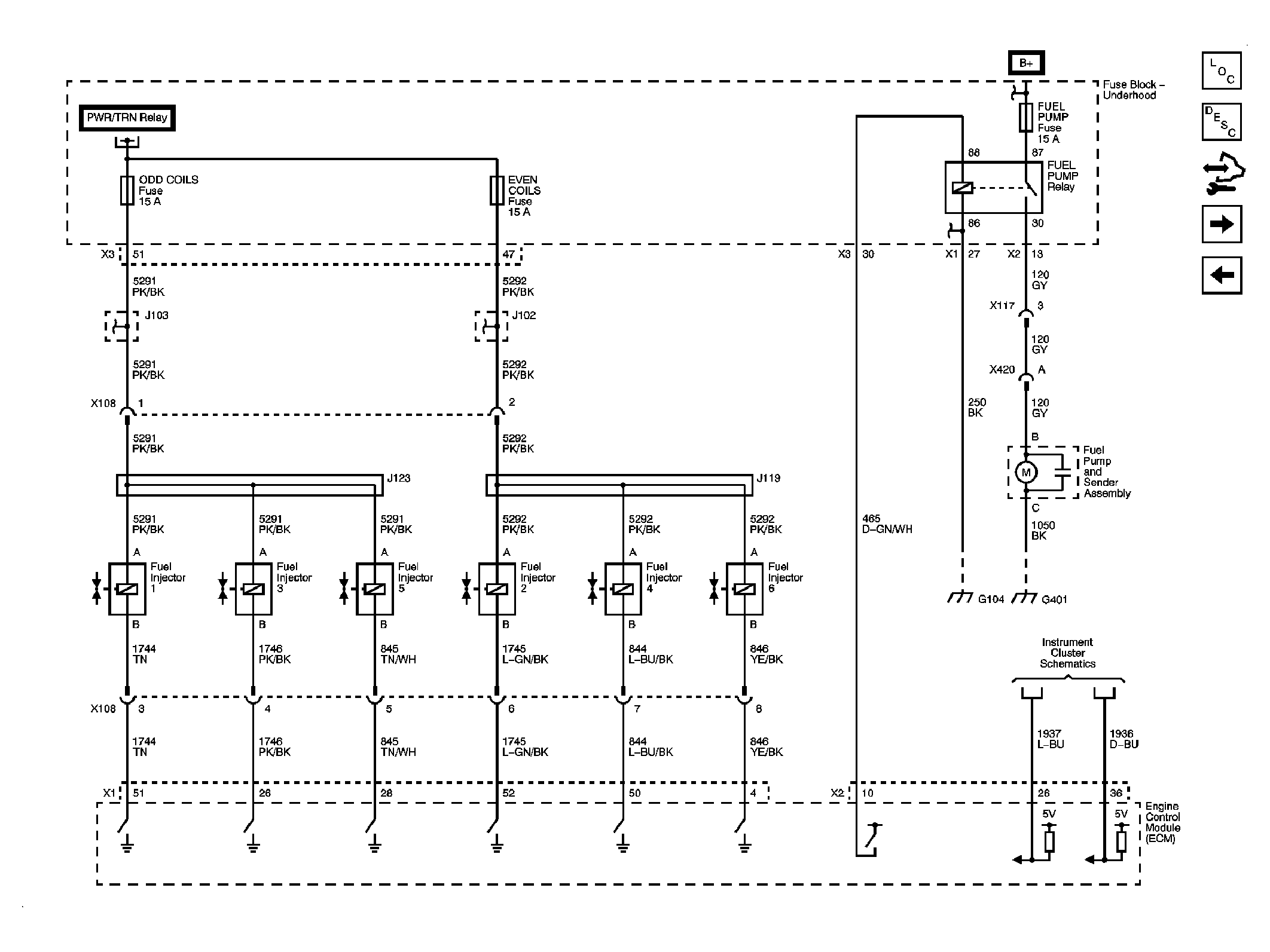

Fig 10: Fuel Controls - Fuel Pump and Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

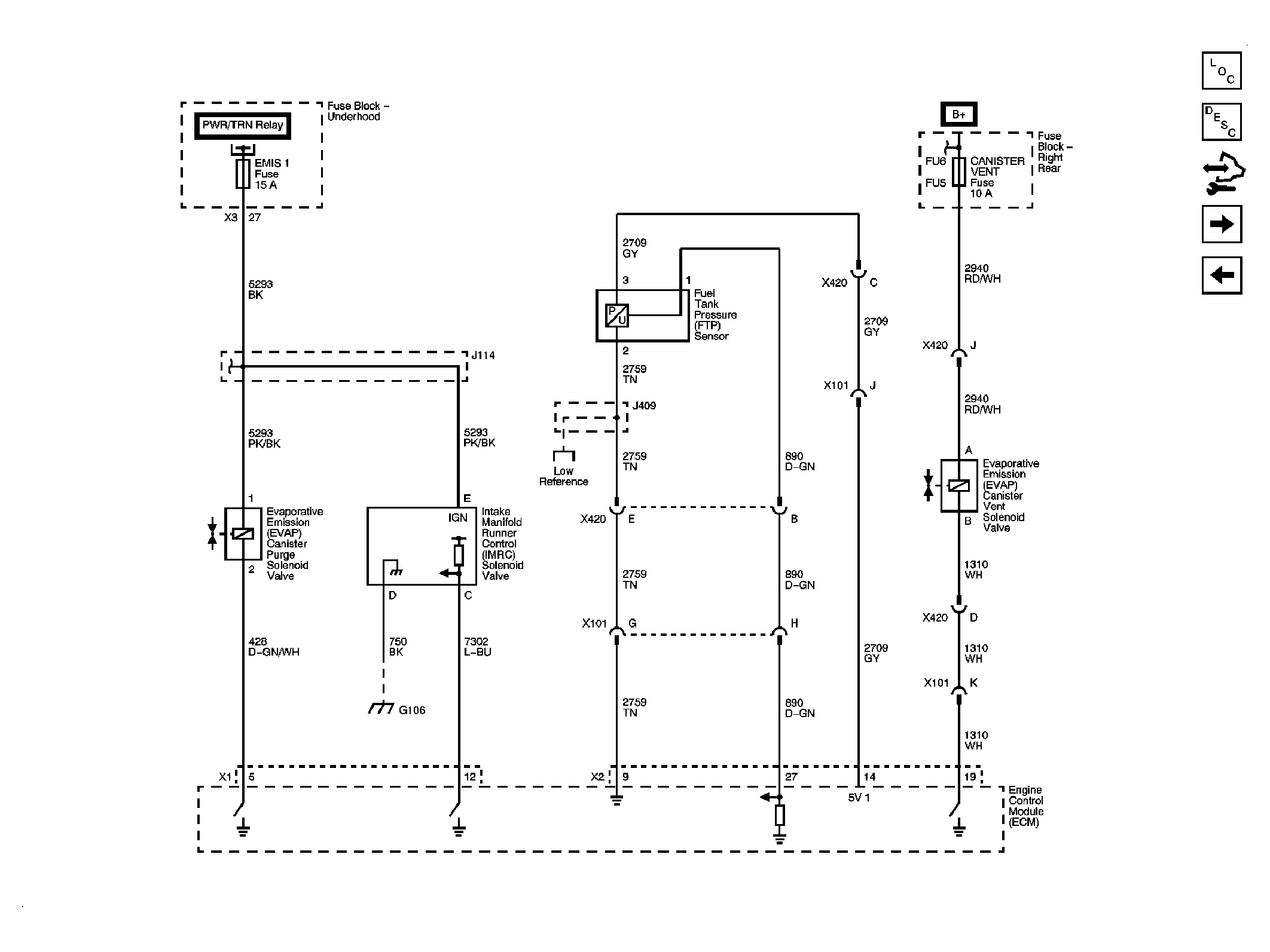

Fig 11: Fuel Controls - EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

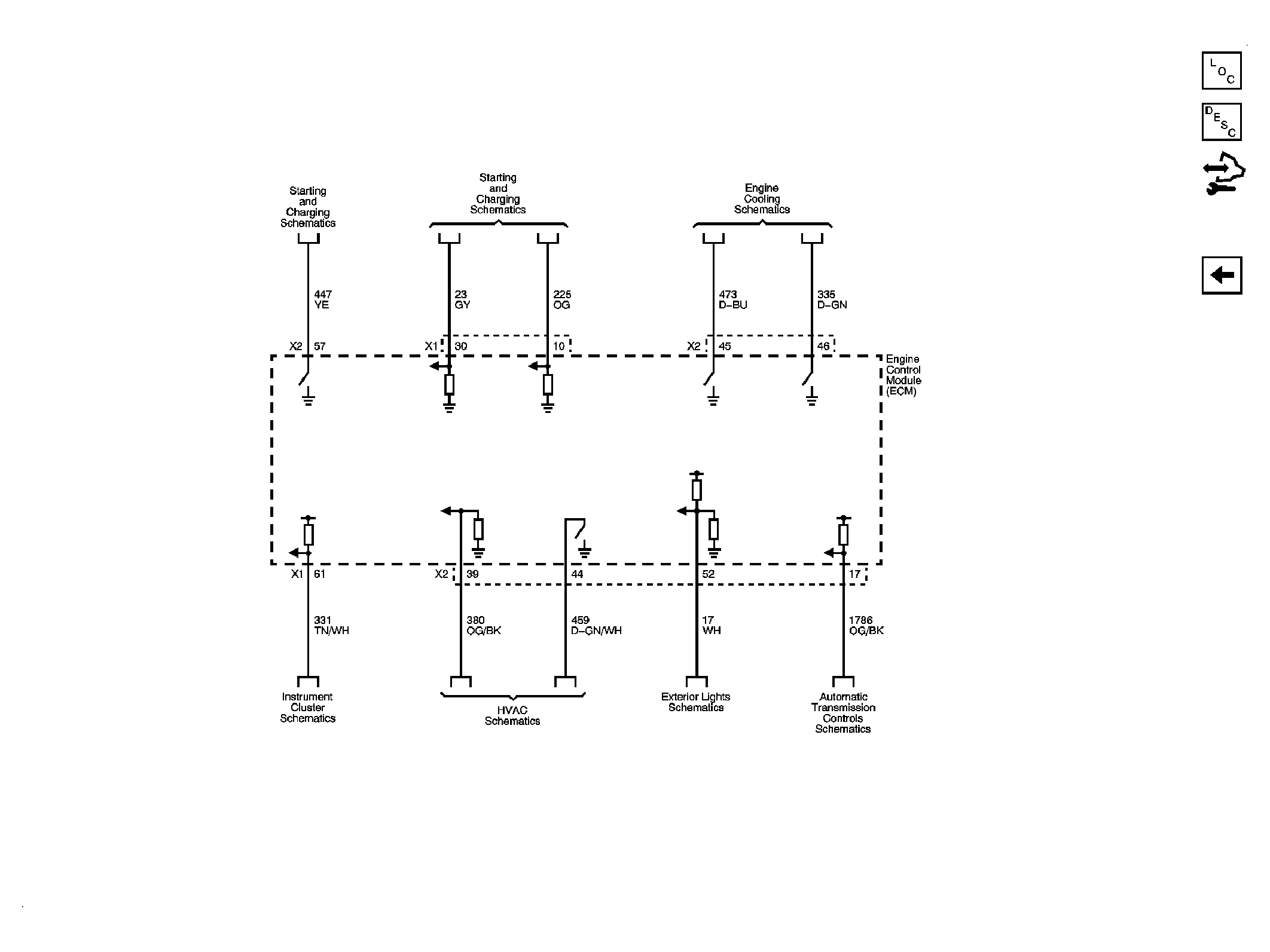

Fig 12: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
