Air Cleaner Assembly Replacement

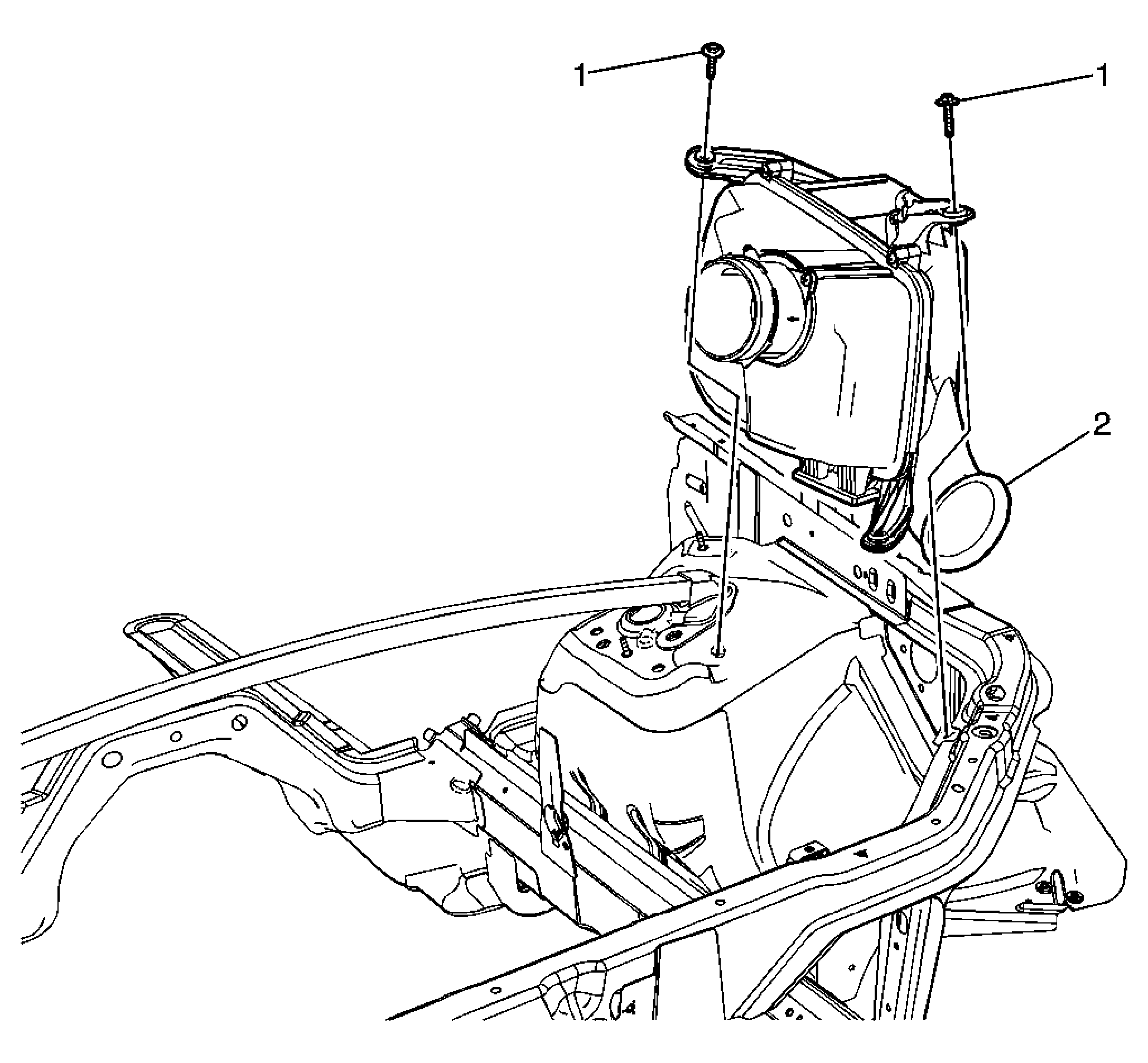

Fig 1: Identifying Air Cleaner Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the air cleaner outlet duct from the vehicle. Refer to Air Cleaner Outlet Duct Replacement Remove the MAF/IAT sensor if necessary. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement
1	Air Cleaner Assembly Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10N.m(89 lb in)
2	Air Cleaner Assembly Procedure: Disconnect the electrical sensor.

Callout

Component Name

Preliminary Procedure

Remove the air cleaner outlet duct from the vehicle. Refer to Air Cleaner Outlet Duct Replacement
Remove the MAF/IAT sensor if necessary. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Air Cleaner Assembly Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 10N.m(89 lb in)

Air Cleaner Assembly
Procedure:
Disconnect the electrical sensor.
