Manifold Absolute Pressure Sensor Replacement

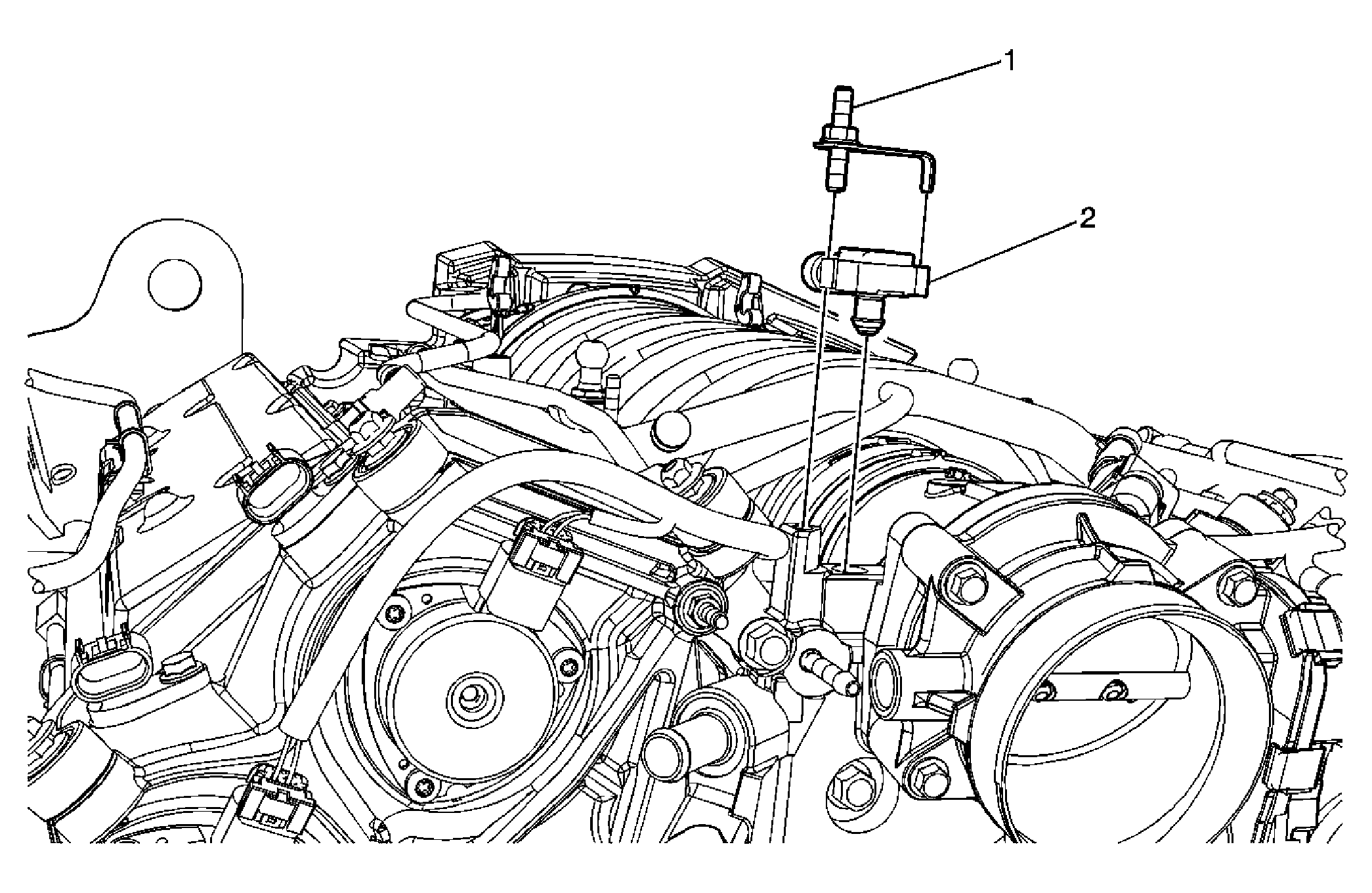

Fig 1: Identifying Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement
1	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution Tighten: 12N.m(106 lb in)
2	Manifold Absolute Pressure Sensor Procedure: Disconnect the electrical sensor.
