Steering Wheel Heater Control Module




Component Connector End Views

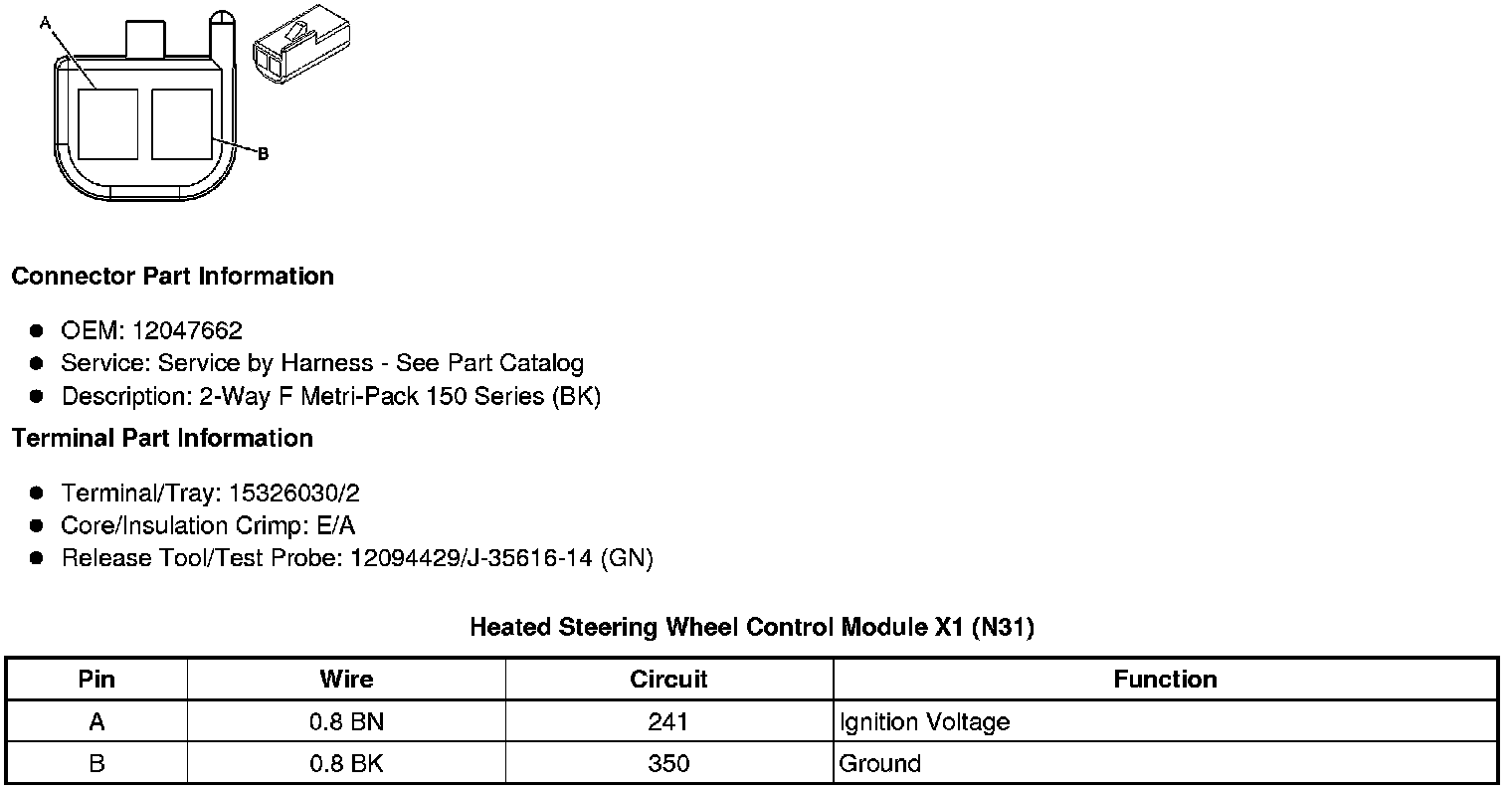

Heated Steering Wheel Control Module X1 (N31)

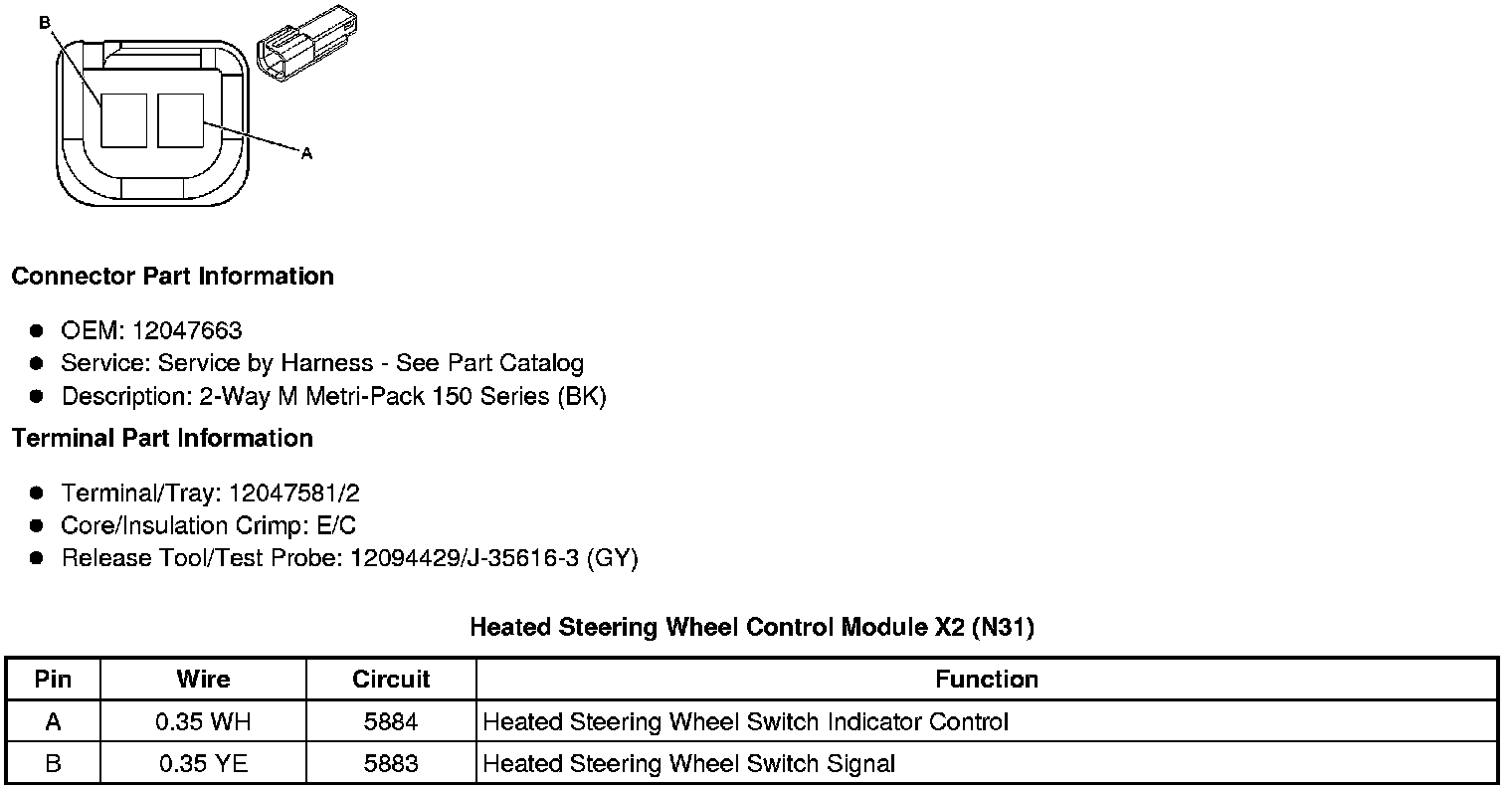

Heated Steering Wheel Control Module X2 (N31)
