Powertrain Component Views




Powertrain Component Views

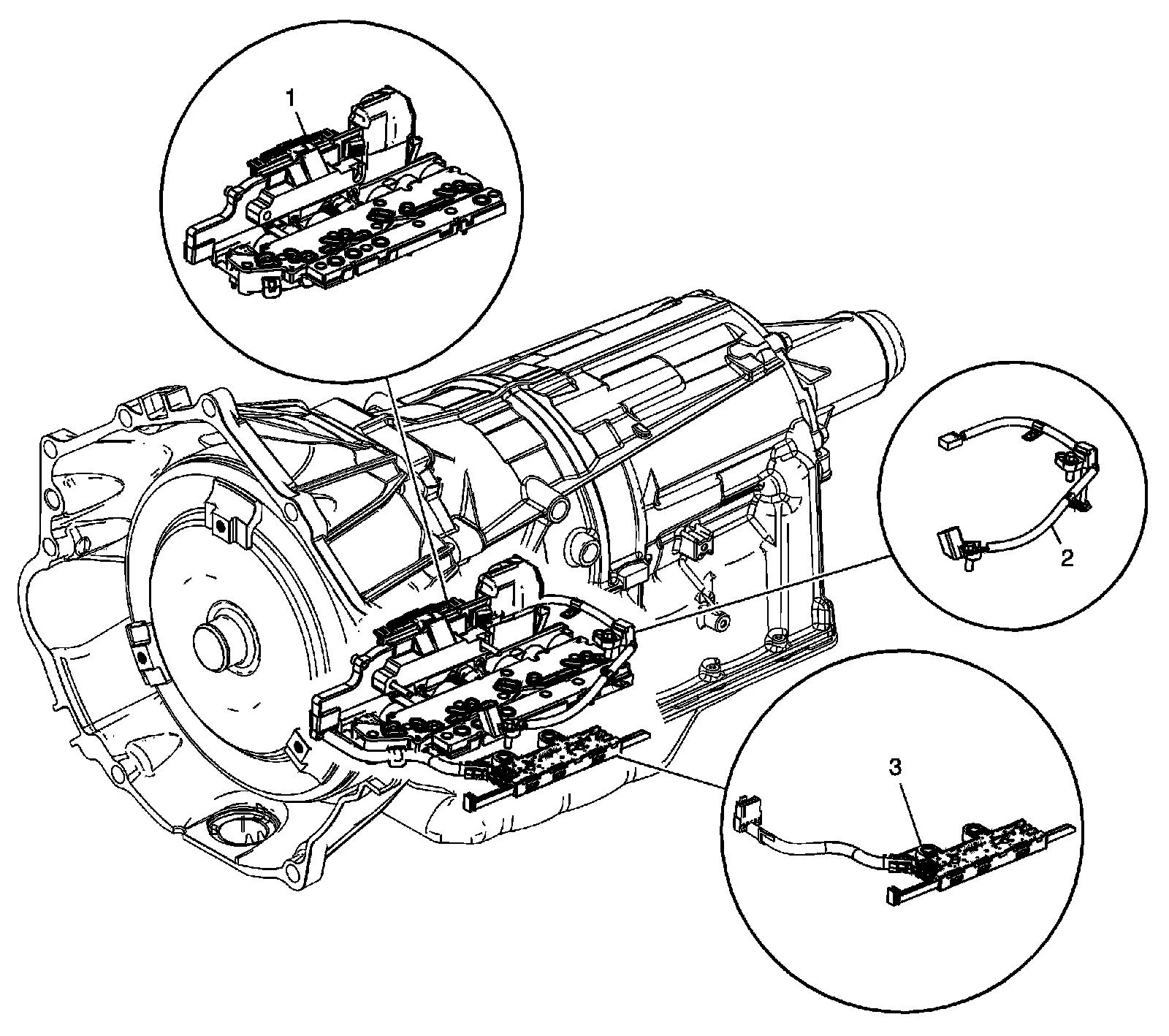

Transmission Electronic Components




1 - Control Solenoid (with Body and TCM) Valve Assembly
2 - Automatic Transmission Input Shaft and Output Shaft Speed Sensor Assembly
3 - Automatic Transmission Manual Shift Shaft Position Switch Assembly
