System Specifications

TIMING CHAIN/BELT TENSIONER

Primary Camshaft Drive Chain
Tensioner Bolt 23 Nm (17 lb ft)

Secondary Camshaft Drive Chain
Tensioner Bolt 23 Nm (17 lb ft)

CRANKSHAFT PULLEY

Crankshaft Balancer Bolt
First Pass 100 Nm (74 lb ft)
Final Pass 150 Degrees

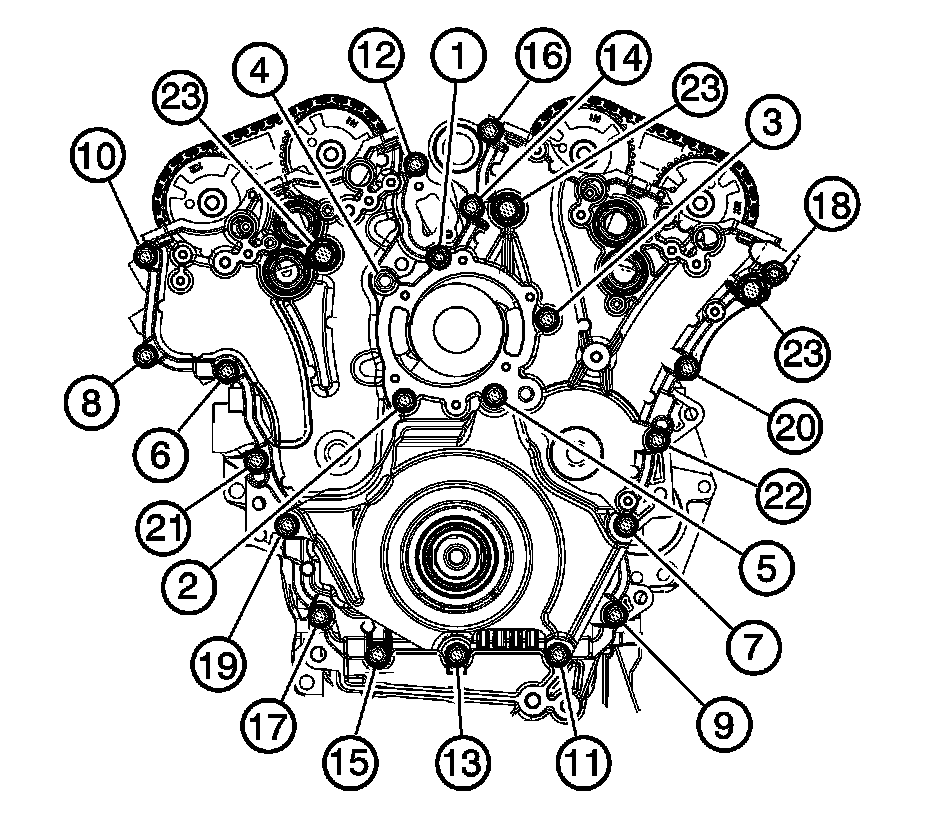

TIMING COVER




Engine Front Cover Bolt 23 Nm (17 lb ft)
