Map Light




Component Connector End Views

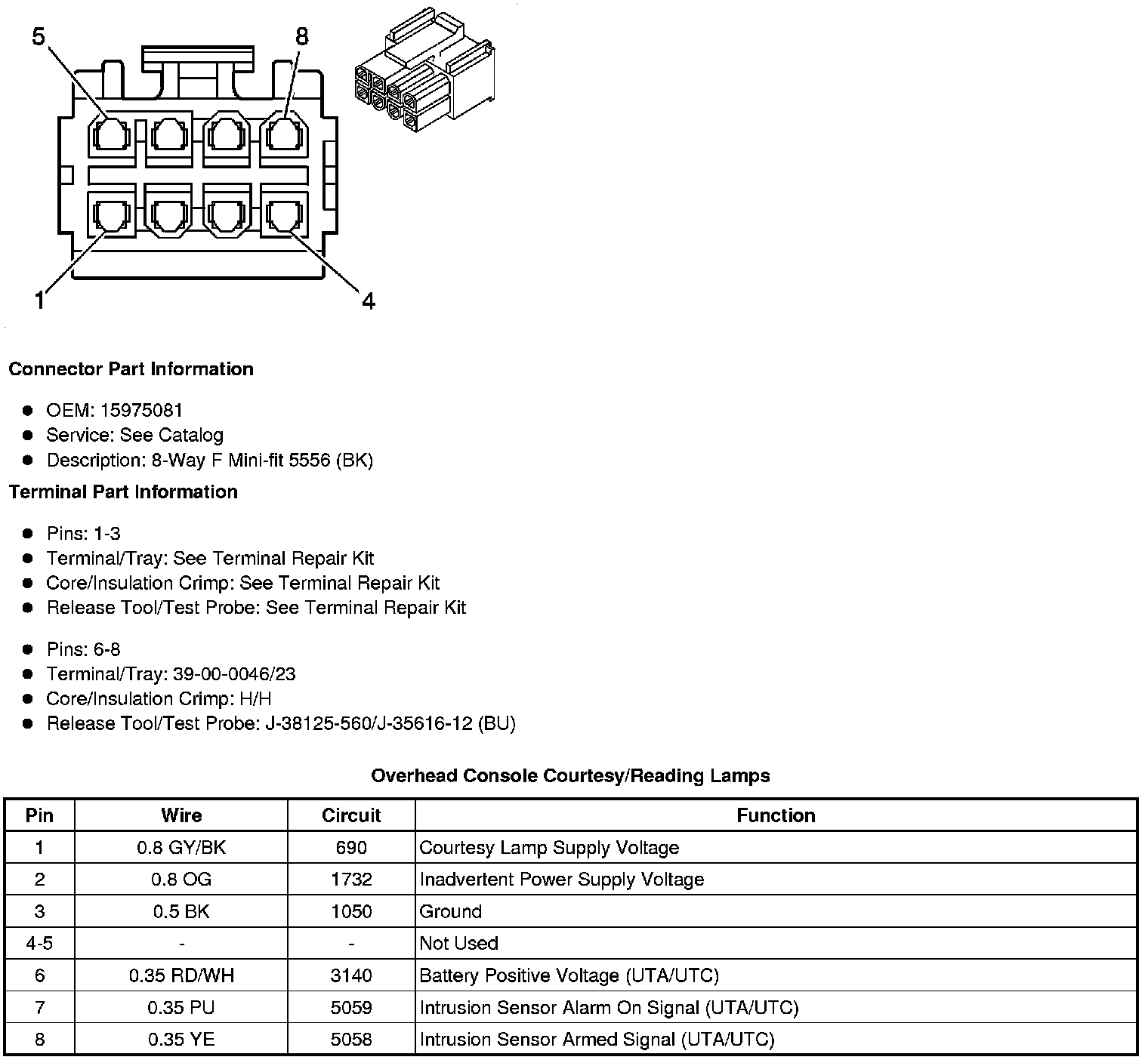

Overhead Console Courtesy/Reading Lamps

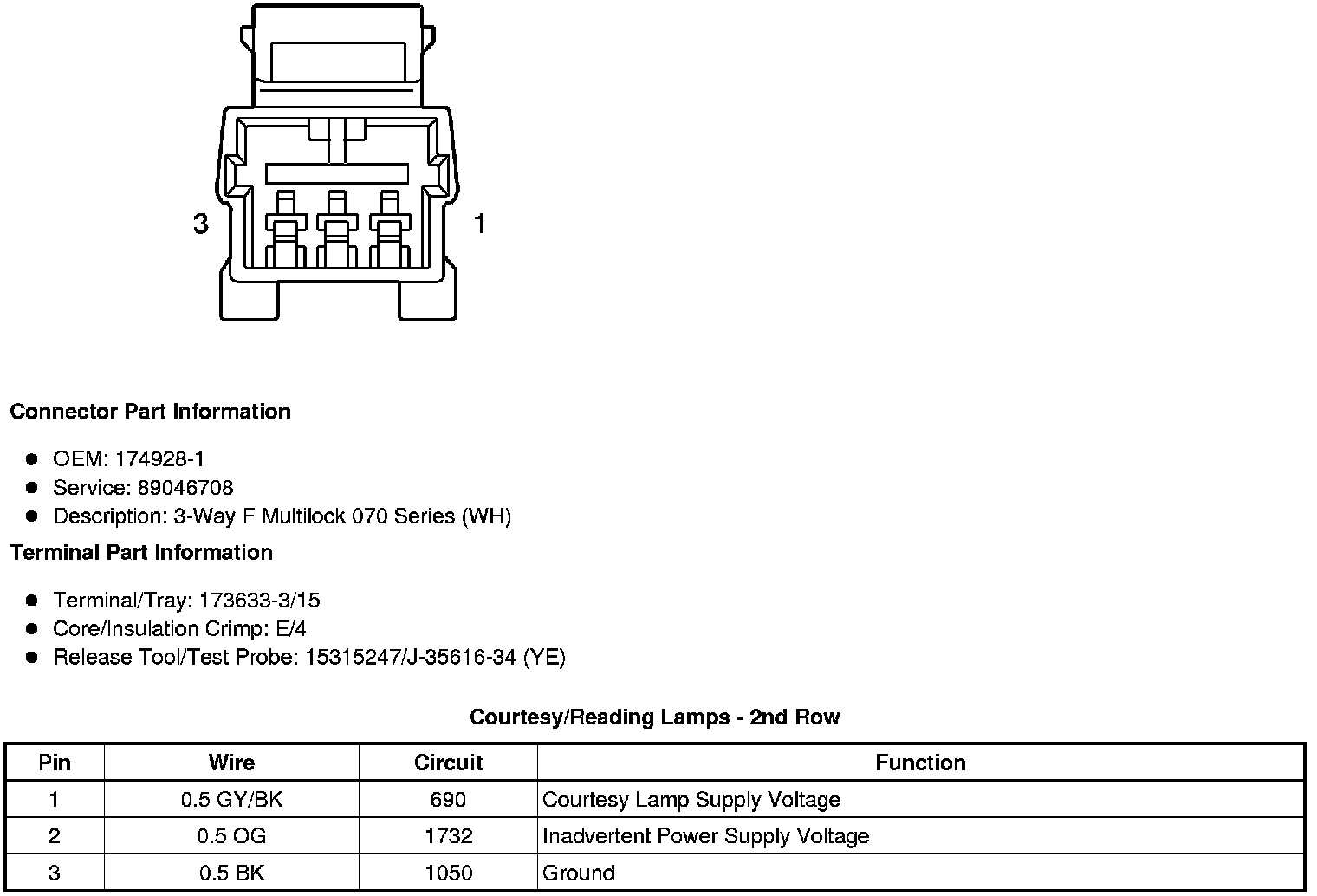

Courtesy/Reading Lamps - 2nd Row

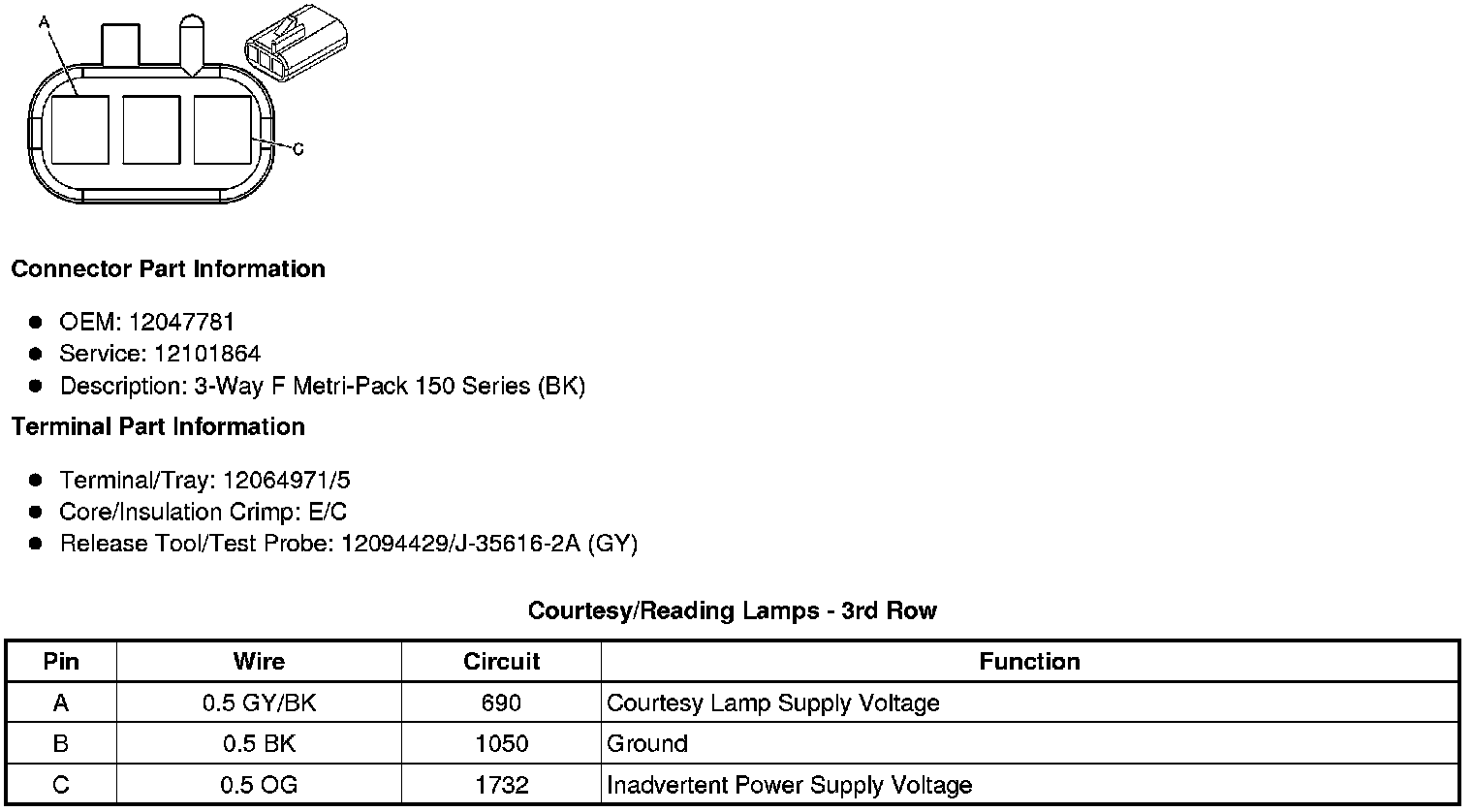

Courtesy/Reading Lamps - 3rd Row
