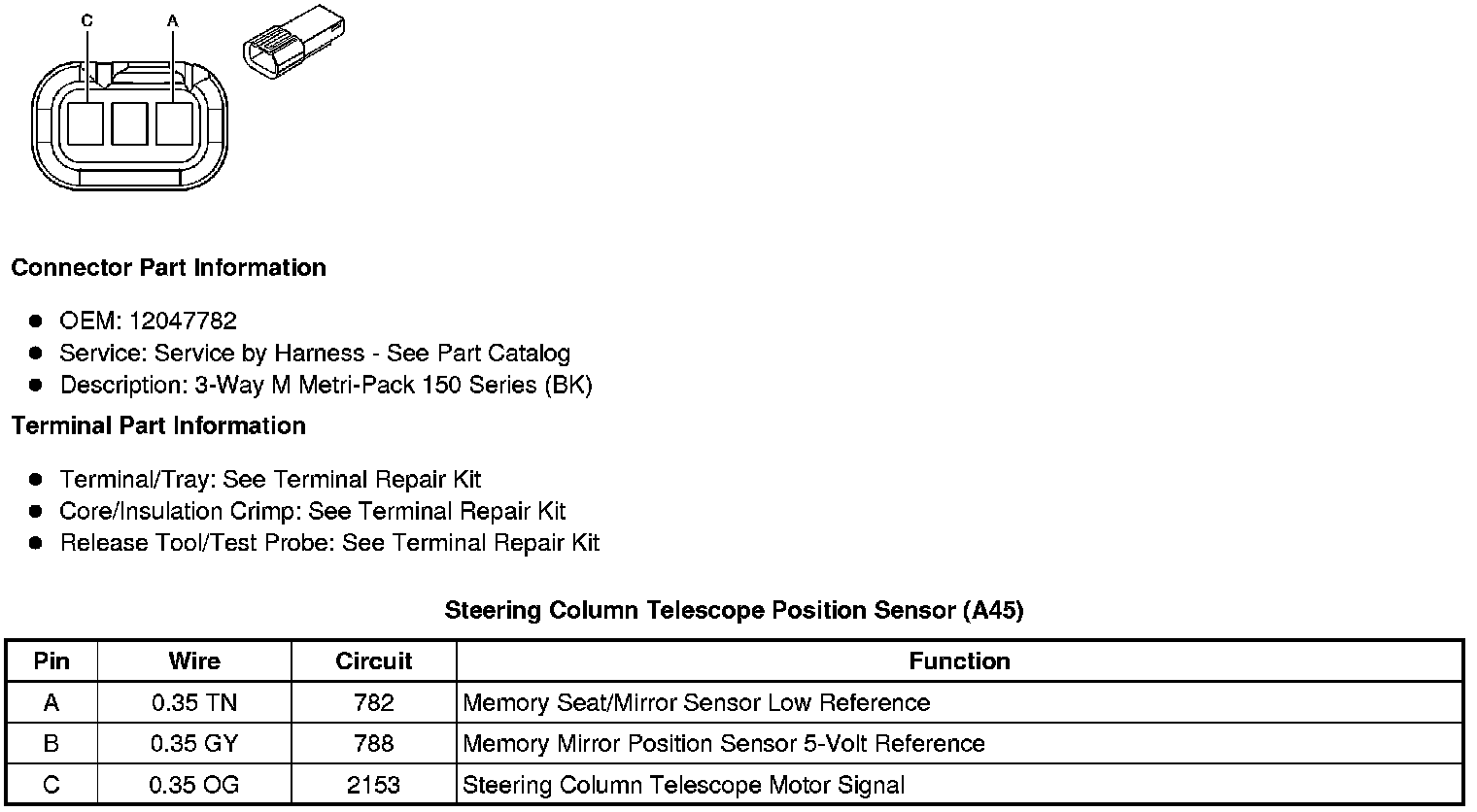

Telescoping Wheel Position Sensor
Component Connector End Views
Steering Column Telescope Position Sensor (A45)
