Telescoping Wheel Switch




Component Connector End Views

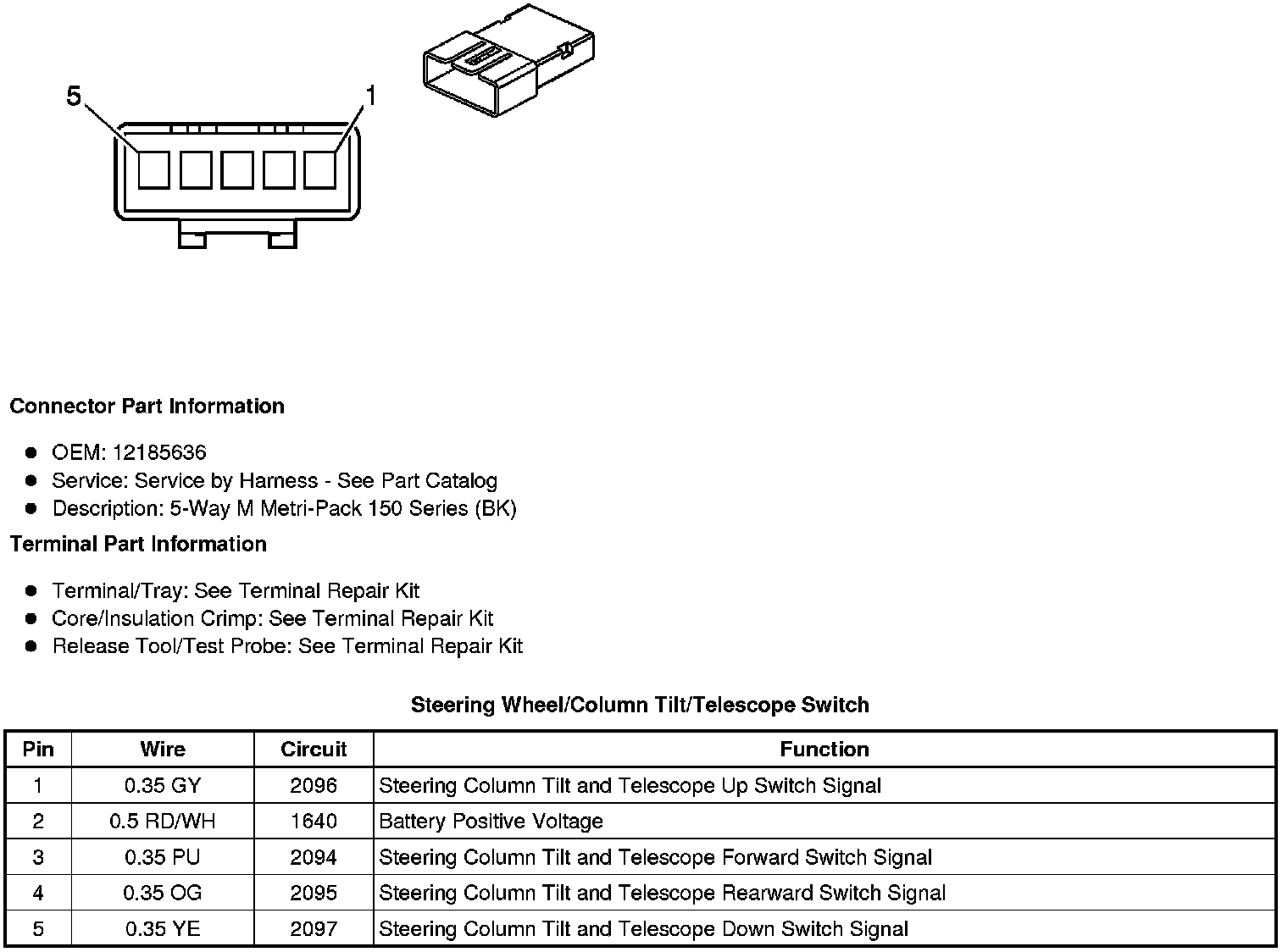

Steering Wheel/Column Tilt/Telescope Switch

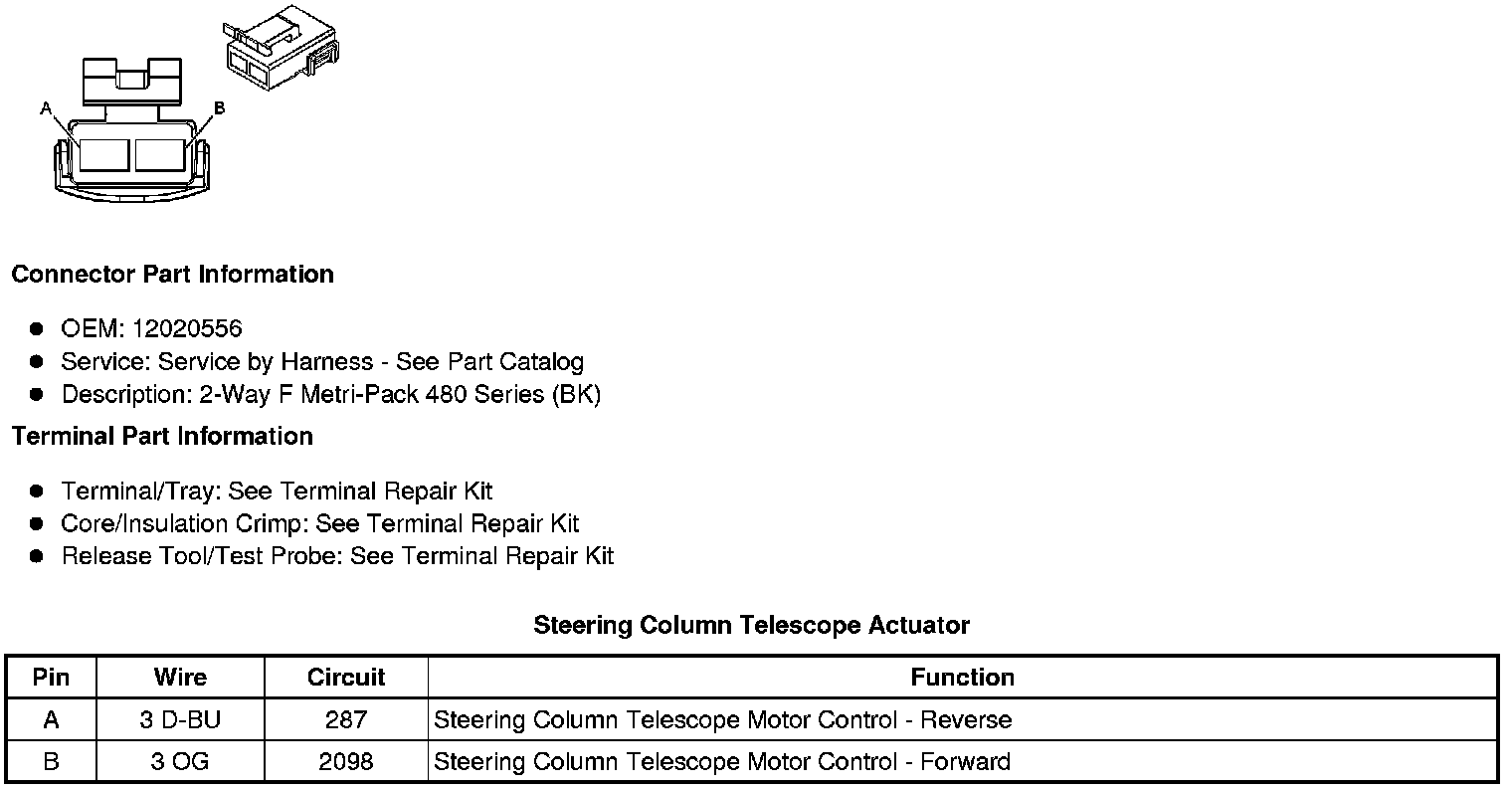

Steering Column Telescope Actuator
