Generator Bracket Replacement




Generator Bracket Replacement (LH2) (4.6L)

Removal Procedure




1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Side Post) (Service and Repair)Battery Negative Cable Disconnection and Connection (LHD With Top Post) (Service and Repair).
2. Remove the generator. Refer to Generator Replacement (LLT) (Generator Replacement)Generator Replacement (LH2 /AWD) (Generator Replacement)Generator Replacement (LH2) (Generator Replacement)Generator Replacement (LC3) (Generator Replacement).
3. Remove the generator drive belt tensioner. Refer to Drive Belt Tensioner Replacement - Generator (Drive Belt Tensioner Replacement - Generator).
4. Remove the right side engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side (with AWD) (Service and Repair)Engine Mount Bracket Replacement - Right Side (RWD) (Service and Repair).

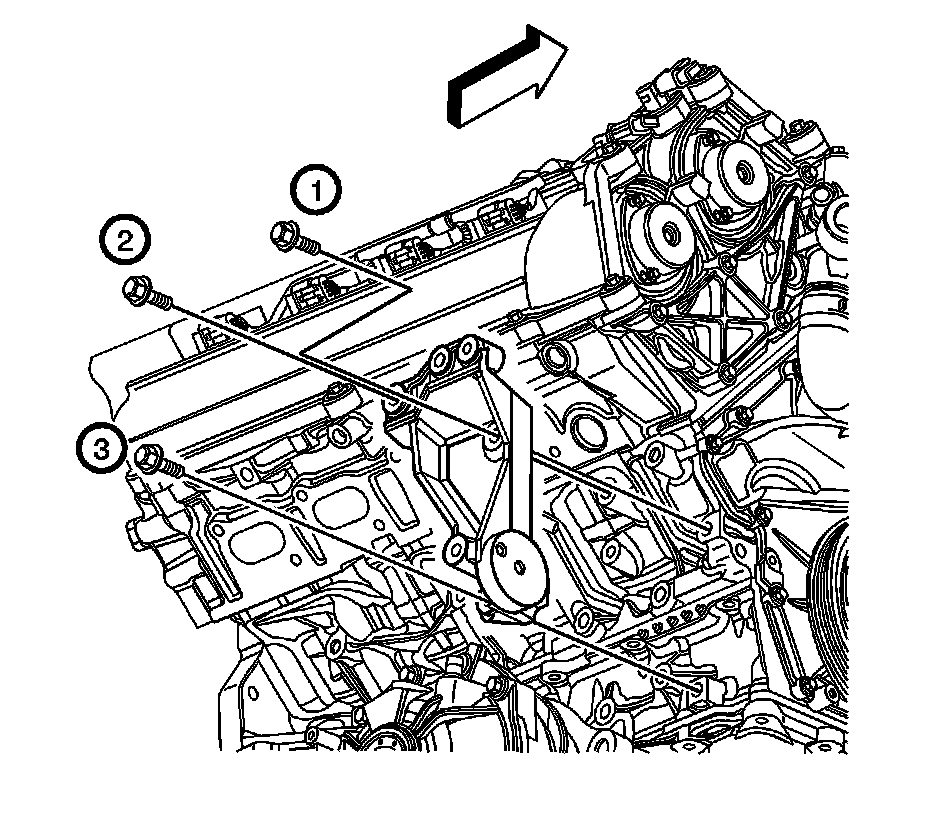

5. Remove the generator bracket bolts (1, 2 and 3).
6. Remove the generator bracket from the engine.

Installation Procedure




1. Install the generator bracket to the engine.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the generator bracket bolts and tighten to 50 Nm (37 lb ft).
3. Install the right side engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side (with AWD) (Service and Repair)Engine Mount Bracket Replacement - Right Side (RWD) (Service and Repair).
4. Install the generator drive belt tensioner. Refer to Drive Belt Tensioner Replacement - Generator (Drive Belt Tensioner Replacement - Generator).
5. Install the generator. Refer to Generator Replacement (LLT) (Generator Replacement)Generator Replacement (LH2 /AWD) (Generator Replacement)Generator Replacement (LH2) (Generator Replacement)Generator Replacement (LC3) (Generator Replacement).
6. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Side Post) (Service and Repair)Battery Negative Cable Disconnection and Connection (LHD With Top Post) (Service and Repair).
