Accessory AC and DC Power Control Module Replacement

WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

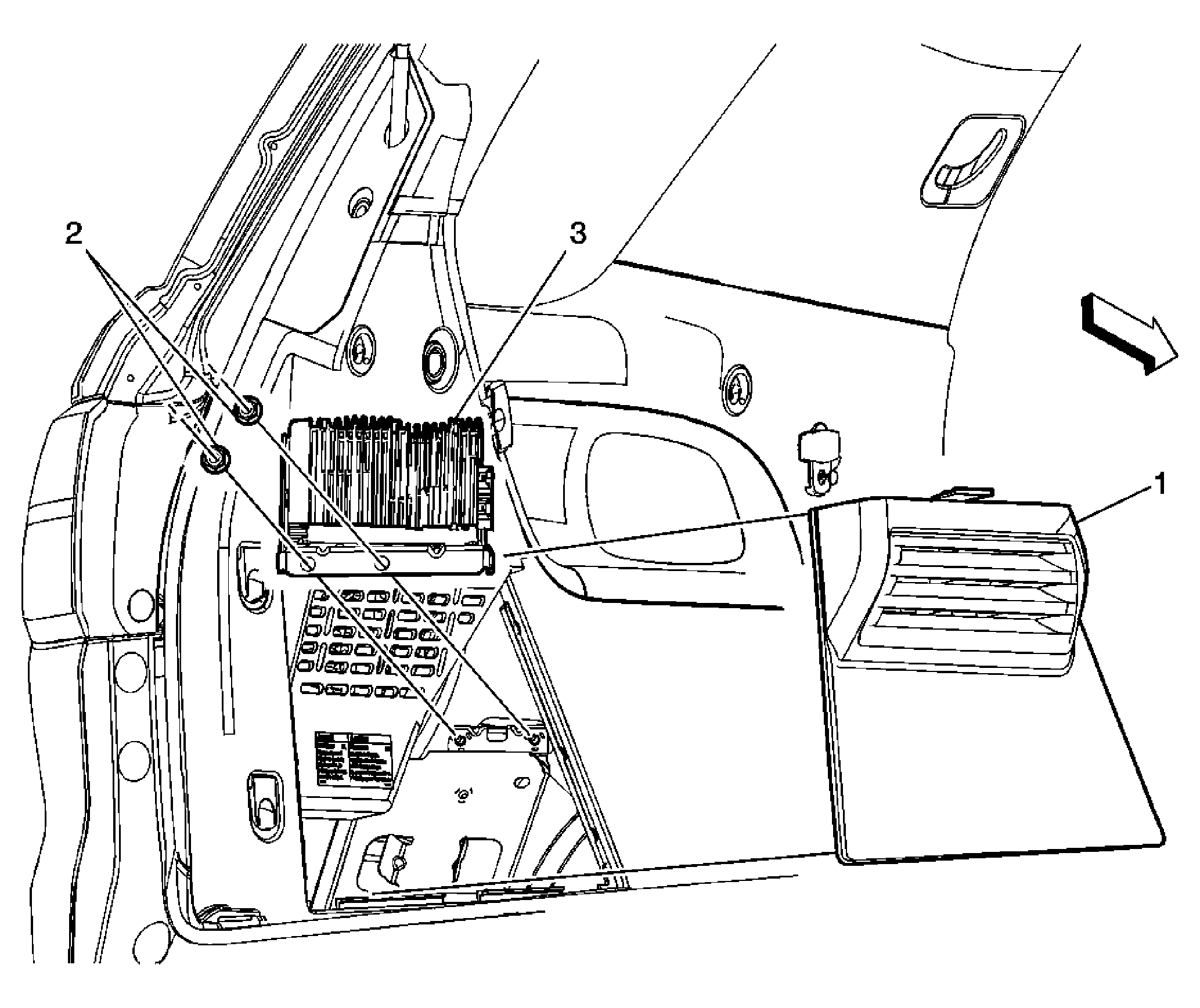

Fig 1: View Of AC/DC Power Outlet Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Side Trim Panel Stow Compartment Door Assembly
2	Accessory AC/DC Power Control Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
3	Accessory AC/DC Power Control Module Assembly Procedure Disconnect the electrical connections. Remove the jack assembly.

Callout

Component Name

Body Side Trim Panel Stow Compartment Door Assembly

Accessory AC/DC Power Control Module Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Accessory AC/DC Power Control Module Assembly

Procedure

Disconnect the electrical connections.
Remove the jack assembly.
