Installation Procedure

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying BPMV Insulators

Courtesy of GENERAL MOTORS CORP.

Install the lower BPMV bracket insulator.
Use denatured alcohol on the BPMV bracket insulator as an installation aid, if necessary.
Install the 2 upper BPMV bracket insulators.
Use denatured alcohol on the BPMV bracket insulators as an installation aid, if necessary.
Install the BPMV bracket to the BPMV.

Fig 2: View Of BPMV Insulator Nuts & Washers

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the 2 BPMV washers and nuts.
Tighten: Tighten the nuts to 8 N.m (71 lb in).

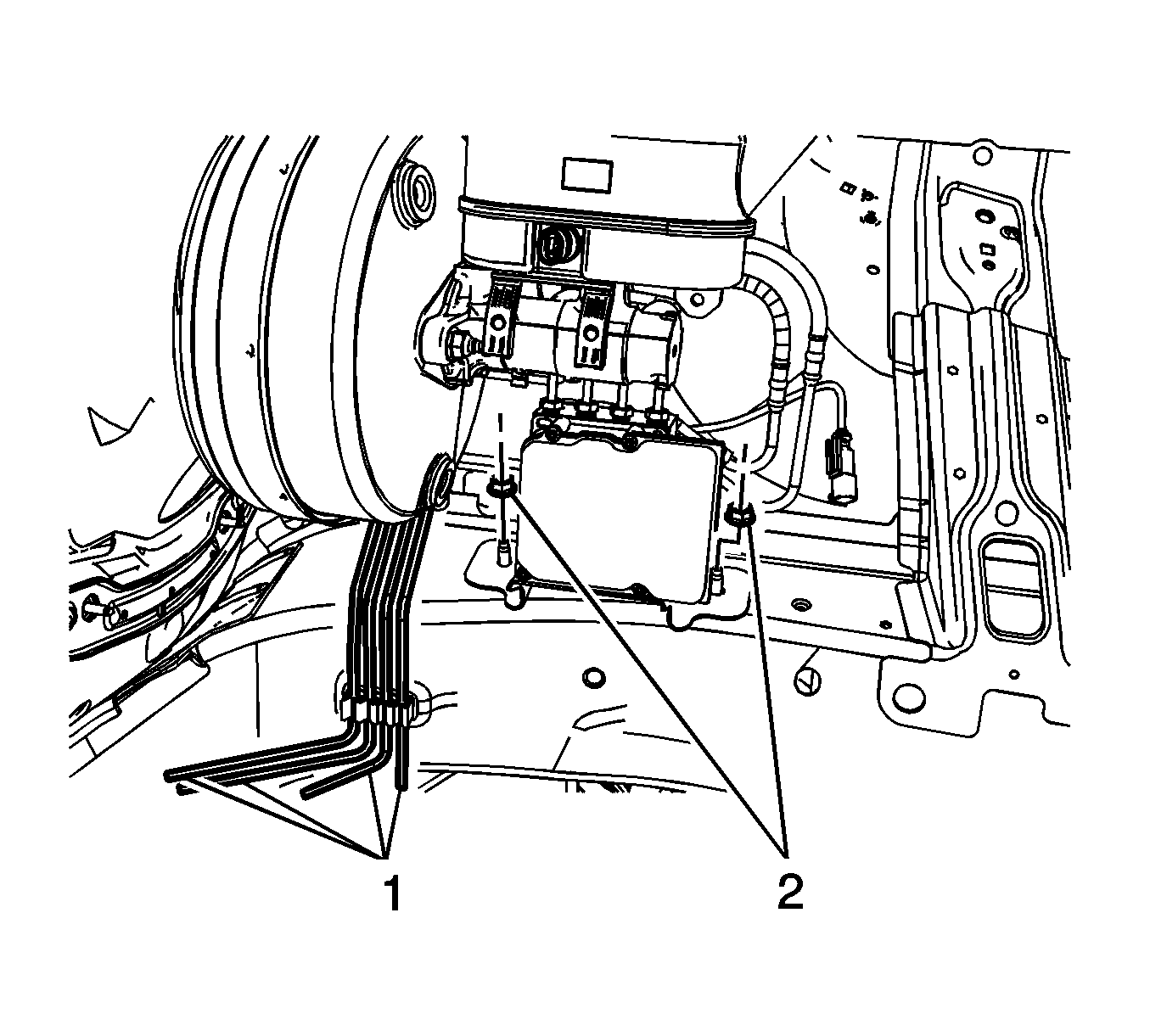

Fig 3: View Of Front & Rear Brake Pipes

Courtesy of GENERAL MOTORS CORP.

Install the 2 BPMV bracket nuts (2).
Tighten: Tighten the nuts to 20 N.m (15 lb ft).
Install the front and rear brake pipes (1) to the routing clip on the frame rail.
Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
