Installation Procedure

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

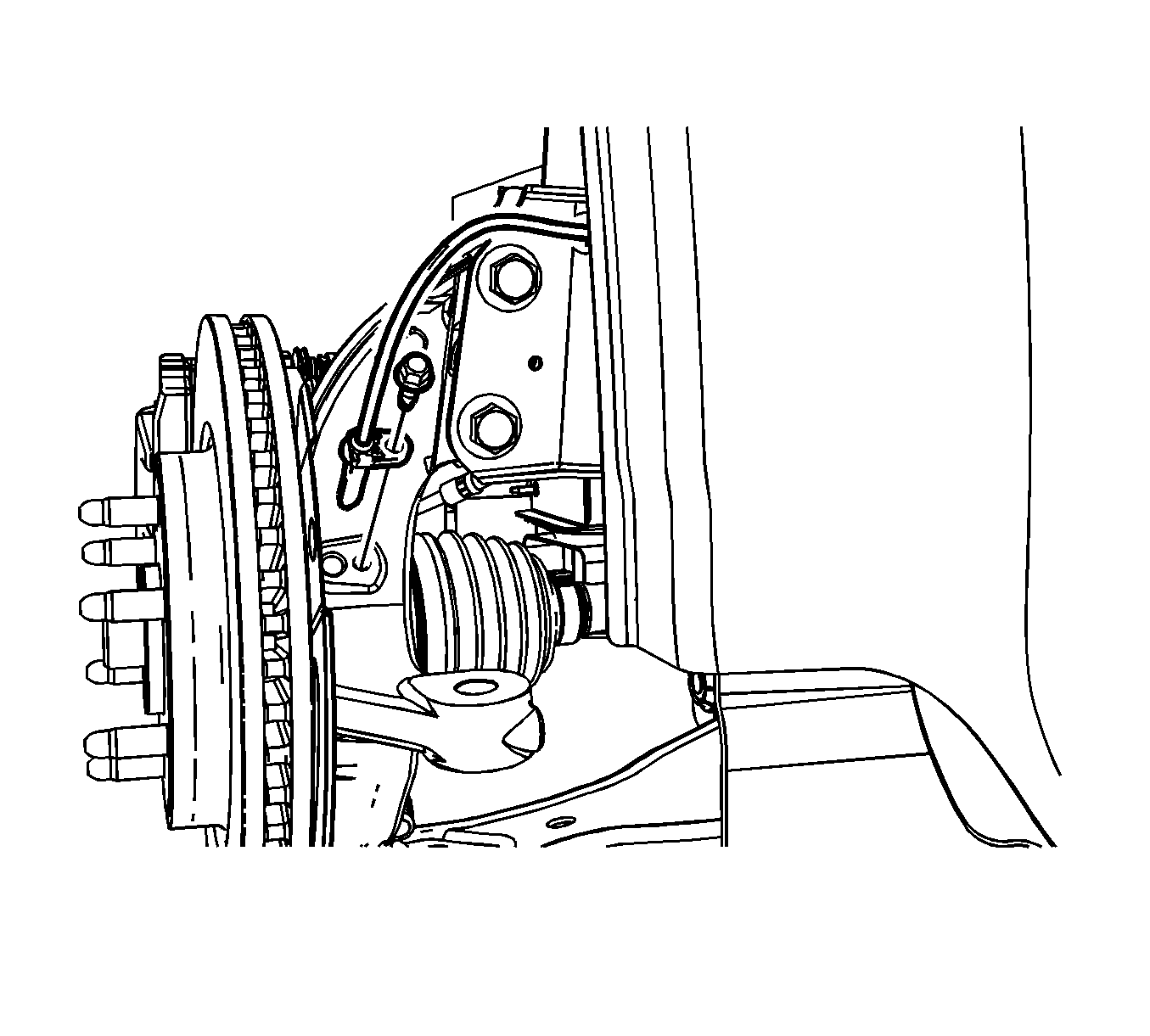

    Fig 1: Identifying Wheel Speed Sensor Bolt
    GM1861961Courtesy of GENERAL MOTORS CORP.
  1. Install the wheel speed sensor to the steering knuckle.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the wheel speed sensor bolt.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

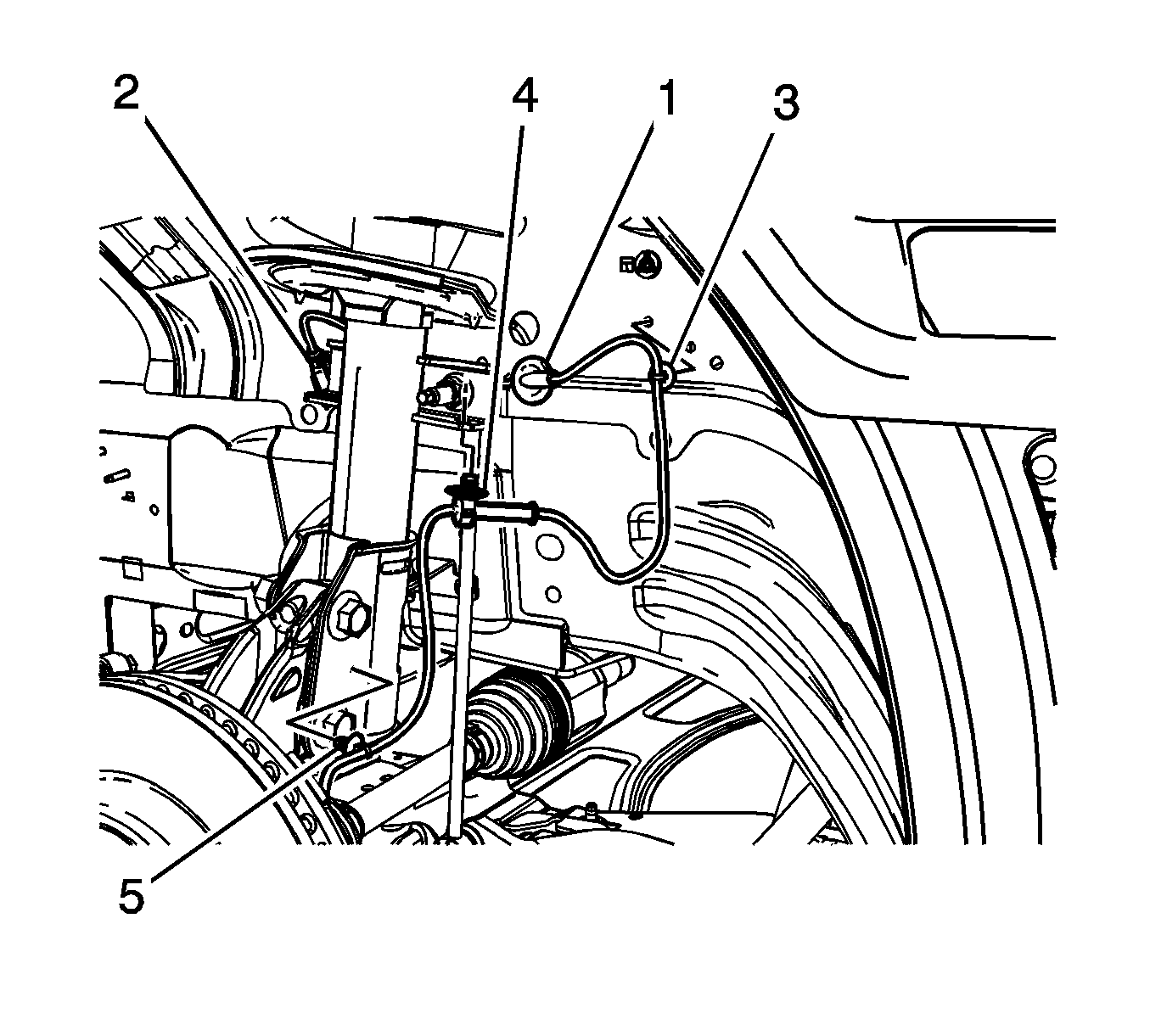

    3. Fig 2: View Of Wheel Speed Sensor Wire, Wire Grommet, Connector & Harness Routing Clips
    GM1861960Courtesy of GENERAL MOTORS CORP.
  3. Install the wheel speed sensor wire harness routing clips (4) and (5) to the suspension strut.
  4. Insert the wheel speed sensor wire electrical connector (2) through the wheel house hole.
  5. Seat the wheel speed sensor wire harness grommet (1) to the wheel house.

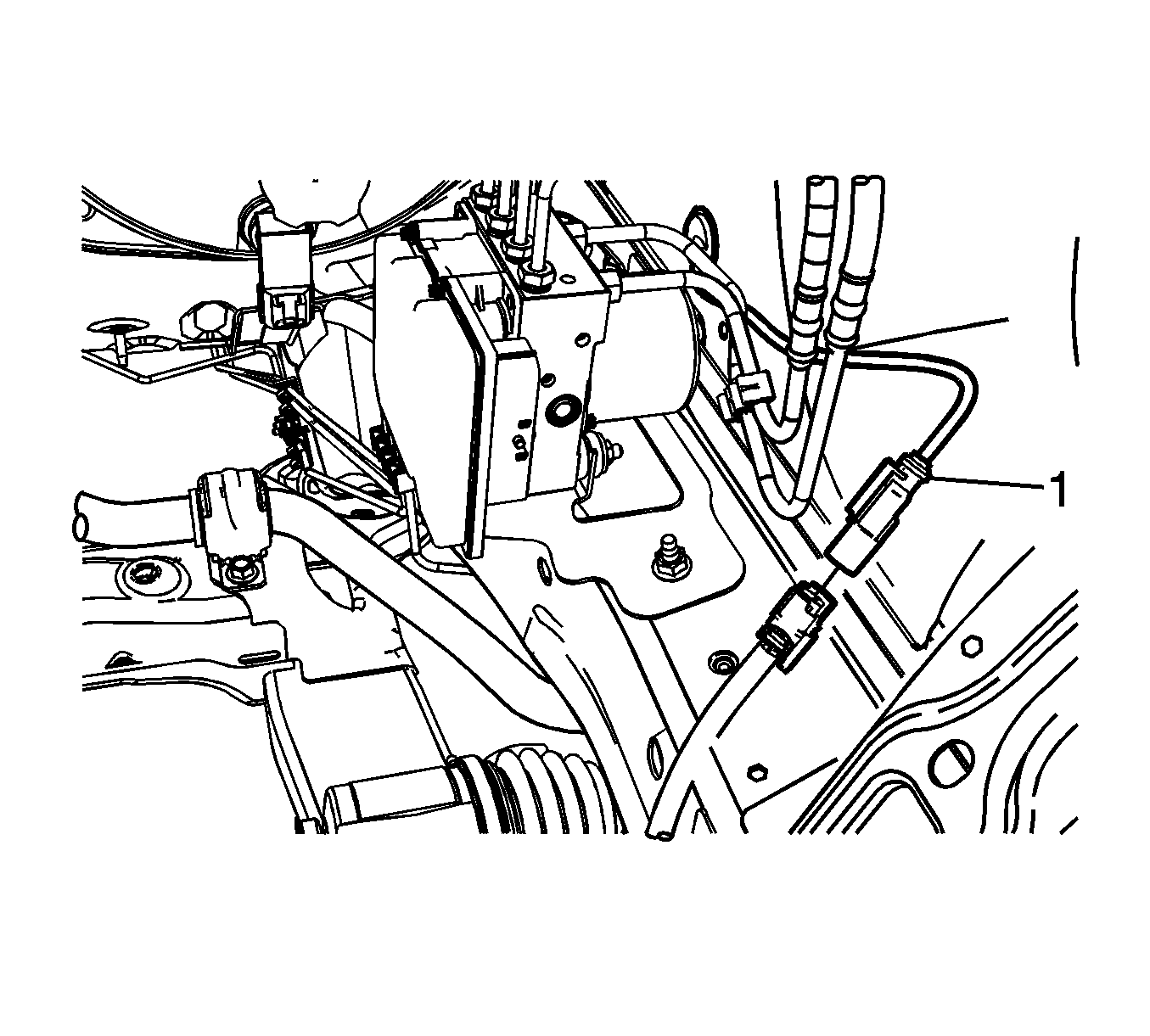

    6. Fig 3: Identifying Wheel Speed Sensor Electrical Connector
    GM1861959Courtesy of GENERAL MOTORS CORP.
  6. Connect the wheel speed sensor electrical connector (1).
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. If replacing the right front wheel speed sensor, connect the battery positive junction block cables. Refer to Battery Positive Junction Block Cable Replacement .
  9. If replacing the left front wheel speed sensor, install the air cleaner element. Refer to Air Cleaner Element Replacement .
  10. Perform the Diagnostic System Check - Vehicle .
