Antilock Brake System Schematics

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

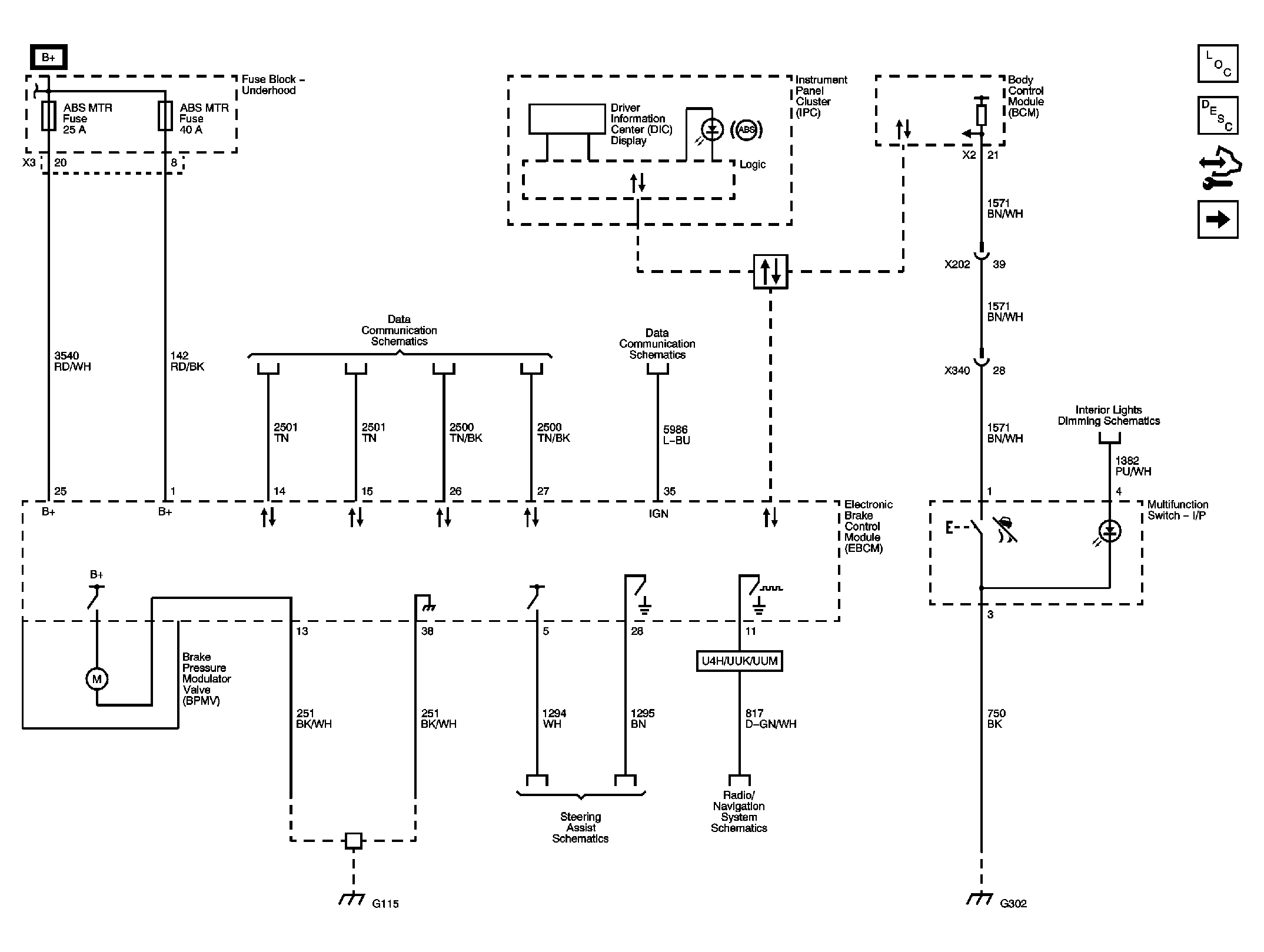

Fig 1: Module Power and Ground, Indicators, TCS Control & Subsystem References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

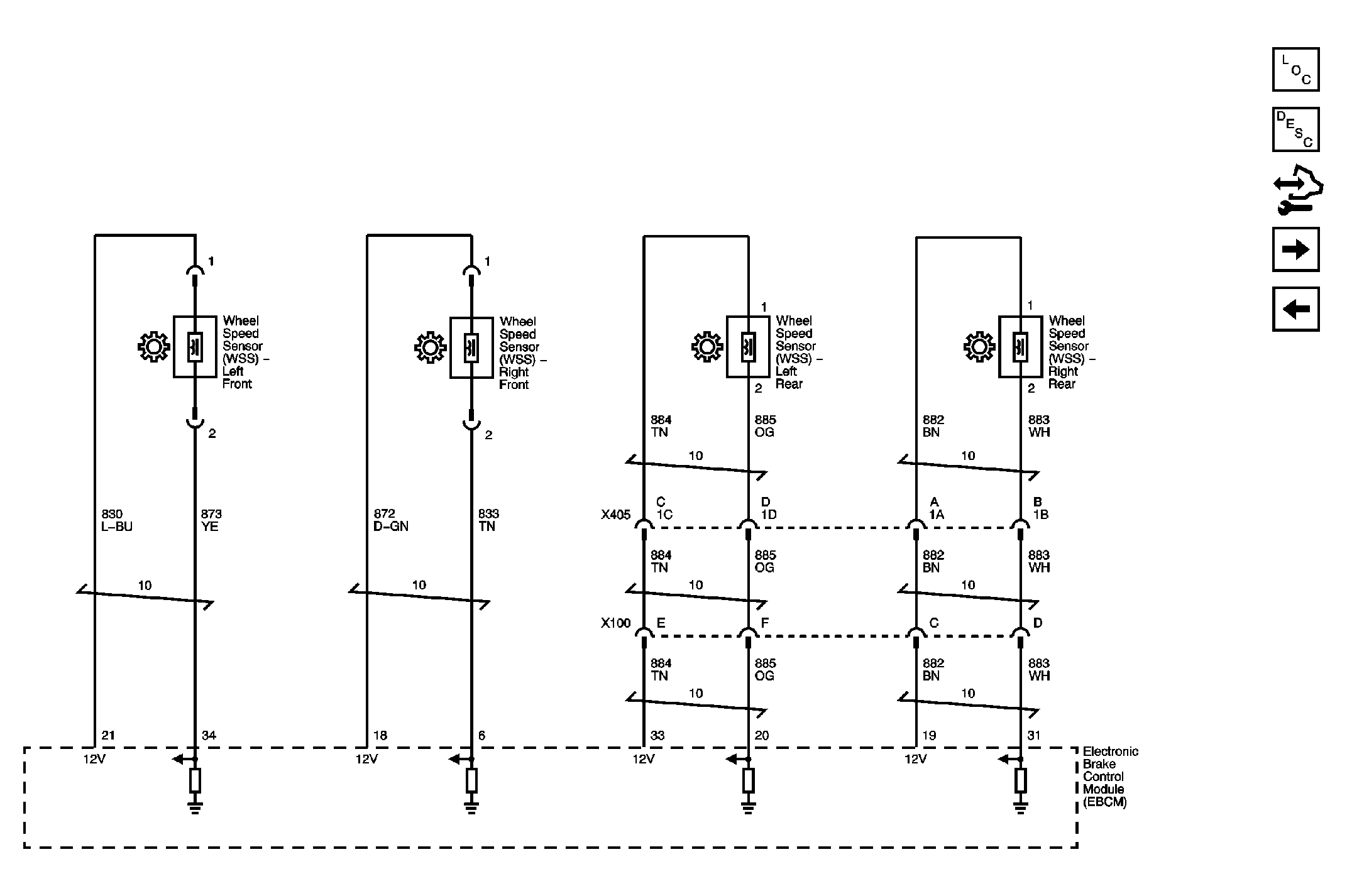

Fig 2: Wheel Speed Sensors Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

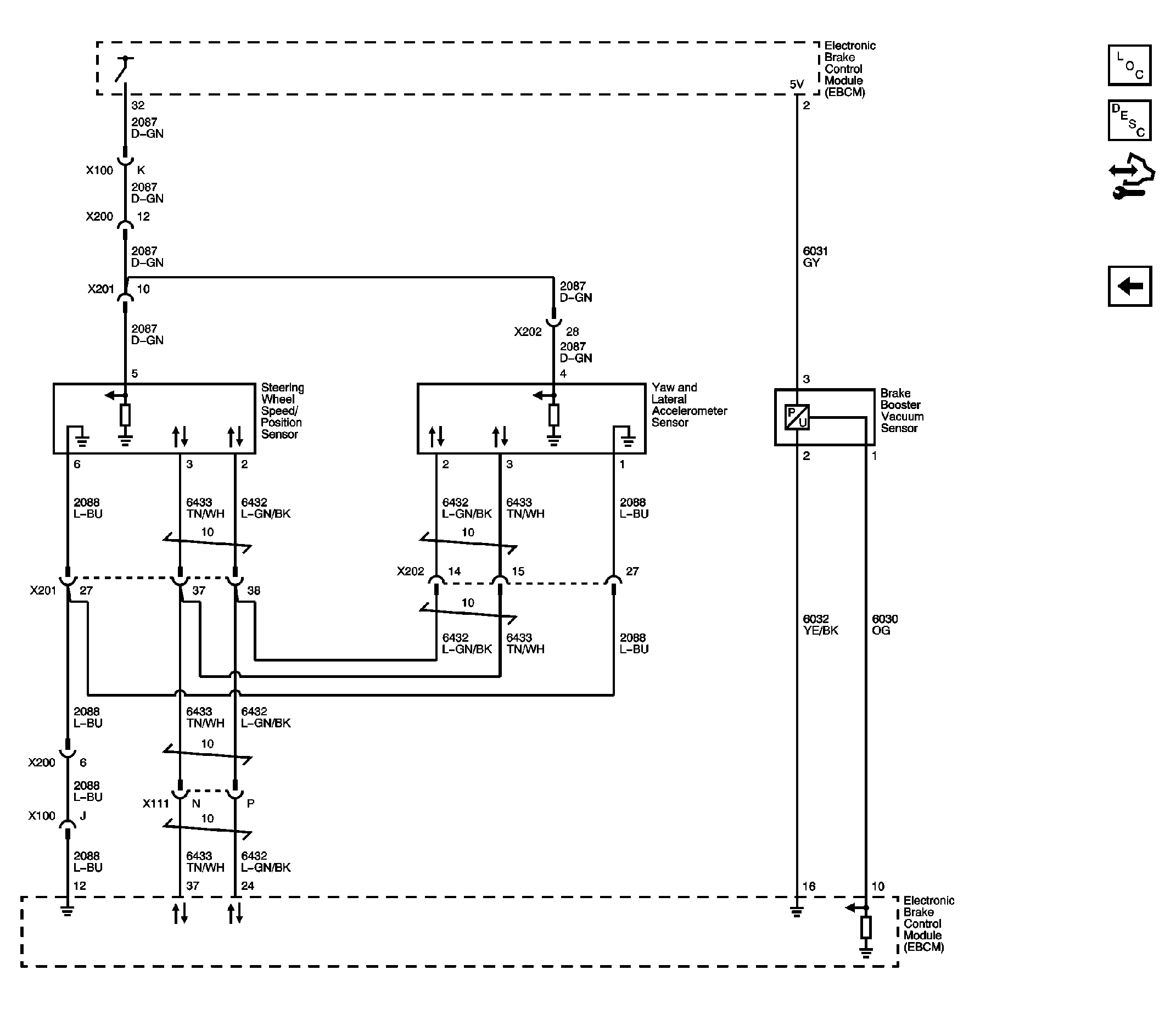

Fig 3: Stability Control Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
