Passenger Compartment/Roof Component Views
WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

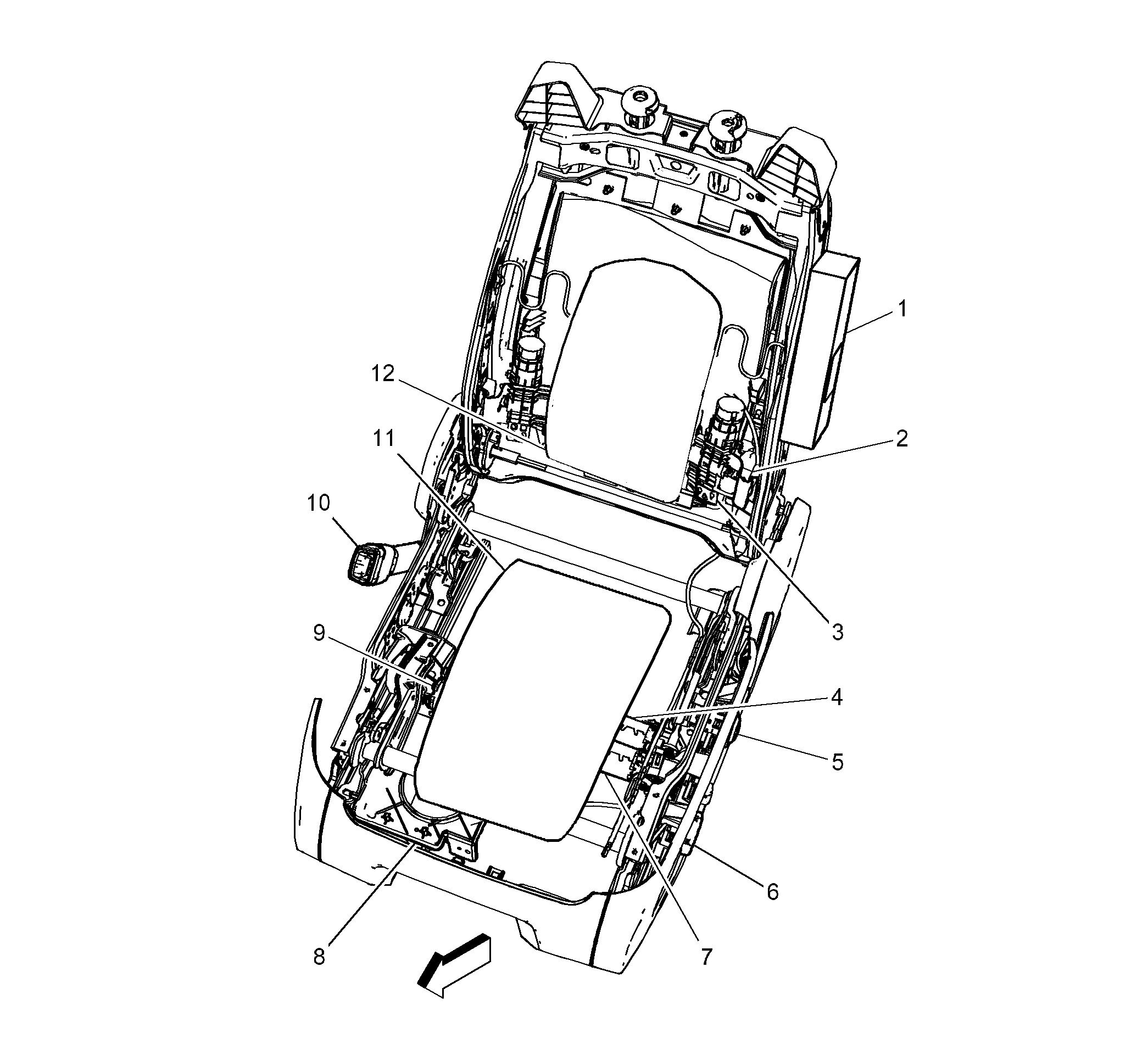

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Side Impact Module - Left |
| 2 | Seat Recline Motor - Driver (AH5) |
| 3 | Seat Lumbar Horizontal Motor - Driver (AH5) |
| 4 | Seat Horizontal Motor - Driver (AG1 or AH5) |
| 5 | Seat Lumbar Switch - Driver (AH5) |
| 6 | Seat Adjuster Switch - Driver (AG1 or AH5) |
| 7 | Seat Rear Vertical Motor - Driver (AG1 or AH5) |
| 8 | Heated Seat Control Module - Driver (KA1) |
| 9 | Seat Front Vertical Motor - Driver (AG1 or AH5) |
| 10 | Seat Belt Buckle - Driver |
| 11 | Heated Seat Element - Driver Cushion (KA1 or KB6) |
| 12 | Heated Seat Element - Driver Back (KA1 or KB6) |

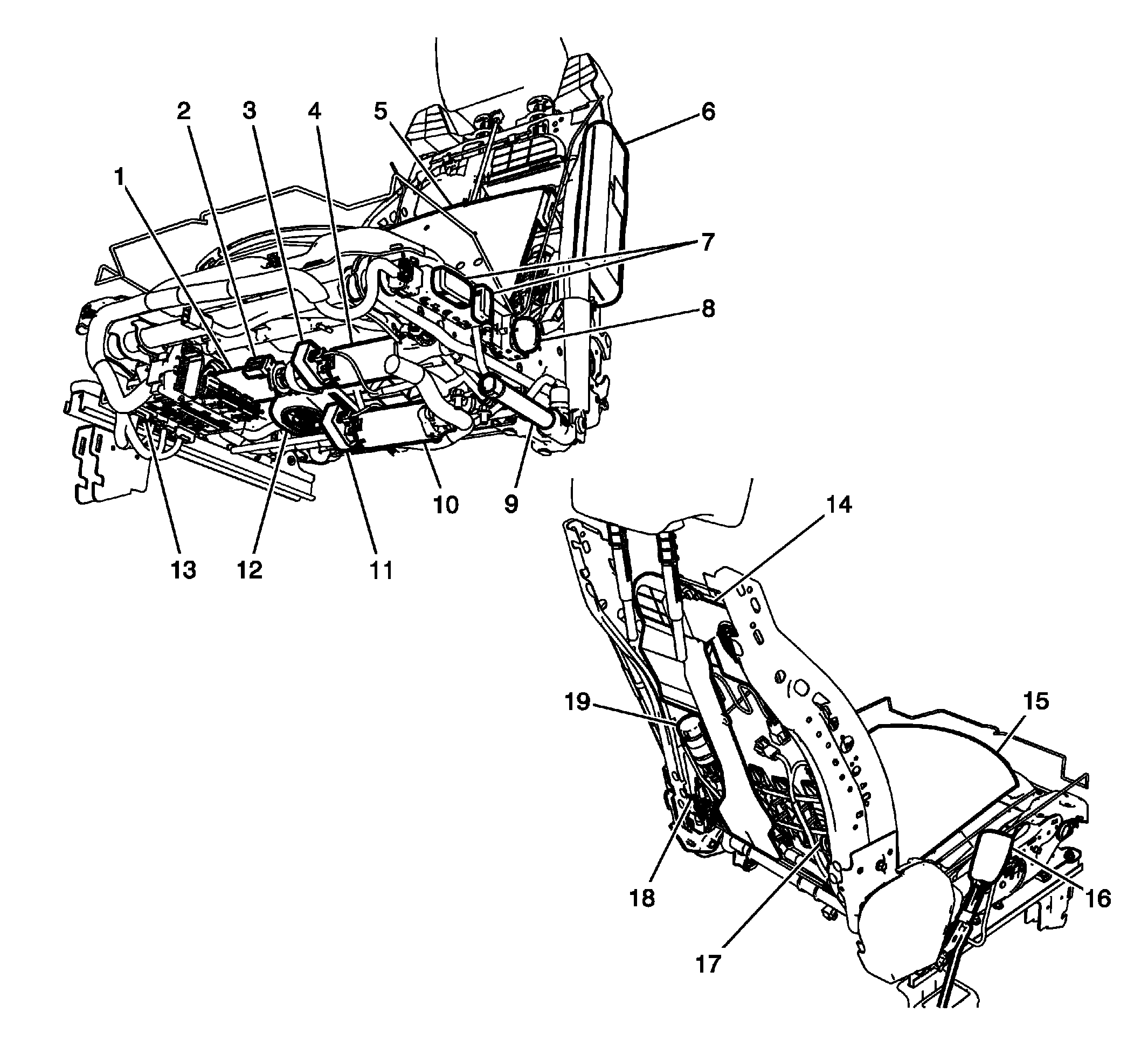

| Callout | Component Name |
|---|---|
| 1 | Seat Front Vertical Motor - Driver |
| 2 | Seat Front Vertical Motor Position Sensor |
| 3 | Seat Rear Vertical Motor Position Sensor - Driver |
| 4 | Seat Front Vertical Motor - Driver |
| 5 | Heated Seat Element - Driver Back |
| 6 | Inflatable Restraint Side Impact Module - Left |
| 7 | Seat Adjuster Switch - Driver |
| 8 | Seat Lumbar Switch - Driver |
| 9 | Seat Belt Pretensioner - Driver |
| 10 | Seat Horizontal Motor - Driver |
| 11 | Seat Horizontal Motor Position Sensor - Driver |
| 12 | Seat Cushion Ventilation Heating and Cooling Module - Driver (KB6) |
| 13 | Memory Seat Module (MSM) |
| 14 | Seat Back Ventilation Heating and Cooling Module - Driver (KB6) |
| 15 | Heated Seat Element - Driver Cushion |
| 16 | Seat Belt Buckle - Driver |
| 17 | Seat Recline Position Sensor - Driver |
| 18 | Seat Recline Motor - Driver |
| 19 | Seat Lumbar Horizontal Motor - Driver (Early Production) |

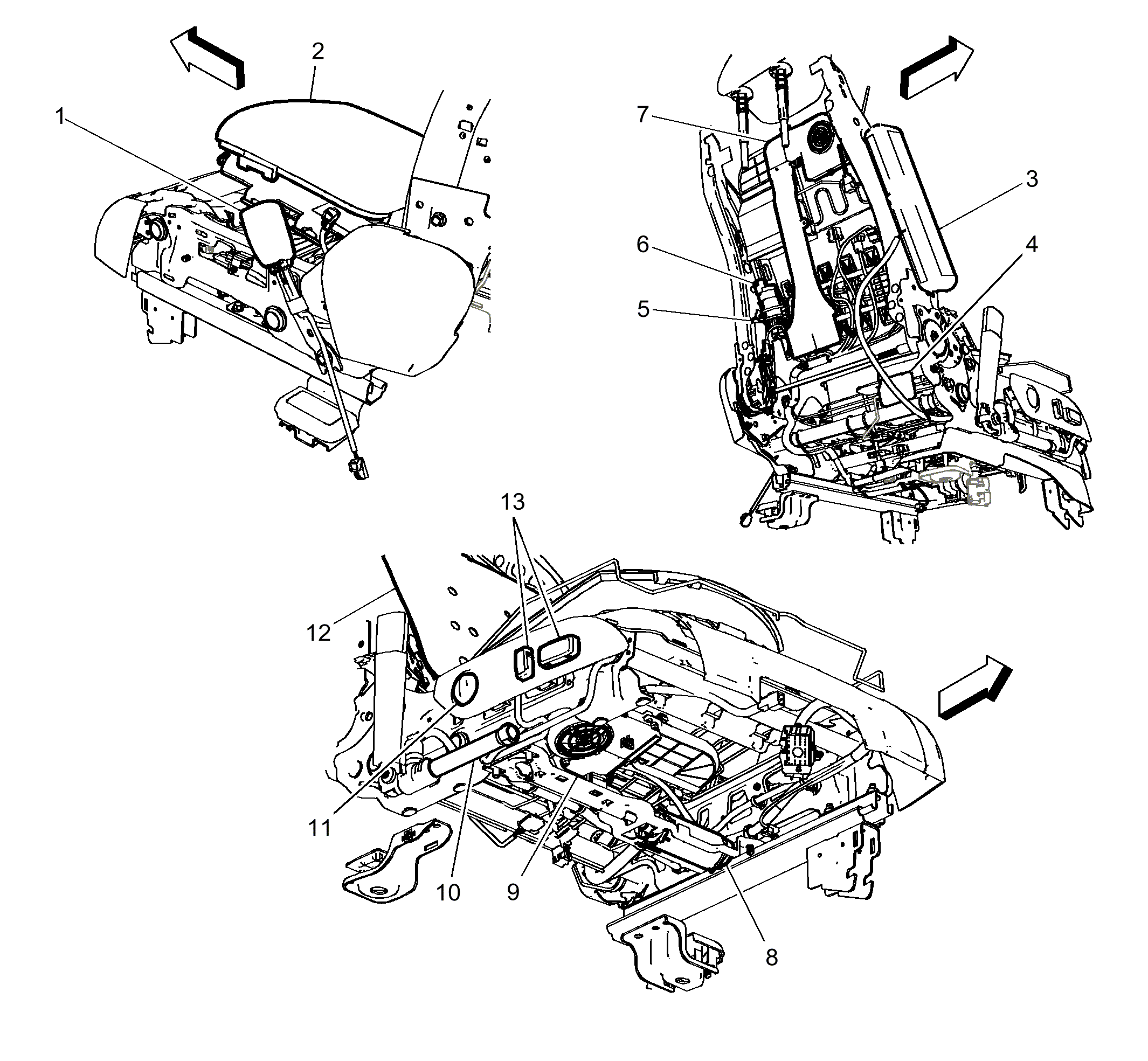

| Callout | Component Name |
|---|---|
| 1 | Seat Belt Switch - Passenger, part of Seat Belt Buckle - Passenger |
| 2 | Heated Seat Element - Passenger Cushion (KA1 or KB6) |
| 3 | Inflatable Restraint Side Impact Module - Right |
| 4 | Inflatable Restraint Front Passenger Presence System (PPS) Module (with Sensor) |
| 5 | Seat Recline Motor - Passenger (AAQ) |
| 6 | Seat Lumbar Horizontal Motor - Passenger (AAQ) |
| 7 | Seat Back Ventilation Heating and Cooling Module - Passenger (KB6) |
| 8 | Seat Horizontal Motor - Passenger (AAQ or AG2) |
| 9 | Seat Cushion Ventilation Heating and Cooling Module - Passenger (KB6) |
| 10 | Seat Belt Pretensioner - Passenger |
| 11 | Seat Lumbar Switch - Passenger (AAQ) |
| 12 | Heated Seat Element - Passenger Back (KA1 or KB6) |
| 13 | Seat Adjuster Switch - Passenger (AAQ or AG2) |

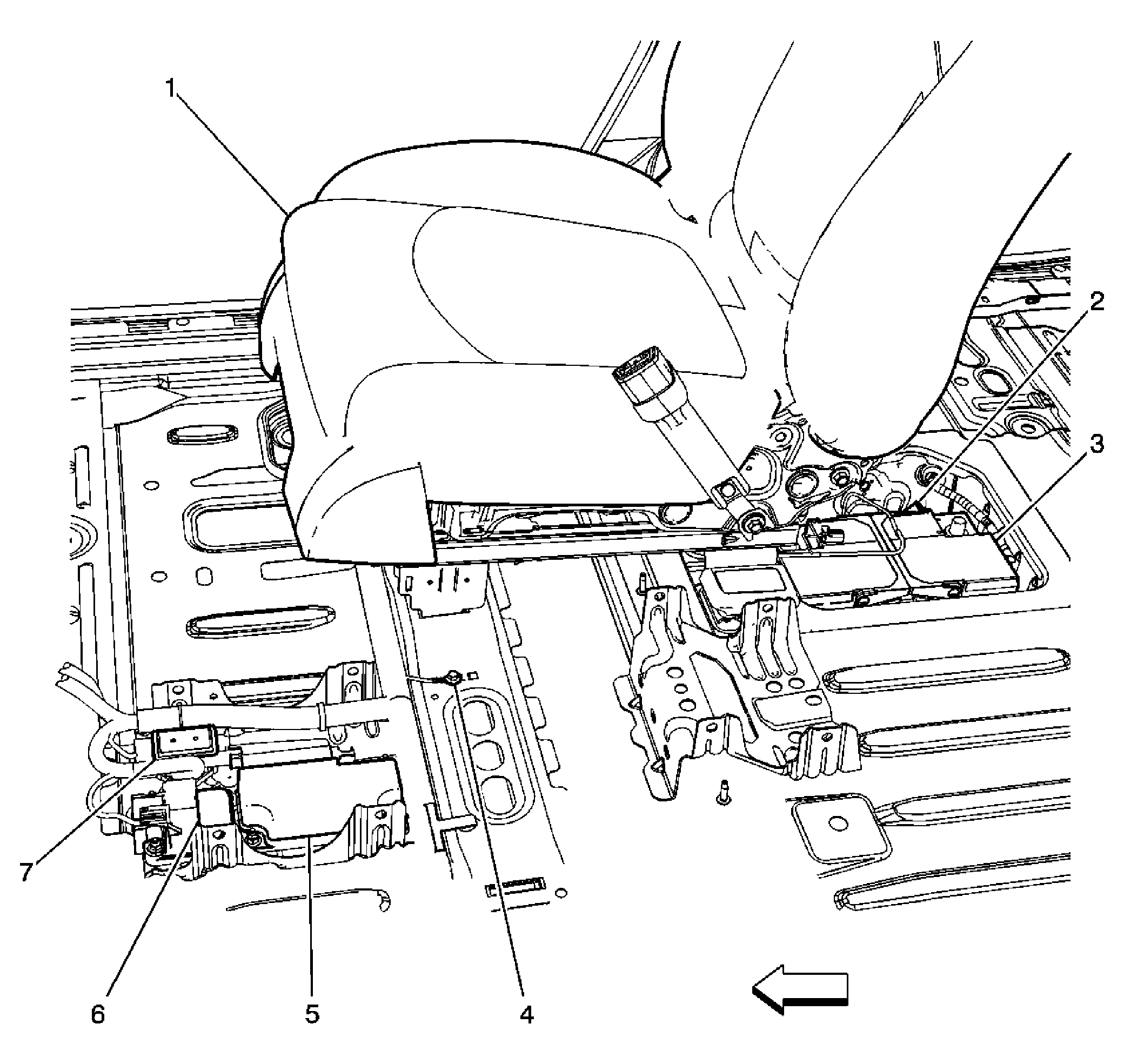

| Callout | Component Name |
|---|---|
| 1 | Passenger Seat |
| 2 | Battery Current Sensor |
| 3 | Battery |
| 4 | G304 |
| 5 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 6 | Inflatable Restraint Vehicle Rollover Sensor |
| 7 | Yaw and Lateral Accelerometer Sensor |

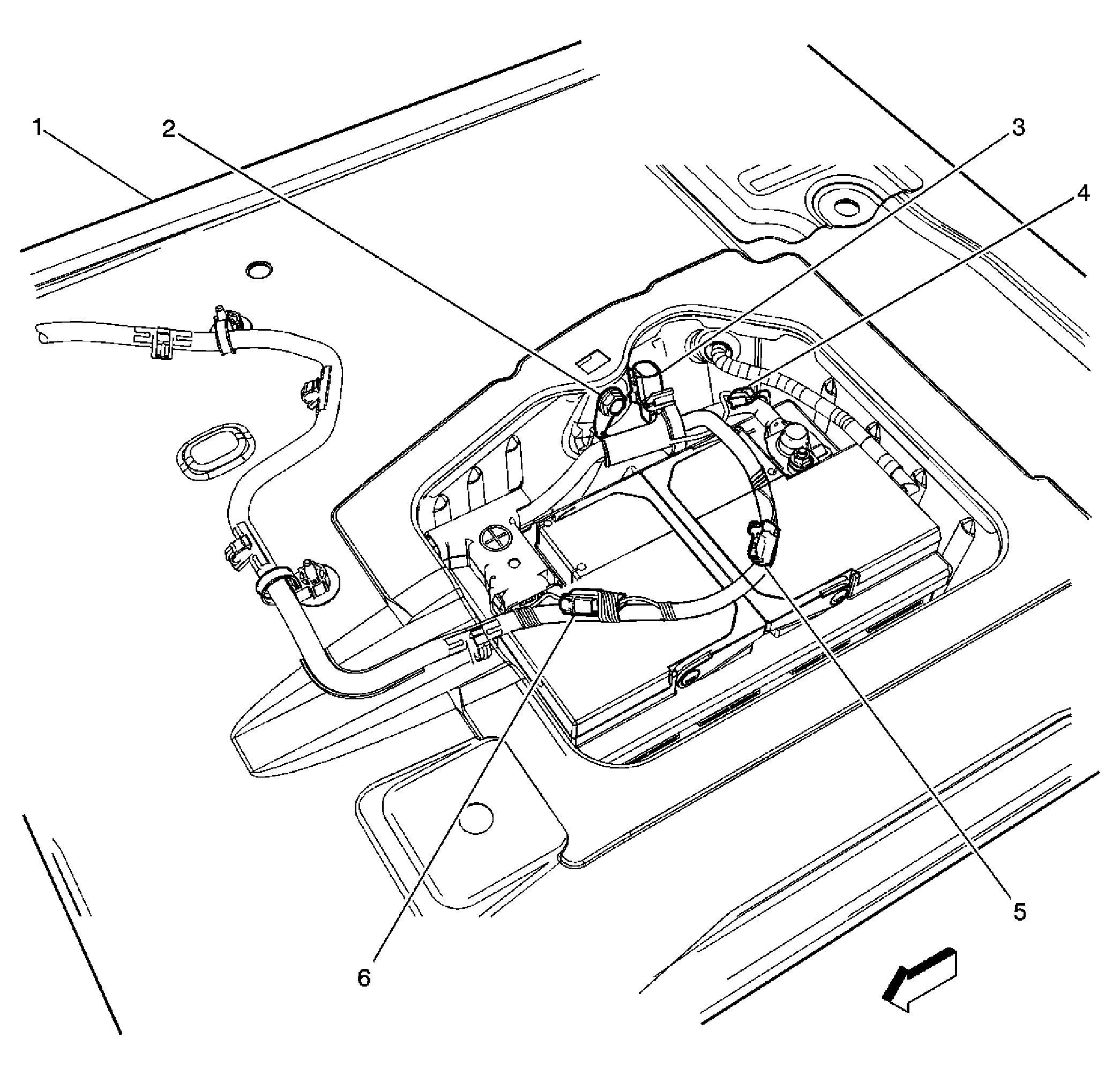

| Callout | Component Name |
|---|---|
| 1 | Floor Panel |
| 2 | G305 |
| 3 | Battery Current Sensor |
| 4 | X324 |
| 5 | Inline Fuse OnStar (UE1) |
| 6 | X325 (UE1) |

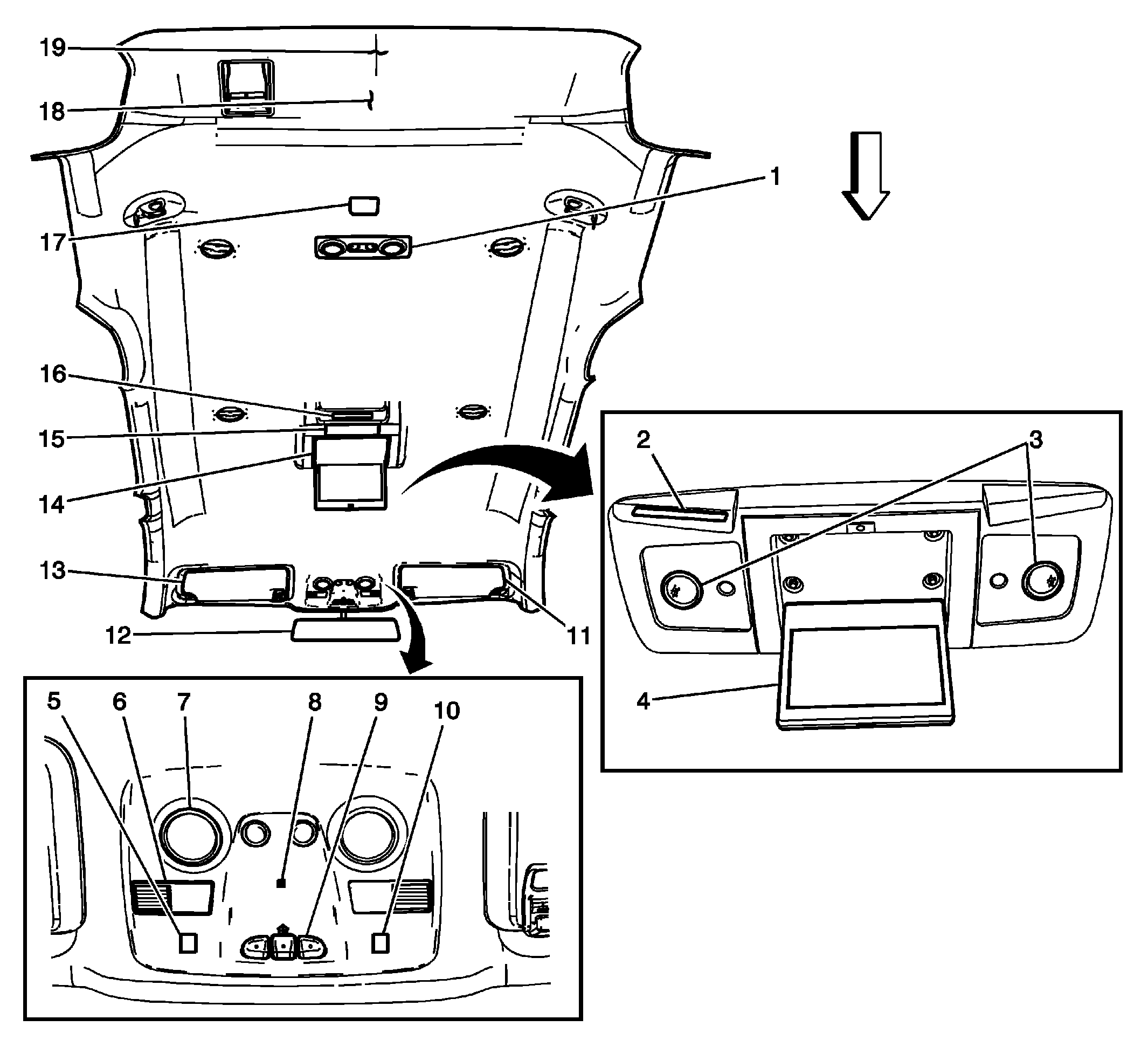

| Callout | Component Name |
|---|---|
| 1 | Overhead Console Courtesy/Reading Lamps - Rear |
| 2 | Infrared Transmitter (U42 with C3U) |
| 3 | Courtesy/Reading Lamps - 2nd Row (U42 with C3U) |
| 4 | Digital Video Disc (DVD) Display (U42 with C3U) |
| 5 | Sunroof Switch (C3U) |
| 6 | Cellular Telephone Microphone (UE1) |
| 7 | Overhead Console Courtesy/Reading Lamps - Front |
| 8 | Console Flood Lamp |
| 9 | Garage Door Opener (UG1) |
| 10 | Sunroof Shade Switch (C3U) |
| 11 | Sunshade - Right |
| 12 | Inside Rearview Mirror (ISRVM) |
| 13 | Sunshade - Left |
| 14 | Digital Video Disc (DVD) Display (U42 without C3U) |
| 15 | Courtesy/Reading Lamps - 2nd Row (without C3U) |
| 16 | Infrared Transmitter (U42 without C3U) |
| 17 | Rear Parking Assist (RPA) Display (UD7) |
| 18 | Electronic Compass Module (U80) |
| 19 | Remote Control Door Lock Receiver (RCDLR) |

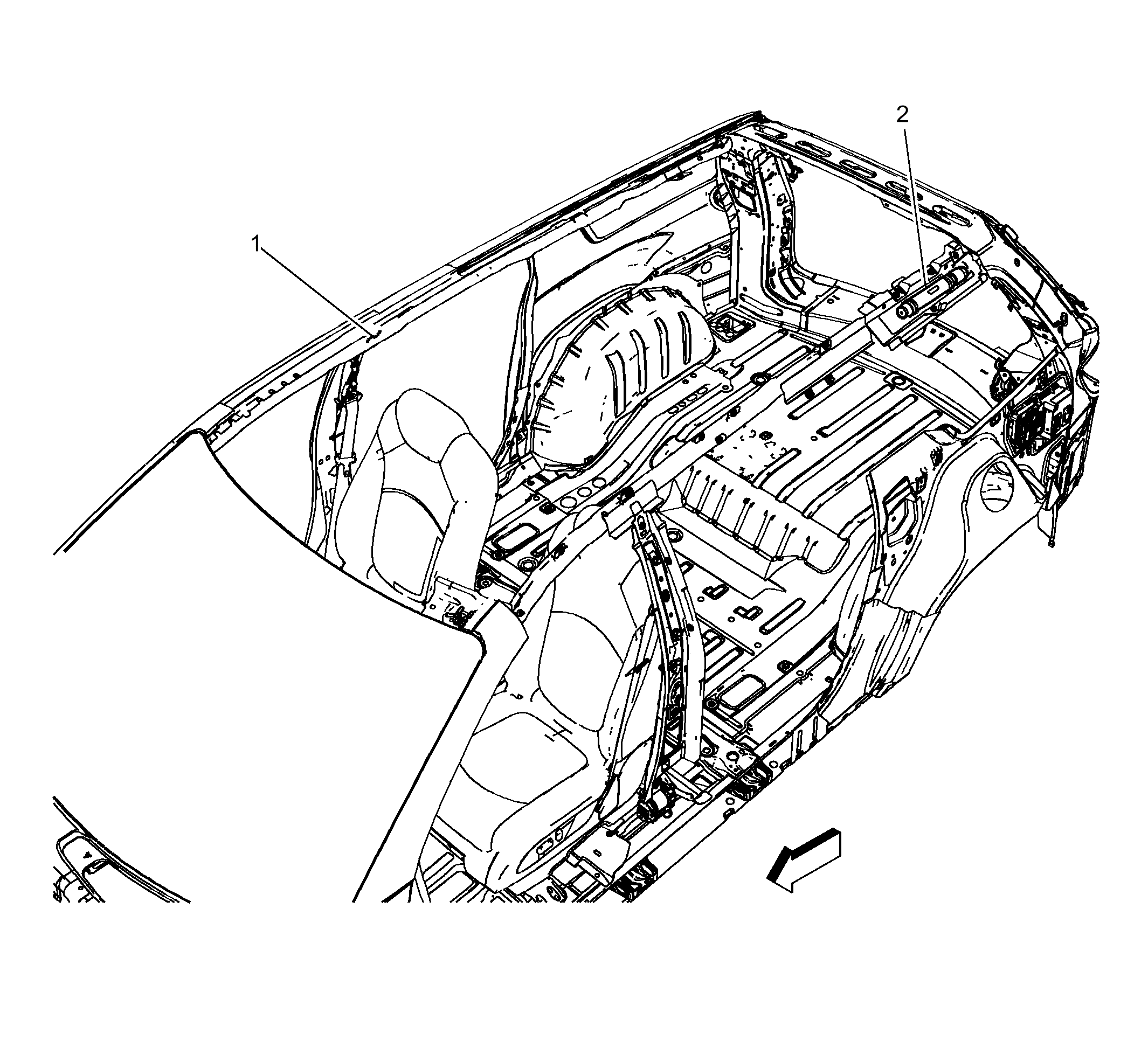

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Roof Rail Module - Passenger |
| 2 | Inflatable Restraint Roof Rail Module - Driver |
| 3 | Floor Panel |
| 4 | Windshield |

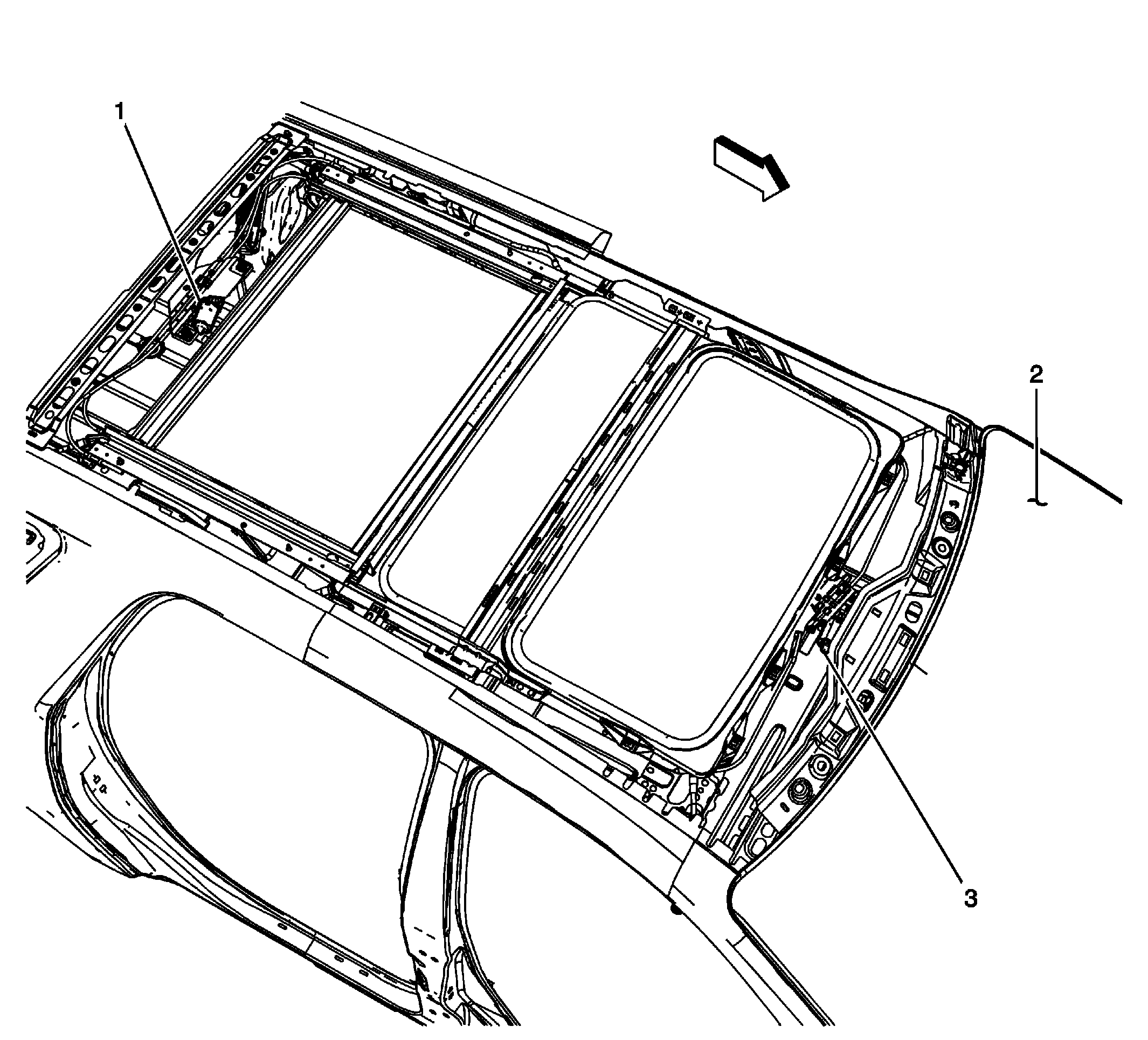

| Callout | Component Name |
|---|---|
| 1 | Sunroof Shade Module (C3U) |
| 2 | Windshield |
| 3 | Sunroof Control Module (C3U) |
