USB Receptacle Replacement (Traverse)
WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

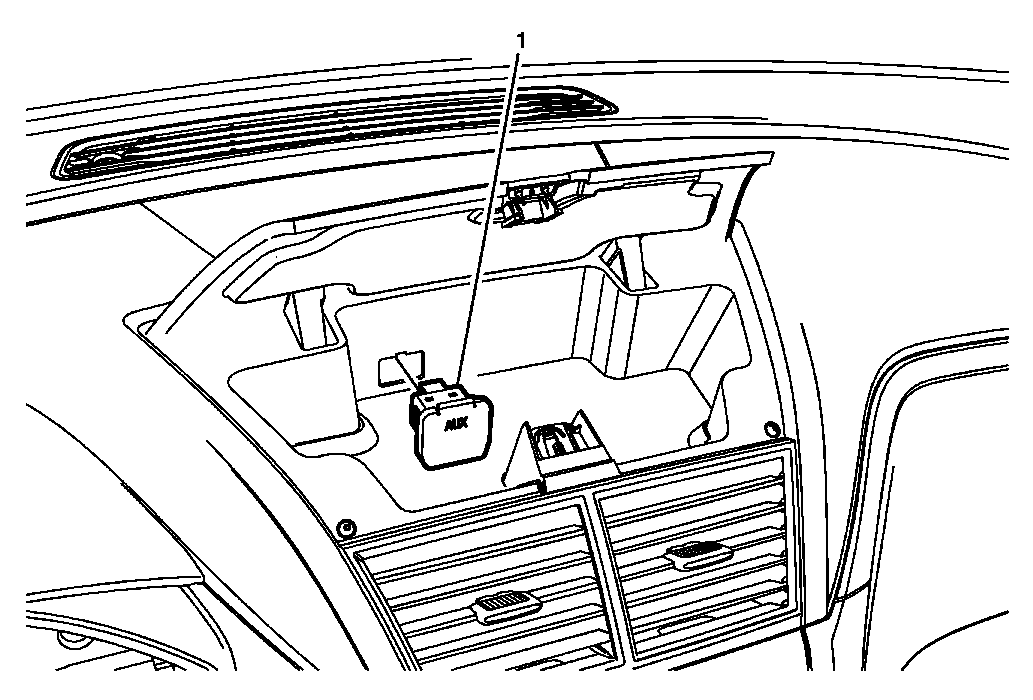

Courtesy of GENERAL MOTORS CORP. USB Receptacle Replacement (Traverse)
| Callout |
Component Name |
| 1 |
USB Receptacle Procedure
- Open the instrument panel center compartment and using a small flat bladed tool, release the receptacle.
- Disconnect electrical connector.
|
