Radio X2
WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

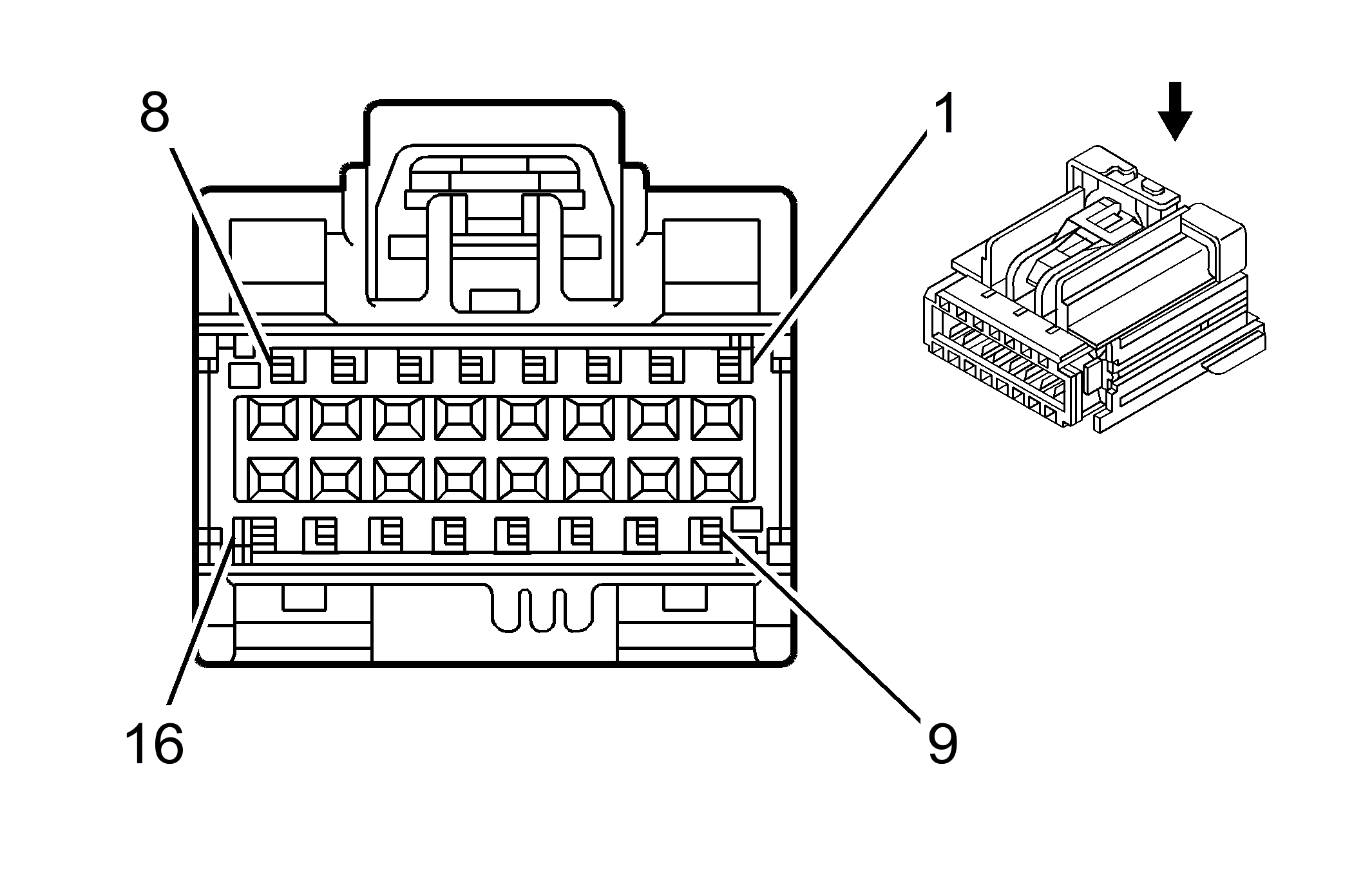

Radio X2
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.35 BN/WH | 367 | Left Audio Signal (+) (U2K or UBS) |
| 2 | 0.35 D-GN/WH | 368 | Right Audio Signal (+) (U2K or UBS) |
| 3 | 0.35 BARE | 1574 | Drain Wire (UQA or UQS) |
| 4 | - | - | Not Used |
| 5 | 0.35 BN/WH | 599 | Left Rear Low Level Audio Signal (+) (without UQF) |
| 0.35 BN | 199 | Left Rear Speaker Output (+) (UQF without ULD) | |
| 6 | 0.35 D-BU | 46 | Right Rear Speaker Output (+) (UQF without ULD) |
| 0.35 D-BU | 546 | Right Rear Low Level Audio Signal (+) (without UQF) | |
| 7 | 0.35 OG/BK | 1406 | Remote Playback Device Left Audio Signal (UE1) |
| 8 | 0.35 OG | 5748 | Radio Audio Mute Signal (without UQF) |
| 9 | 0.35 TN/WH | 372 | Left Audio Signal (-) (U2K or UBS) |
| 10 | 0.35 GY | 388 | Right Audio Signal (-) (U2K or UBS) |
| 11 | 0.35 BARE | 6131 | Drain Wire (U2K or UBS) |
| 12 | - | - | Not Used |
| 13 | 0.35 BN | 1999 | Left Rear Low Level Audio Signal (-) (ULD without UQF) |
| 0.35 YE | 116 | Left Rear Speaker Output (-) (UQF without ULD) | |
| 14 | 0.35 TN | 1946 | Right Rear Low Level Audio Signal (-) (ULD without UQF) |
| 0.35 L-BU | 115 | Right Rear Speaker Output (-) (UQF without ULD) | |
| 15 | 0.35 L-BU | 1405 | Remote Playback Device Audio Common Signal (UE1) |
| 16 | - | - | Not Used |
Connector Part Information
|
Terminal Part Information
|
