Speaker - Right Front (UQF)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

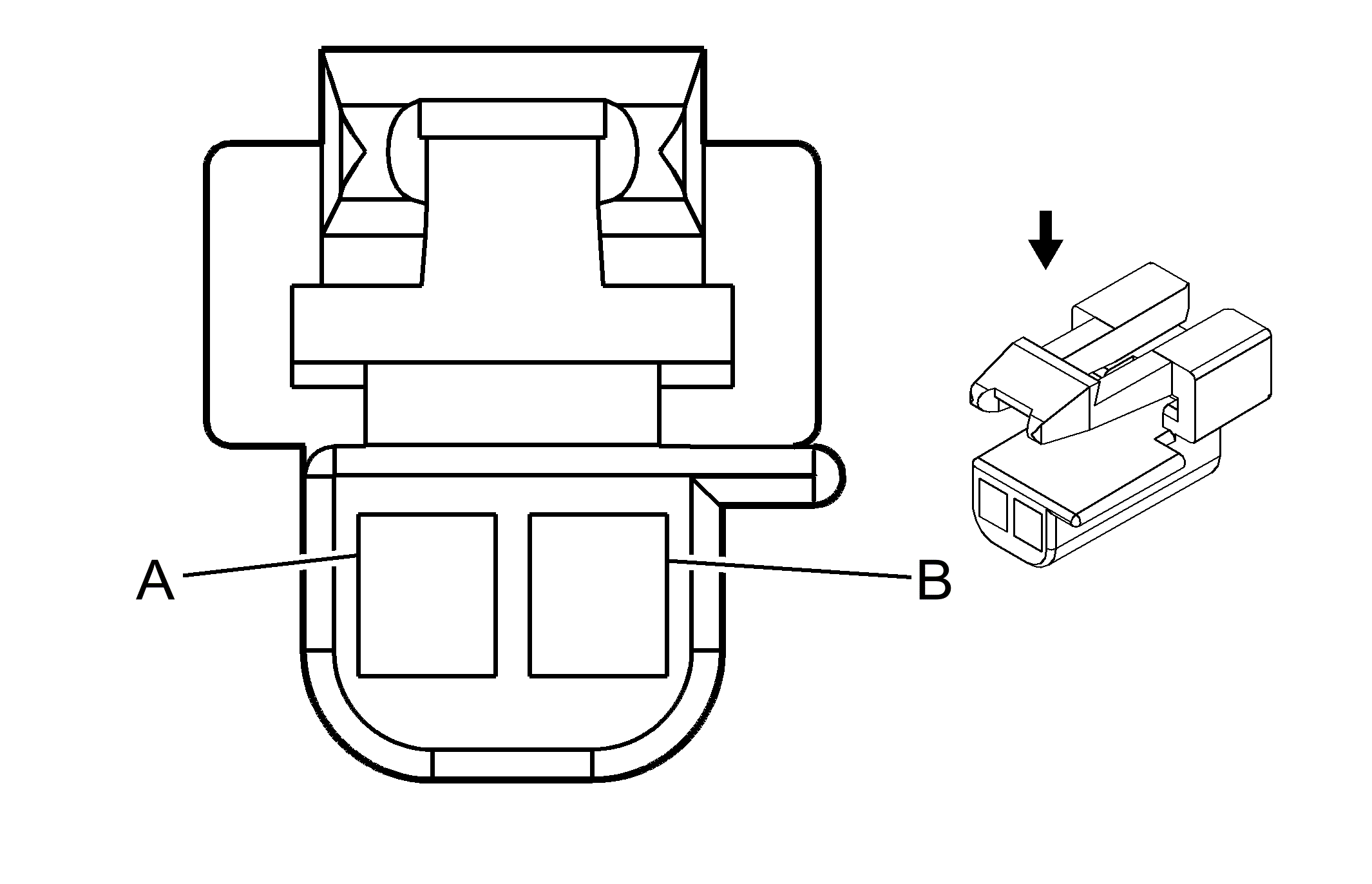

Fig 1: Speaker - Right Front (UQF) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	0.8 D-GN	117	Right Front Speaker Output (-)
B	0.8 L-GN	200	Right Front Speaker Output (+)

Connector Part Information

Harness Type: Passenger Door
OEM Connector: 12064867
Service Connector: 88987981
Description: 2-Way F Metri-Pack 150 Series (NA)

Terminal Part Information

Terminated Lead: Pending
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-14 (GN)
Terminal/Tray: 15326030/2
Core/Insulation Crimp: E/A
