Tail Lamp Assembly - Left (Z88)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

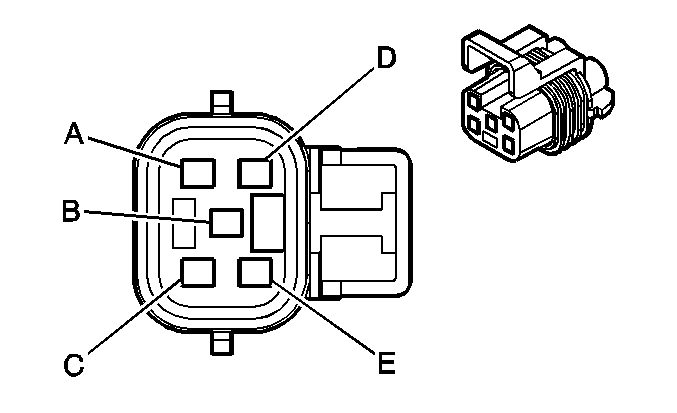

Fig 1: Tail Lamp Assembly - Left (Z88) Connector End View
GM779050Courtesy of GENERAL MOTORS CORP.
Tail Lamp Assembly - Left (Z88)

Pin Wire Circuit Function
A 0.5 PU 709 Left Park Lamp Voltage
B - - Not Available
C 0.5 YE/BK 5356 Left Tail Lamp Outage Detection Signal
D 0.8 BK 650 Ground
E 0.8 YE 18 Left Rear Stop/Turn Lamp Voltage
Connector Part Information
  • Harness Type: Left Tail Lamp
  • OEM Connector: 12124662
  • Service Connector: 12124662
  • Description: 5-Way F Metri-Pack 150 Series, Sealed (BN)
Terminal Part Information
  • Terminated Lead: 13575427
  • Release Tool: J-38125-12A
  • Diagnostic Test Probe: J-35616-14 (GN)
  • Terminal/Tray: 12048074/2
  • Core/Insulation Crimp: E/1
