Headlamp Control Module (TSH or T26)
WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

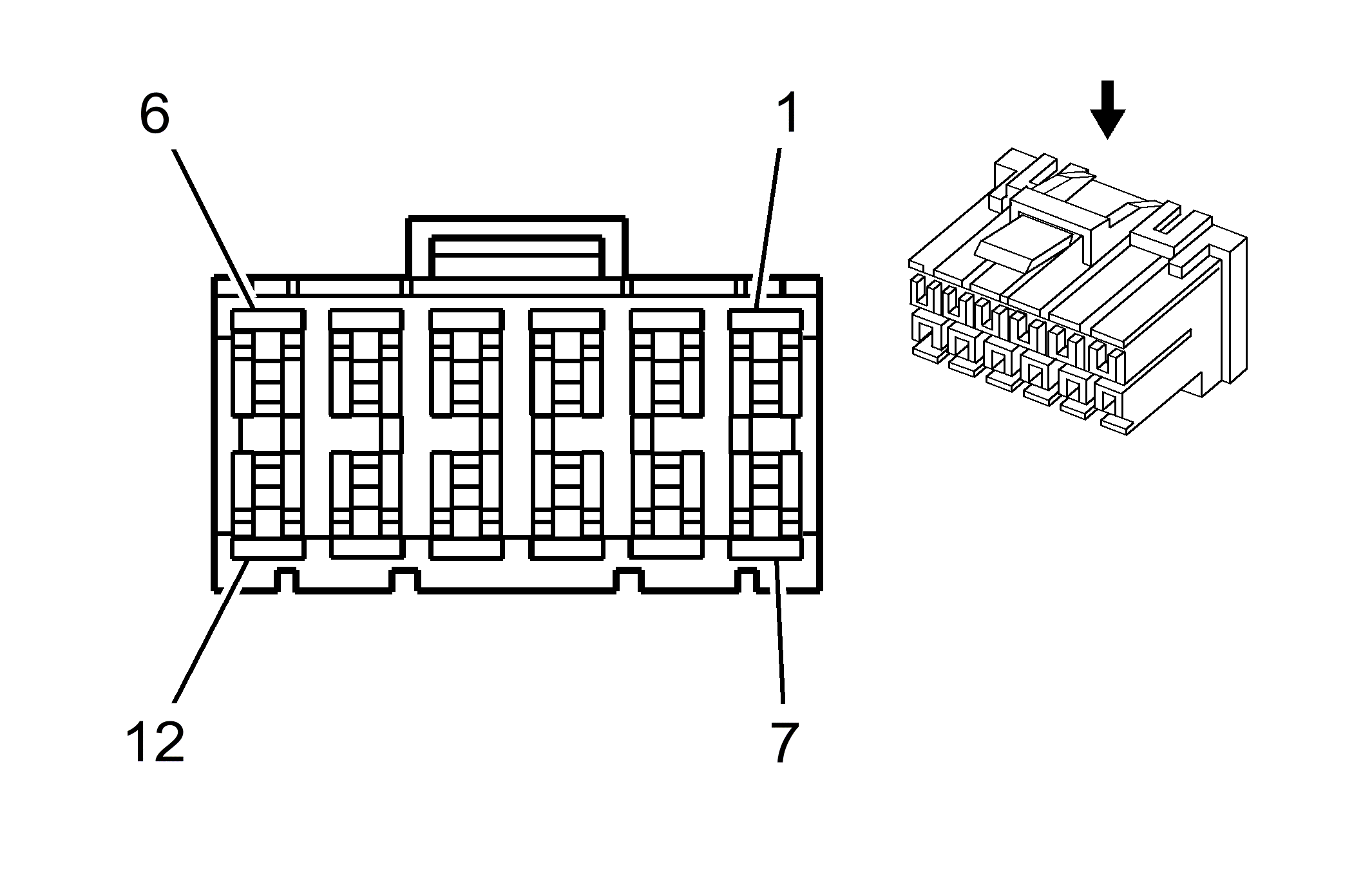

Headlamp Control Module (TSH or T26)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.35 RD | - | Communication Enable |
| 2 | 0.35 WH | - | High Speed GMLAN Serial Data Bus- |
| 3 | 0.35 YE | - | High Speed GMLAN Serial Data Bus+ |
| 4 | 0.35 BK | - | Ground |
| 5 | 0.35 OG | - | Linear Interconnect Network (LIN) |
| 6 | 0.35 RD | - | Battery Positive Voltage |
| 7 | 0.5 RD | - | Battery Positive Voltage |
| 8-9 | - | - | Not Used |
| 10 | 0.35 BK | - | Ground |
| 11 | 0.35 OG | - | Linear Interconnect Network (LIN) |
| 12 | 0.35 RD | - | Battery Positive Voltage |
Connector Part Information
|
Terminal Part Information
|
