Headlamp Control Module - Right High Beam (W49)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

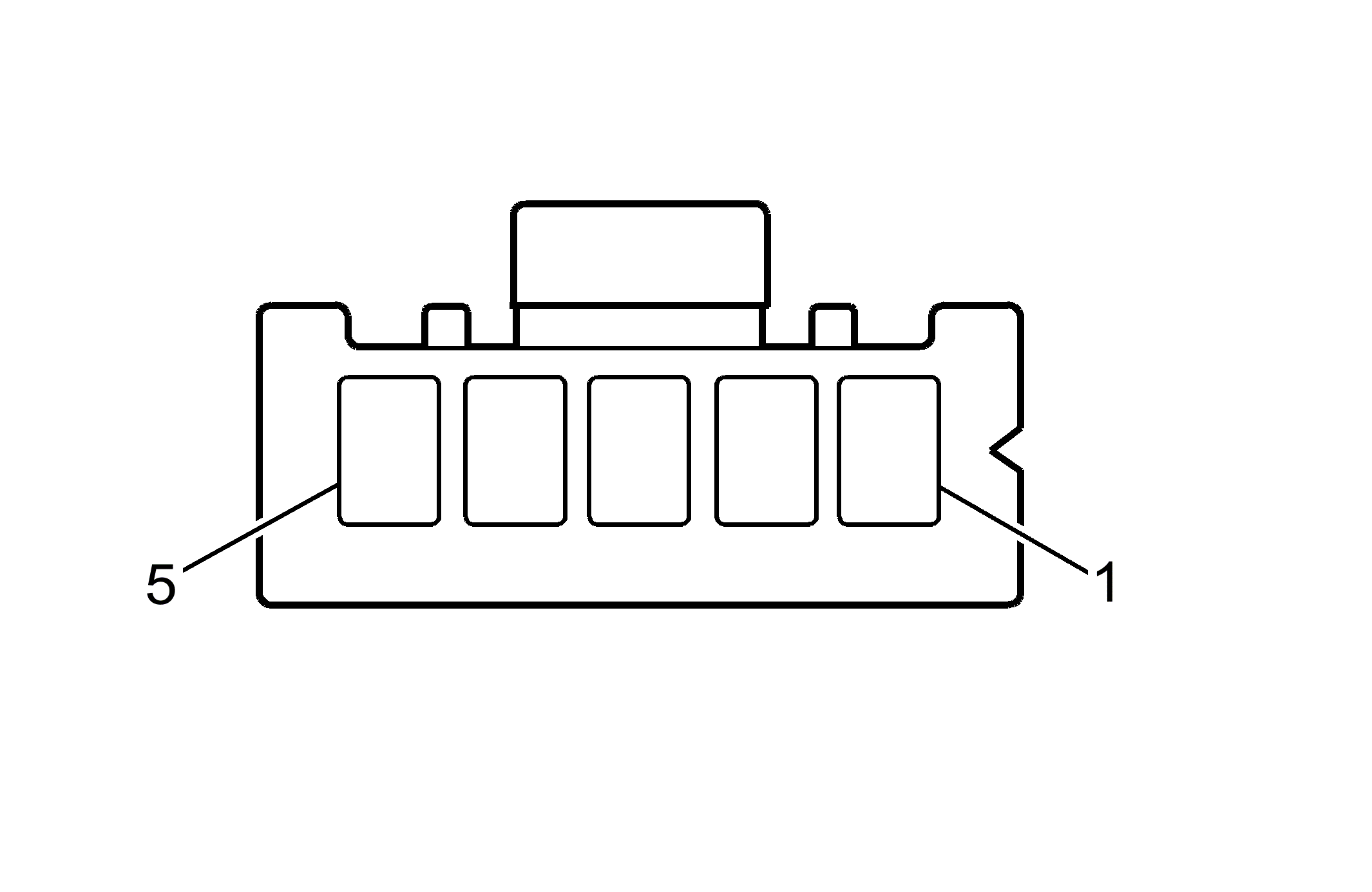

Fig 1: Connector End View Headlamp Control Module - Right High Beam (W49)

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 GY	-	Right Headlamp High Beam Voltage
2	0.35 BK	-	Ground
3	-	-	Not Used
4	0.35 BK	-	Ground
5	0.35 GY	-	Right Headlamp High Beam Voltage

Connector Part Information

Harness Type: Right Headlamp
OEM Connector: XARP-05V
Service Connector: Pending
Description: 5-Way F XA Series (BK)

Terminal Part Information

Terminated Lead: Service by Connector Assembly - XARP-05V
Release Tool: Not Available
Diagnostic Test Probe: Not Available
Terminal/Tray: Not Available
Core/Insulation Crimp: Not Available
